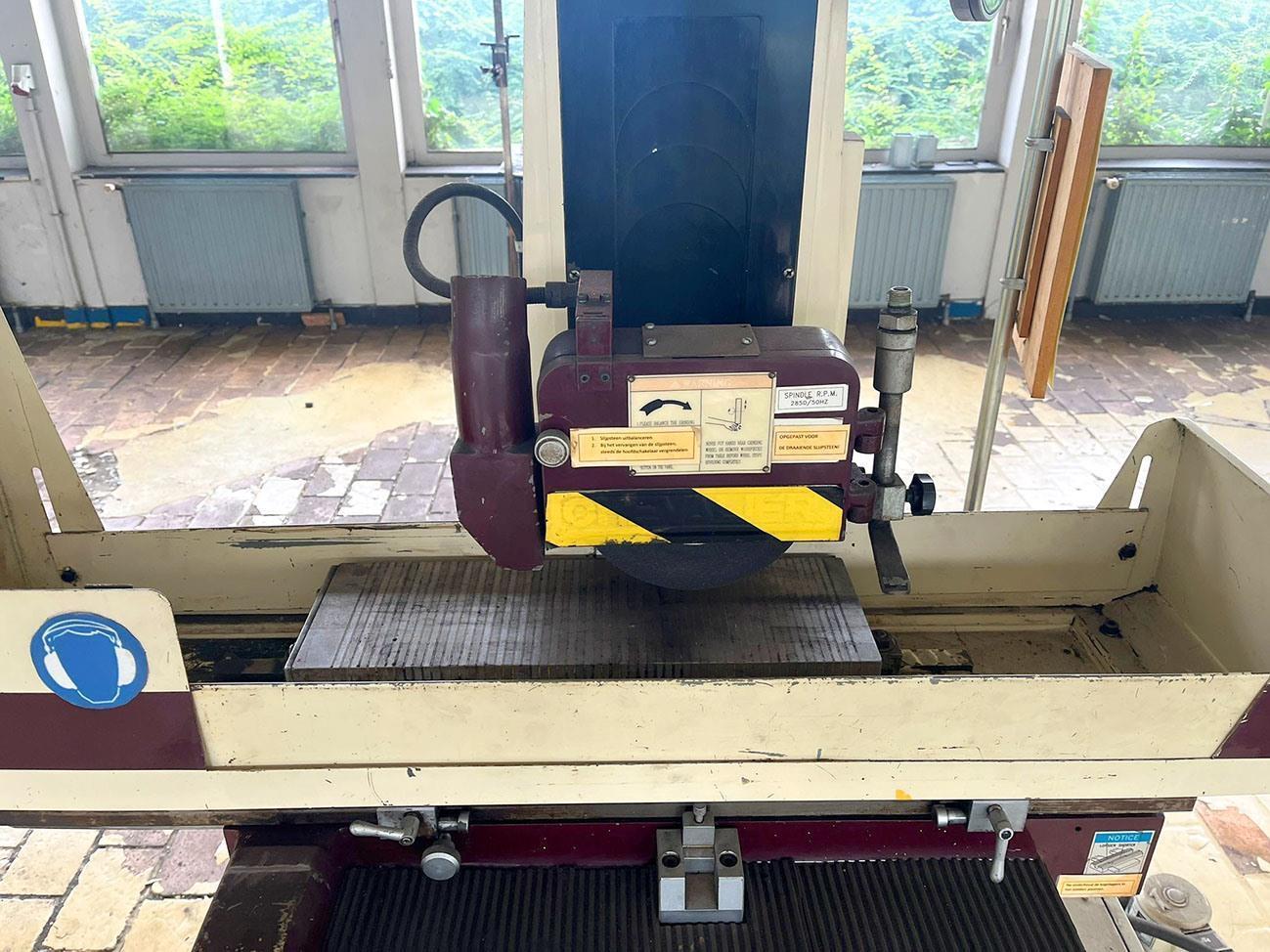

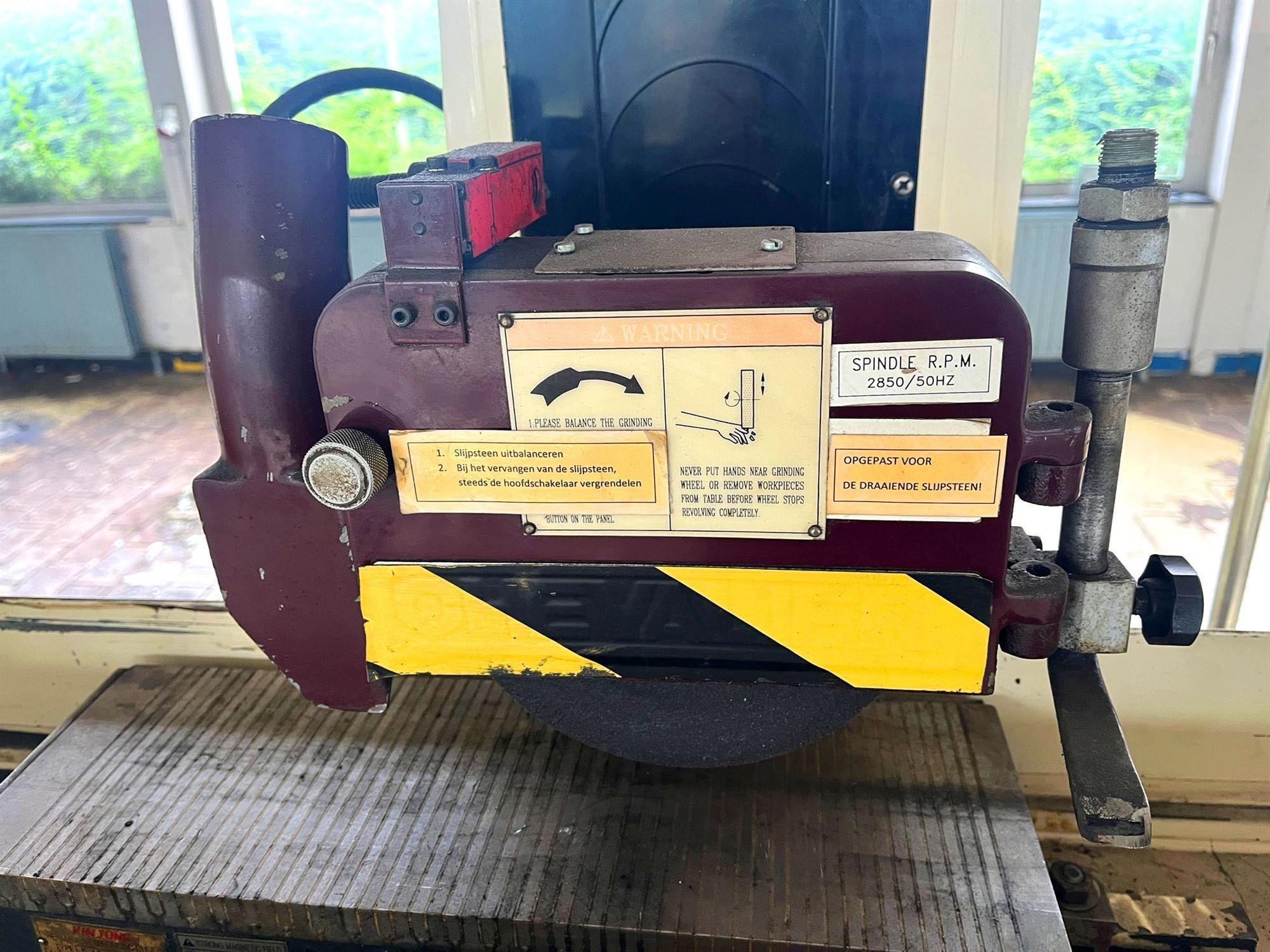

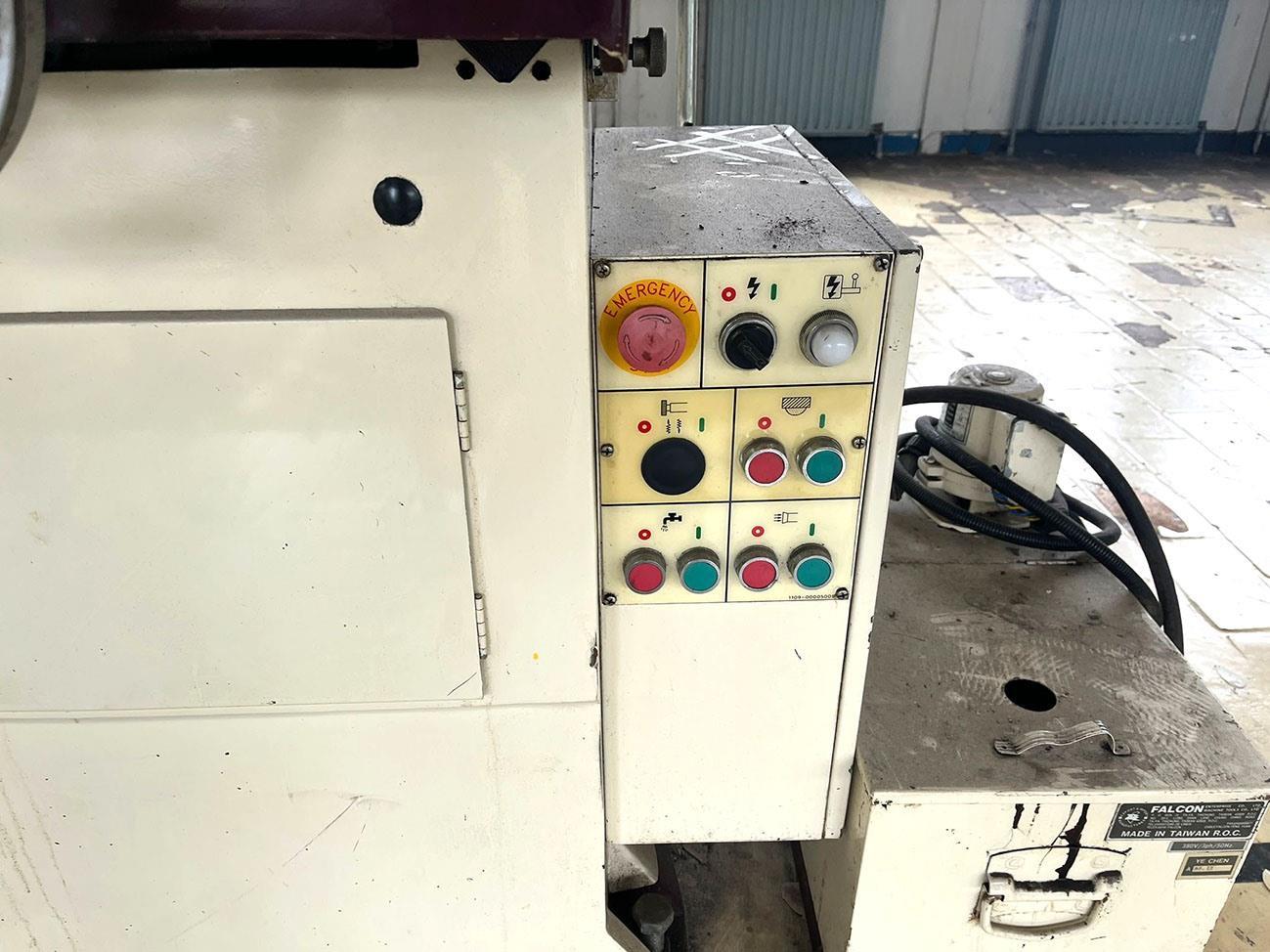

Rectificadoras planas con husillo horizontal Chevalier FSG-618M

Name: Chevalier FSG-618M
Brand: Chevalier
SKU: G.02 15930

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Worklength with magnetic table457 mm
Grindingwidth152 mm
Dimensions of the table460 x 150 mm
Distance between table -- spindlecentre450 mm
Max dia grindingstoneØ 205 × 12.7 × Ø31.75 mm
Spindlespeeds2850 rpm
Motorpower1,5 kW
Length L -- R1900 mm
Depth Fw -- Bw1400 mm
Height2130 mm
Weight674 kg

Información adicional

Tipo/Modelo: FSG-618M
Numéro stock: G.02 15930
Categoría principal: [G] Rectificadoras
Subcategoría: [G.02] Rectificadoras planas con husillo horizontal
Marca: Chevalier

» Solicitar un presupuesto personalizado

Numéro stock: G.02 15930

Descargar todas las imágenes en ZIP
