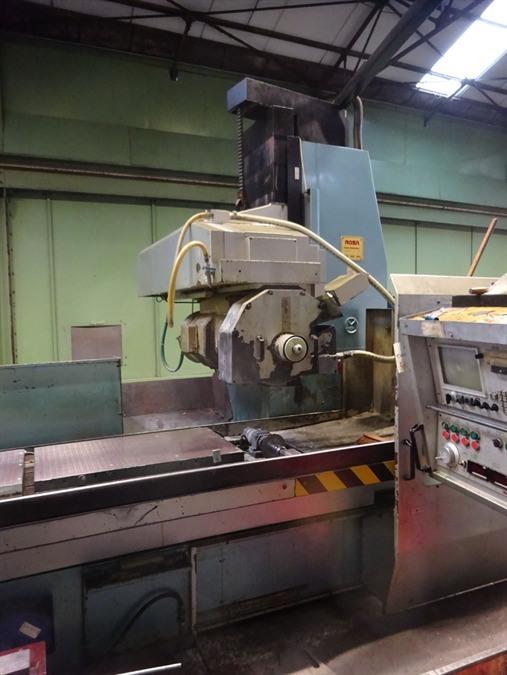

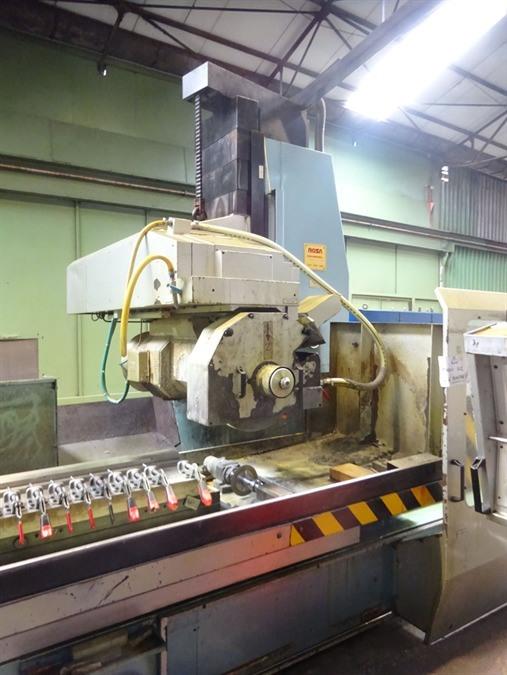

Rectificadoras planas con husillo horizontal Rosa PR40 - 4200 mm CNC

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Worklenth without magnetic table4250 mm
Grindingwidth950 mm
Longitudinal travel X-axis (autom.)4400 mm
Cross-travel Y-axis (autom.)850 mm
Travel Z-axis (autom.)700 mm
Dimensions magnetic table 4100 x 700 mm
Distance between table -- spindlecentre925 mm
Max dia grindingstonedia 450 x 30 mm
Motorpower22 kW
Length L -- R11 800 mm
Depth Fw -- Bw3800 mm
Height3750 mm
Weight22 ton
Cooling systemyes

Información adicional

Profile grinder with full CNC control
Length: 4200 mm

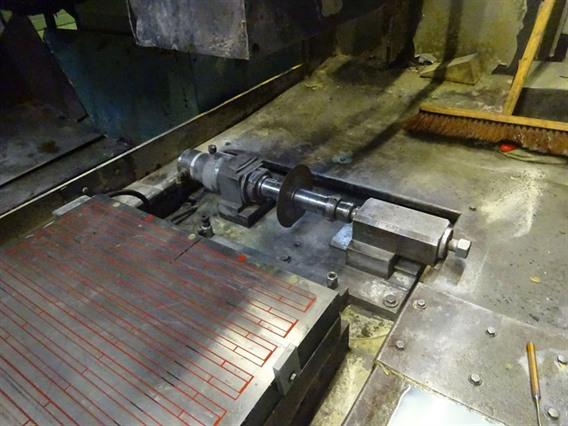

Automatic profile dressing
Tipo/Modelo: PR40 - 4200 mm CNC
Numéro stock: G.02 9222
Categoría principal: [G] Rectificadoras
Subcategoría: [G.02] Rectificadoras planas con husillo horizontal
Marca: Rosa

» Solicitar un presupuesto personalizado

Numéro stock: G.02 9222

Ver video de la maquinaria

Descargar todas las imágenes en ZIP
