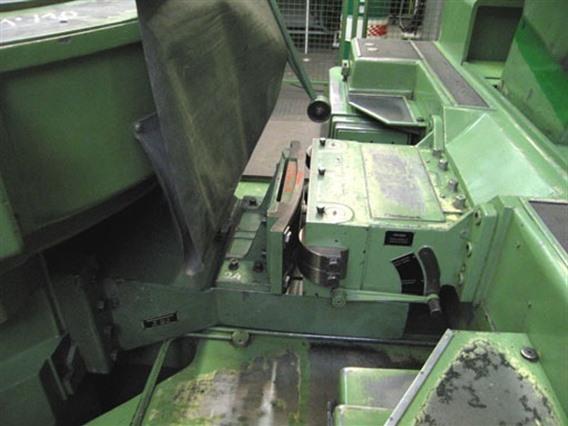

Rectifieuses de dentures Maag Gear Grinder CNC
Produit de sortie
Information technique
- Module max.40
- Dia max.3600 mm
- Poids54000 kg
Informations complémentaires
- Type: SHS 360
5-axis Gear grinding machine
- CNC Control:Telemecanique CPX 37
- PLC for table movements
- Cornercorrection
- Vertical moving head.
- Max. head dia : 3600 mm
- Min. head dia : 1200 mm
- Table Diameter: 1710 mm
- Generation stroke: 390 mm
- Slide stroke: 1315 mm
- Minimum Qty Teeth: 100 Maximum Qty Teeth: 600
- Minimun modules: 3.5
- Maximum modules: 40 Helix
- Angle: 0° to 30°
- Maximum load on table: 25Ton
- Drives + motors: Indramat.
- Precision Quality: 0.005mm/3500 mm or 8/100sec.
- Type/Modèle: Gear Grinder CNC
- Numéro de Stock: K.03 3404
- Catégorie principal: [K] Tailleuses d'engrenages
- Subcatégorie: [K.03] Rectifieuses de dentures
- Marque: Maag
