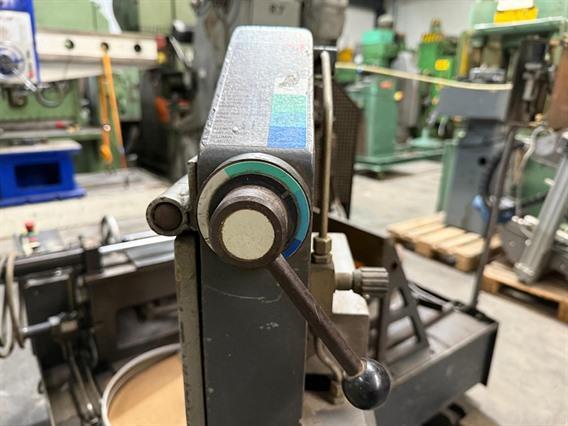

Apparecchiature di taglio a benna Metora MB330
Informazione tecniche
- Depth of throat520 mm
- Max height of workpiece320 mm
- Sawspeed16 > 96 m/min
- Length of band saw4600 x 32 x 1,1 mm
- Power needed1,5 kW
- Length L -- R2200 mm
- Depth Fw -- Bw1400 mm
- Height1400 mm
- Weight780 kg
Informazioni supplementari
Cutting range:
Round 90° and 45° - 320 mm / 30° - 250 mm
Square 90° and 45° - 320 x 320 mm / 30° - 240 x 240 mm
Max. profiles 90° - 500 x 320 mm / 45° - 330 x 320 mm / 30° - 320 x 230 mm
- Saw frame in torsion-free steel construction
- Integrated coolant and hydraulic tank
- Continuous cutting speed regulation on the control panel
- Hydraulic controlled cutting feed adjustable on the control panel
- Automatic hydraulic cutting pressure regulation through band back control
- Carbide-tipped saw band guides combined with ball bearings
- Band tensioning device with control gauge
- Tipo/Modello: MB330
- Numero di magazzino: L.03 15580
- Categoria: [L] Segatrici, limatrici e troncatrici
- Sottocategoria: [L.03] Apparecchiature di taglio a benna
- Il marchio: Metora
Numero di magazzino: L.03 15580
