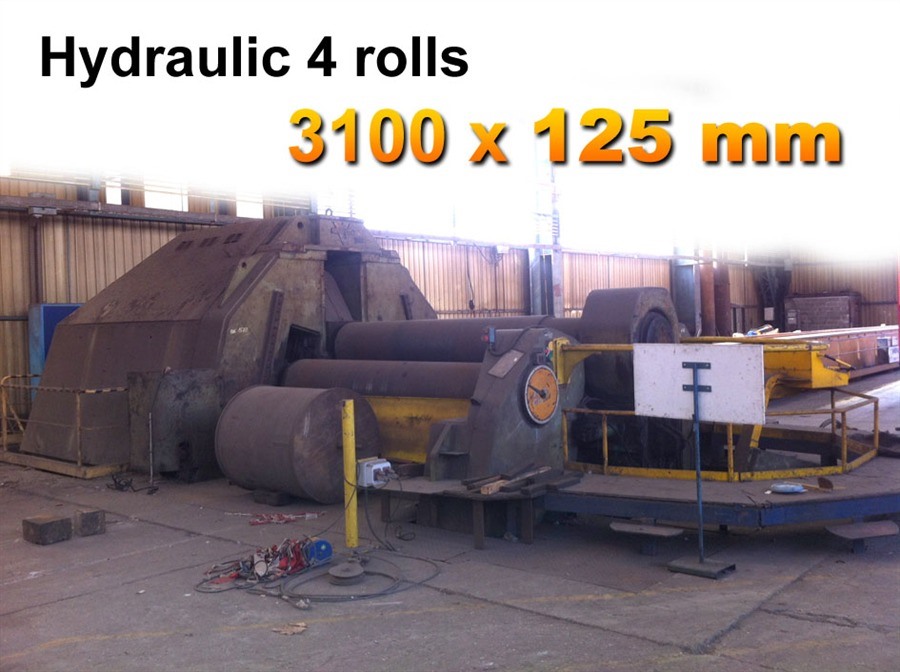

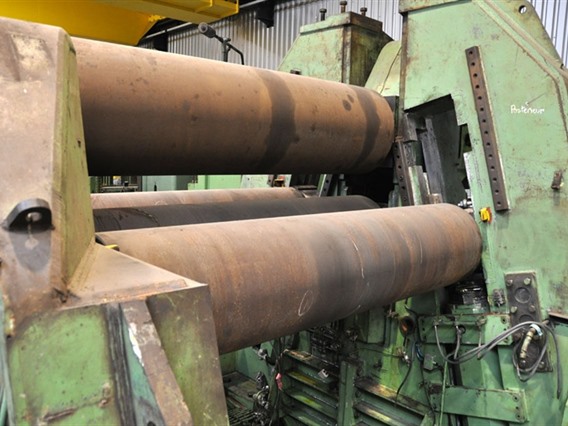

Calandre Verrina 3100 x 125 mm

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Number of rolls4
Roll capacity cold3100 x 125 mm
Roll capacity warm3100 x 180 mm
Typehydraulic
Roll dia upside850 mm
Dia under roll - side rolls850 mm - 720 mm
Driven rolls3 driven rolls
Power needed230 HP total
Length9000 mm
Depth4300 mm
Hight3050 mm
Weight190 ton

Informazioni supplementari

top & side rolls hydraulicaly driven
110 HP on top roll
Extra top roll included, dia 660 mm
Hardened rolls treated with 50-NI-CR-No 7
Clamping force: 1000 ton
Conical bending
Electro mechanical control
Max open between rolls: 205 mm
Foundation needed: 10 500 x 5300 x 2400 mm
Tipo/Modello: 3100 x 125 mm
Numero di magazzino: O.06 8227
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.06] Calandre
Il marchio: Verrina

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.06 8227

Scaricare tutte le foto in ZIP
