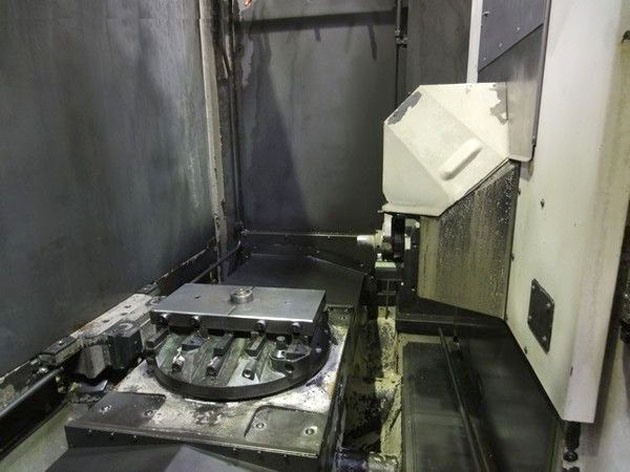

Heller X: 800 - Y: 800 - Z: 710 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

X-axes800 mm
Y-axes800 mm
Z-axes710 mm
Table dimensions4 pallets > 630 x 500 mm
Admission in spindle (ISO)ISO 50
Power on the spindle43 kW (at 40%)
ControlSiemens Sinumerik
Number of axes4 axes simultaneous
Toolstoreyes
Tools52 tools
Frequency 45 > 6000 rpm
Number of pallets 4x
Power principal motor62 kVa
Weight16,2 ton
Cooling-systemyes

Informazioni supplementari

Type: MCP-H 250
AC servo drives
high precision ballscrews
high pressure cooling through spindle
spindle diameter: 100 mm
NC rotary table division: 36 000 x 0,001 degree
Tipo/Modello: X: 800 - Y: 800 - Z: 710 mm CNC
Numero di magazzino: D.02 10572
Categoria: [D] Centri di lavorazione
Sottocategoria: [D.02] Centri di lavorazione orizzontali
Il marchio: Heller

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: D.02 10572
