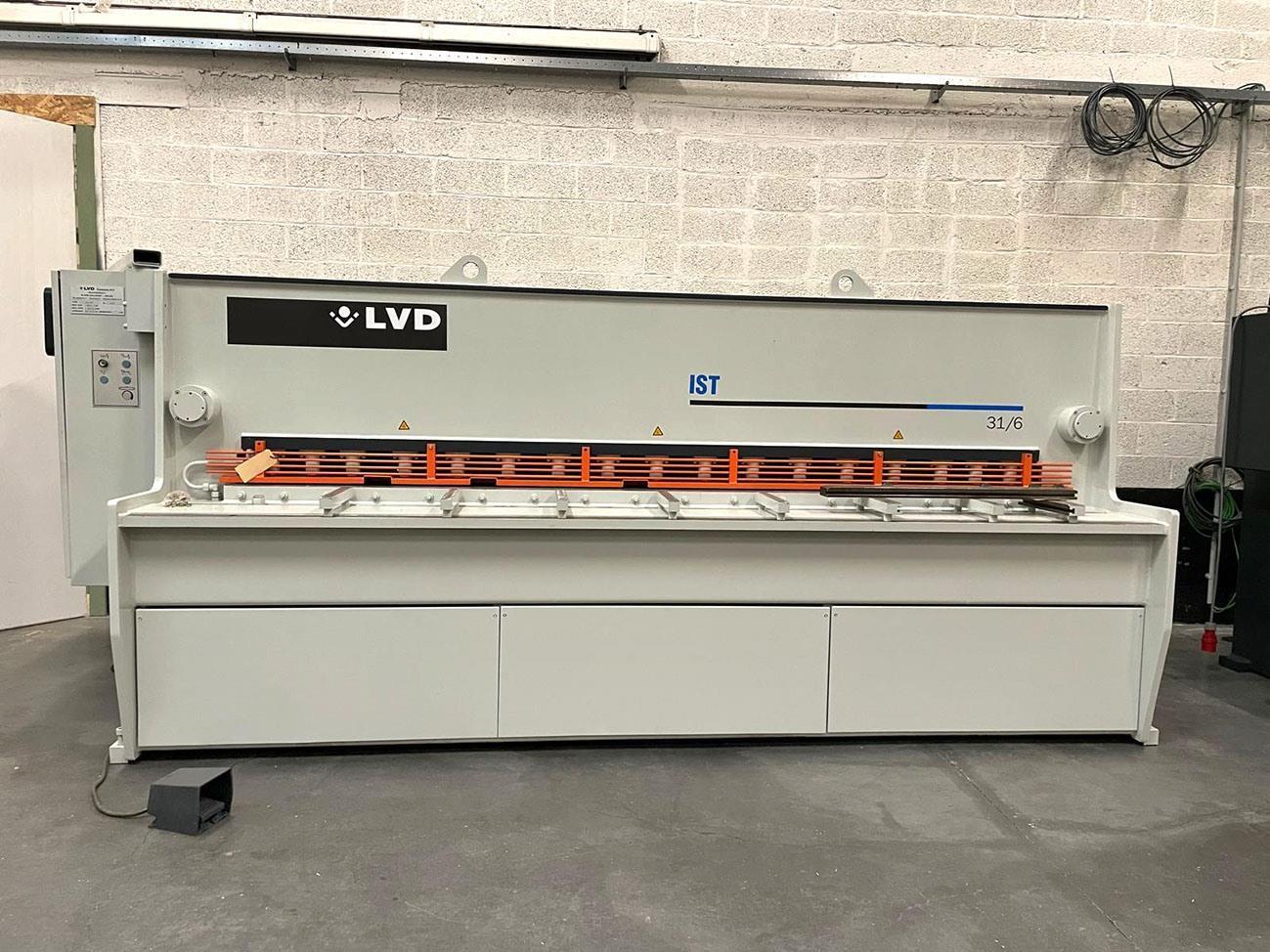

Cesoie a ghigliottina idrauliche LVD IST 3100 x 6 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Cuttinglength3100 mm
Max sheetthickness st 456 mm
Strokes/min16 > 60 str/min
Adjustable cutting device0,05 > 0,6
Backgauge1000 mm
Adjustable cuttingedge0,5° > 2,5°
Electric motor (power)12 kW
Length3700 mm
Depht1800 mm
Height2000 mm
Weight7 ton
High hold systemyes

Informazioni supplementari

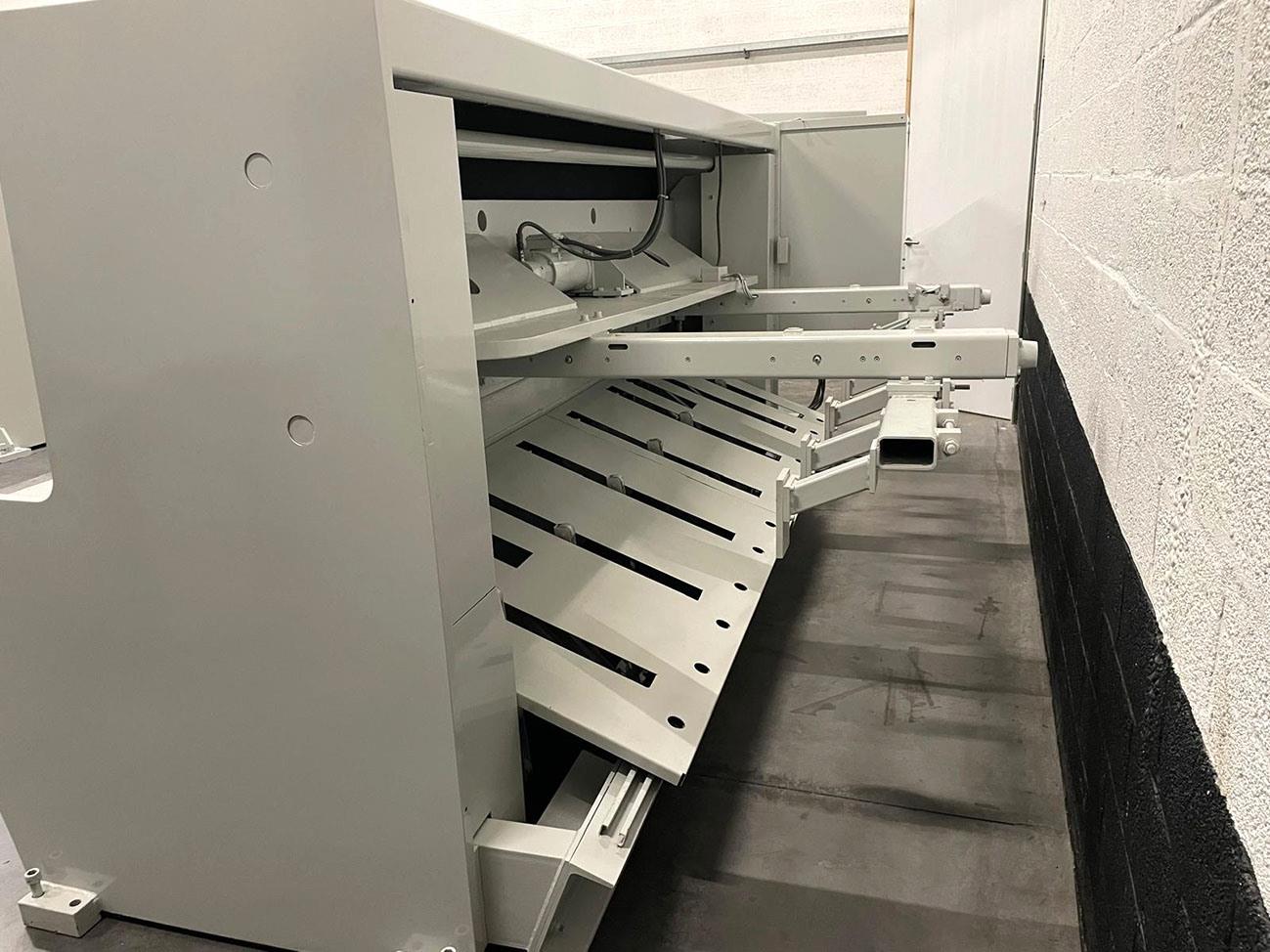

with plate support system
new CNC control:
- Material list of max. 32 materials
- Automatic blade gap and cutting angle setting
- Electro-hydraulic blade gap setting by means of 2 cylinders
- Stroke control adjustment (cutting length)
- Automatic programmable retraction of the back gauge
- Possibility of jog mode on back gauge
- Backlash compensation, delayed sheet release
- (Preset) stroke counter up or down with 0-stop
- USB interface
Tipo/Modello: IST 3100 x 6 mm CNC
Numero di magazzino: P.05 13056
Categoria: [P] Cesoie, punzonatrici universali, linee di taglio trasversale e longitudinale, Lockformer e segatrici a nastro
Sottocategoria: [P.05] Cesoie a ghigliottina idrauliche
Il marchio: LVD
