Dispositivi di centraggio per punzonatura, curvatura e taglio lamiere (linee) Peddinghaus HNC 1000 VDE CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Working modePunching line CNC
ConveyorYes
PUNCHING-UNITYes
Punches4 x 100 Ton
CONVEYORYes
Rated power15 kW

Informazioni supplementari

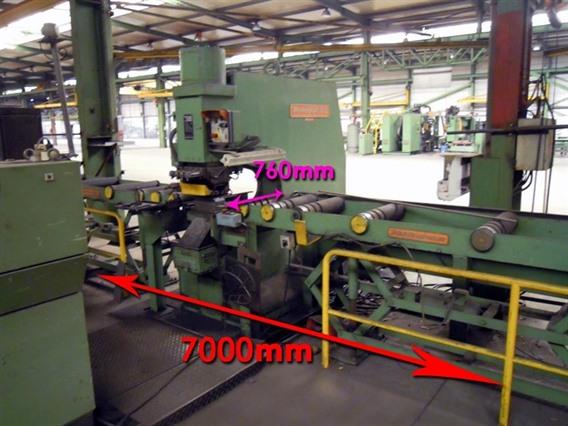

Punching line for flat iron and corners

- CNC controlled (Siemens Sinumerik)

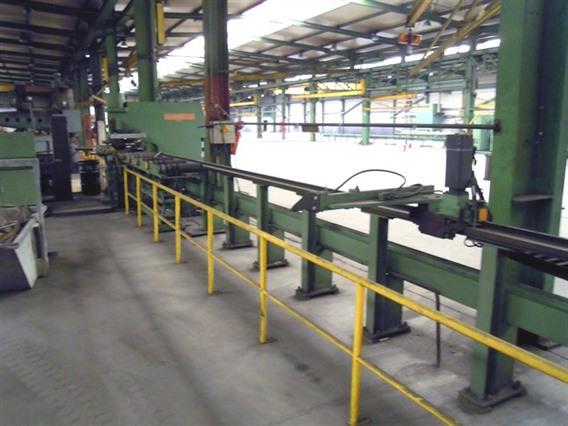

- With CNC automatic length feeding system: 7000 mm

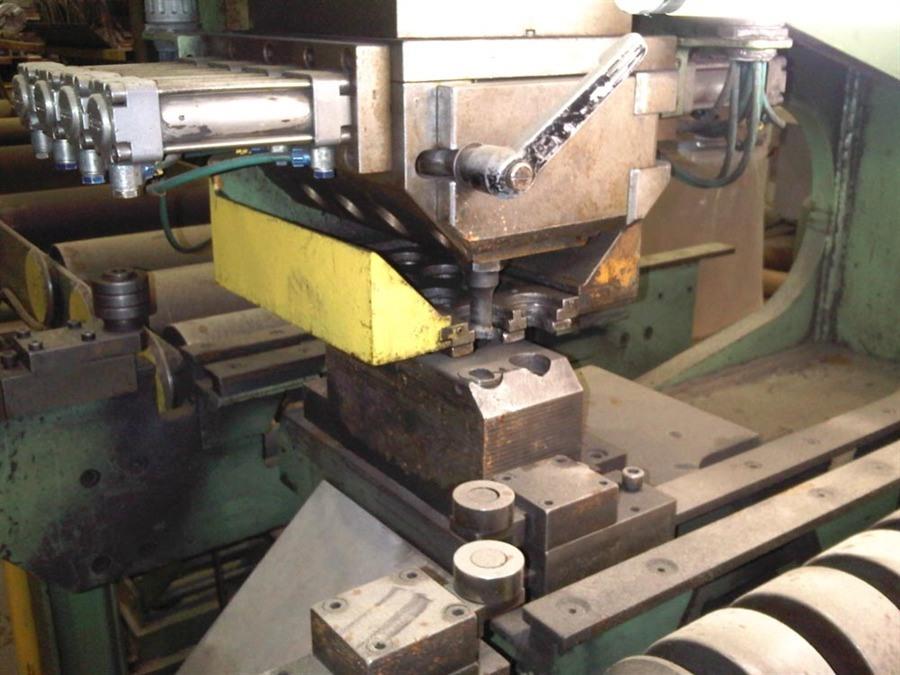

- 4 punch stations @ 100 Ton – Cap: Ø 50 in 20 mm thickness

- Movements: X=7000 mm, Y:760 mm

- Max width: 750 mm

- Max height: 20 mm in flat steel or 240 mm in U / I beams & corners
Tipo/Modello: HNC 1000 VDE CNC
Numero di magazzino: O.20 6316
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.20] Dispositivi di centraggio per punzonatura, curvatura e taglio lamiere (linee)
Il marchio: Peddinghaus

u9_20101222163320930.pdf

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.20 6316

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
