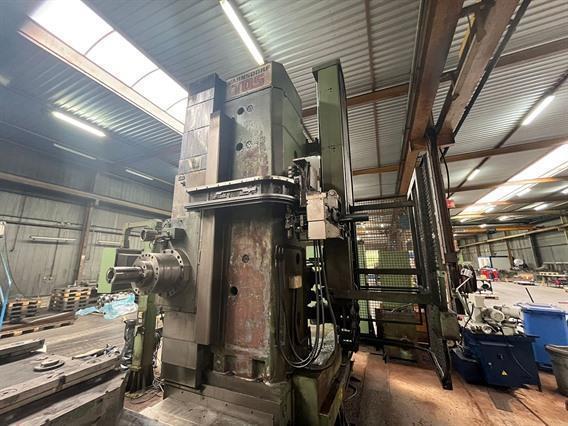

Foratrici a montante fisso Tos WHN 110 X: 2000 - Y: 1250 - Z: 1000 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Spindle Dia125 mm
Spindle boreISO 50
Table dimensions 1400 x 1250 mm
Table longitudinal travel (X-axis)2000 mm
Cross travel Table/colom (Y-axis)1250 mm
Height travel head (Z-axis)1000 mm
Power on spindle37 kW
ControlHeidenhain TNC 426
Power principal motor78 kVa / 82 kW

Informazioni supplementari

dotata di ATC = cambio utensile automatico a 60 posizioni
dotato di AVO = dispositivo per cambio pallet/tavola automatico

Movimento trasversale tavola (X): 2000 mm
Movimento verticale della testata (Y): 1250 mm / 1150 con pallet
Movimento orizzontale del supporto (Z): 1000 mm
Movimento del mandrino (W): 500 mm

con tastatore di misura Heidenhain
Tipo/Modello: WHN 110 X: 2000 - Y: 1250 - Z: 1000 mm CNC
Numero di magazzino: F.01 12899
Categoria: [F] Foratrici e tavole girevoli
Sottocategoria: [F.01] Foratrici a montante fisso
Il marchio: Tos

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: F.01 12899

+++BekijkVideoWerkendeMachine+++

Tos WHN 110 X: 2000 - Y: 1250 - Z: 1000 mm CNC

Scaricare tutte le foto in ZIP
