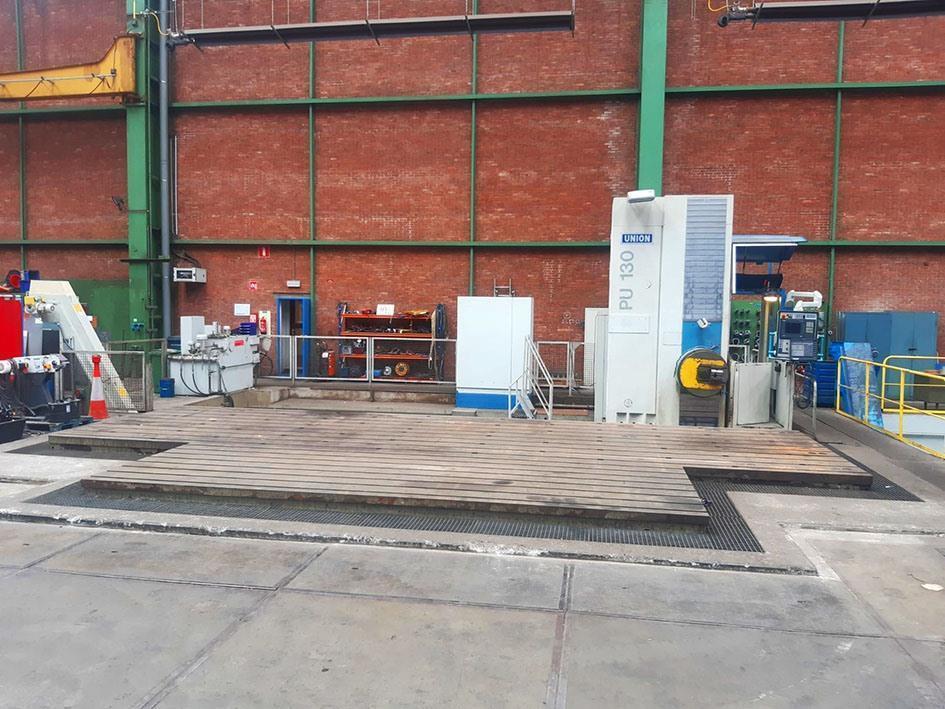

Foratrici a montante mobile Union PU 130 X: 6000 - Y: 2000 - Z: 800 mm CNC
Informazione tecniche
- Longitudinal travel X-axis6000 mm
- Cross traverse Y-axis (table/column)800 mm
- Vertical traverse Z-axis2000 mm
- Spindle traverse W-axis750 mm
- Milling spindle taper (ISO)ISO 50
- Spindle power51 kW
- Dia spindle -- Spindle bore130 mm
- Spindle speed range5 > 3000 rpm
- Digital read-out (1) CNC(2)Siemens Sinumerik 840D
- Weight30 ton
Informazioni supplementari
- CNC floor type borer with facing & boring head
with cooling through spindle 20 bar
5 axes: X / Y / Z / W / U
4 t-slot tables 5000 x 1500 x 300 mm
Chipconveyor
with CNC controlled cross slide (U-axis) of 150 mm - see video below thumbnails:
>> the controlled plan support that is firmly integrated in the spindle system enables the machining of large external and internal contours, ring grooves, cones and also threadcutting. In automatic mode, the controlled cross slide, in combination with the other axes, offers a wide range of technical uses for contour machining. Independent of the built-in plan support, the drilling spindle can be used in the entire speed range of the machine.
- Tipo/Modello: PU 130 X: 6000 - Y: 2000 - Z: 800 mm CNC
- Numero di magazzino: F.02 11280
- Categoria: [F] Foratrici e tavole girevoli
- Sottocategoria: [F.02] Foratrici a montante mobile
- Il marchio: Union
Numero di magazzino: F.02 11280
