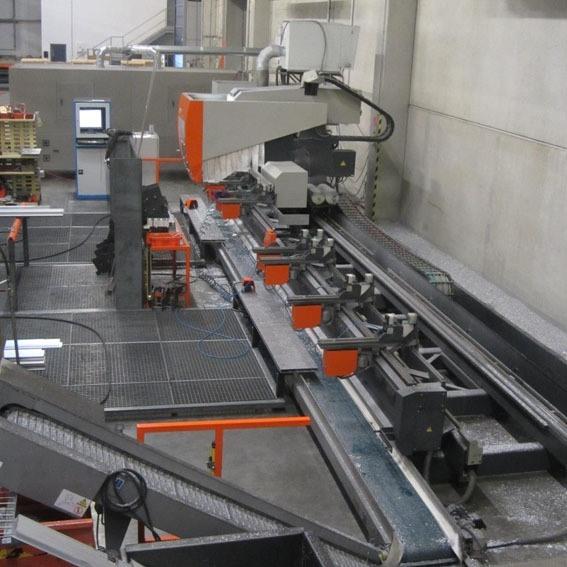

Elumatec SBZ 150 7300 mm CNC
Informazione tecniche
- Longitudinal travel X-axe7800 mm
- Crosstravel Y -axe1000 mm
- Travel Z-axe (Height)650 mm
- Power on spindle15 kW
- Admission in millingheadspindle (ISO)HSK 63
- Max speedrangemax 22000 rpm
Informazioni supplementari
- 5-axis profile machining centre 6-side processing
Processing in aluminium: Drilling, routing, taping, cutting and notching
Processing in steel: Drilling, routing, taping.

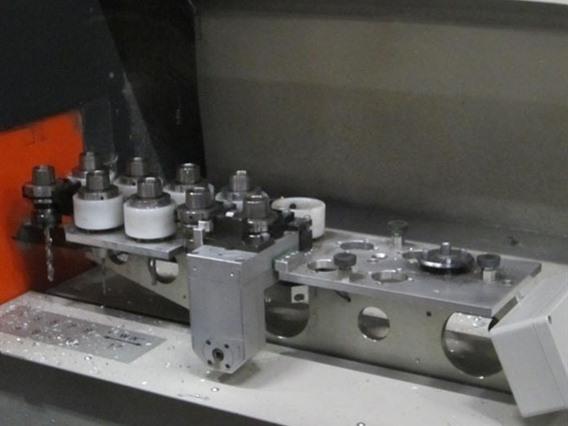

Automatic tool changer with 8 standard tools and 3 special tools Travelling capacity X-axis V.max: 60m/min
Travelling capacity Y-axis V.max: 36m/min
Travelling capacity Z-axis V.max: 36m/min
Pivoting Angels A-axis: 0° - 90° free programmable in 1/10° steps
Pivoting Angels C-axis: 0° - 350° free programmable in 1/10° steps
Angle router head for processing from below.
1 Sawmodule Ø 500 mm automatic clamping automatic movement of the clamps automatic profile measuring system
- Tipo/Modello: 7300 mm CNC
- Numero di magazzino: B.04 8135
- Categoria: [B] Fresatrici
- Sottocategoria: [B.04] Fresatrice a banco con colonna mobile e CNC
- Il marchio: Elumatec SBZ 150
