Emmegi X: 10 000 - Y: 800 - Z: 525 mm
Informazione tecniche
- Longitudinal travel X-axe10 000 mm
- Crosstravel Y -axe800 mm
- Travel Z-axe (Height)525 mm
- Power on spindle10 kW
- Type of millingheadHSK-40E
- Max speedrange24 000 rpm

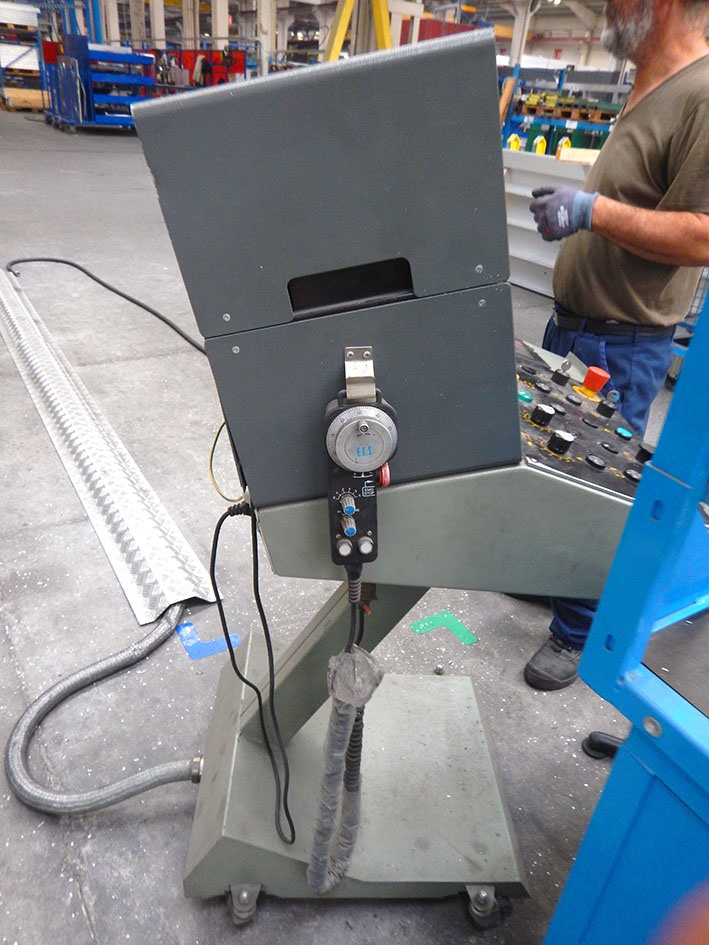

- Controlemmegi
- Length 11 700 mm
- Depth 2000 mm
- Height2200 mm
- Weight9 ton
Informazioni supplementari
5-axis CNC machining centre with mobile gantry structure, designed for milling, drilling, thread-cutting and slotting operations, on bars or workpieces made of aluminium, PVC, light alloys in general and steel.
- 10 pneumatic vices
- table can be divided into two work areas; machine can work on the left side while operator can load/unload on the right side
- Tipo/Modello: X: 10 000 - Y: 800 - Z: 525 mm
- Numero di magazzino: B.04 10825
- Categoria: [B] Fresatrici
- Sottocategoria: [B.04] Fresatrice a banco con colonna mobile e CNC
- Il marchio: Emmegi
