Giddings & Lewis 6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC
Informazione tecniche
- Longitudinal travel X-axe24 000 mm
- Crosstravel Y -axe2133 mm
- Travel Z-axe (Height)4572 mm
- Power on spindle85 HP / 65 kW
- Admission in millingheadspindle (ISO)ISO 60 (dia 254 mm)
- Max speedrange1,5 > 1200 rpm
- ControlHeidenhain
Informazioni supplementari
- Type: 65-P10-CF

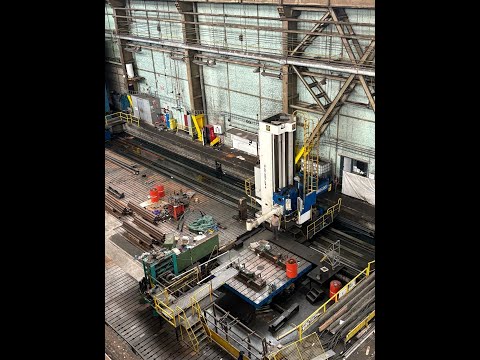

Heavy duty milling & boring machine
Longitudinal X-travel of column: 24 meter
Cross Z-travel of spindle-dia: 254 mm - travel: 2133 mm
incl adaptor ISO-60 to ISO-50
incl many different extensions for spindle & milling heads
Cross W-travel of column: 1219 mm
Vertical Y-travel of column: 4572 mm
Weight of machine + turntable: 200 ton
4 hardened guides
integrated lubrification
Heidenhain CNC-control
CNC Turntable continuous: 4500 x 3500 mm
Max 60 ton on table
Cross travel of table: 2000 mm
Surface area t-slot tables: 25 000 x 6,900 mm
Weight of t-slot tables: 180 ton
- Tipo/Modello: 6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC
- Numero di magazzino: B.04 14151
- Categoria: [B] Fresatrici
- Sottocategoria: [B.04] Fresatrice a banco con colonna mobile e CNC
- Il marchio: Giddings & Lewis
Numero di magazzino: B.04 14151
