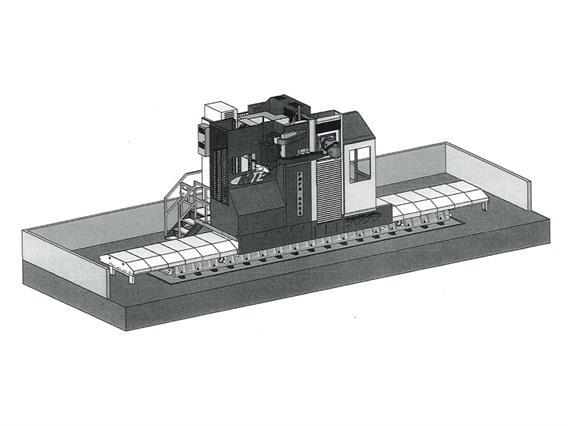

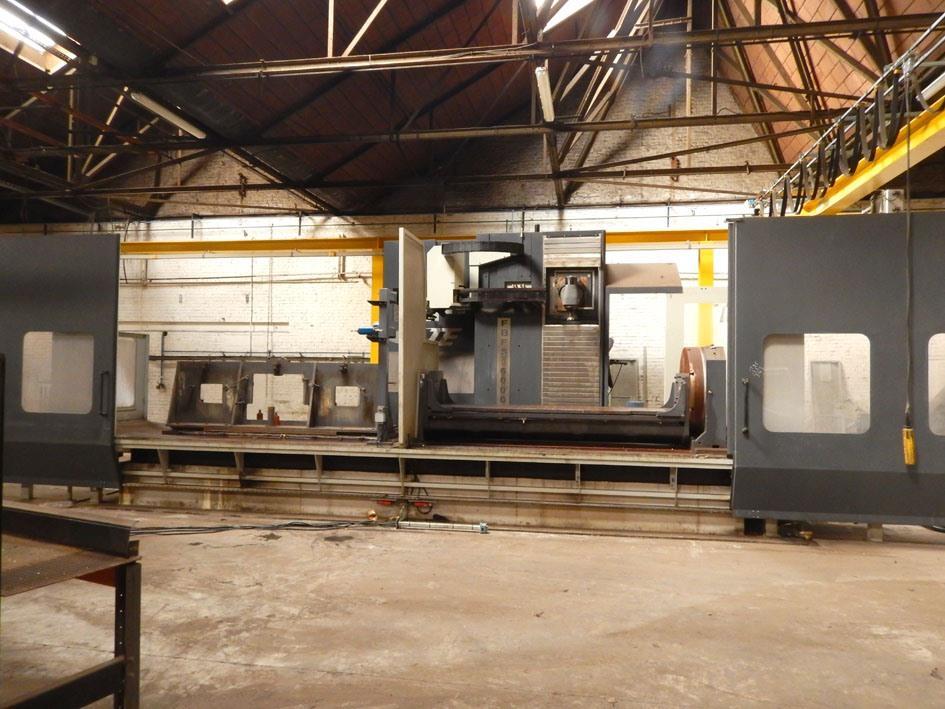

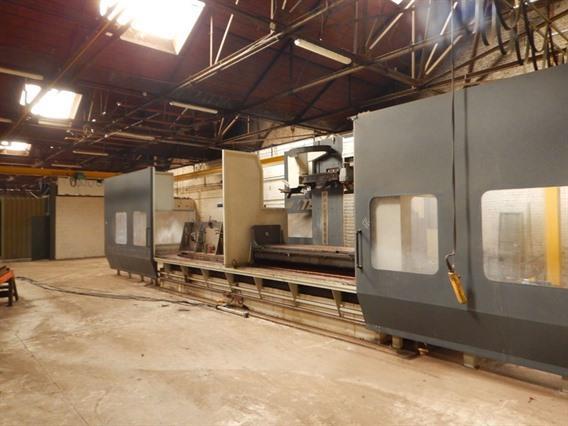

MTE FBF-S 6000 X: 6000 - Y: 1200 - Z: 1500 mm
Informazione tecniche
- Longitudinal travel X-axe6000 mm
- Crosstravel Y -axe1200 mm
- Travel Z-axe (Height)1500 mm
- Power on spindle30 kW
- Admission in millingheadspindle (ISO)ISO 50
- Max speedrange40 > 4000 rpm
- ControlHeidenhain TNC 530
- Length 10 994 mm
- Depth 3417 mm
- Height3870 mm
- Weight23,5 ton
Informazioni supplementari
- FBF-S 6000
4 axis simultaneous X / Y / Z + turntable
high pressure cooling through spindle (20 bar)
4th axis on table (both horizontal & vertical) dia 1000 mm

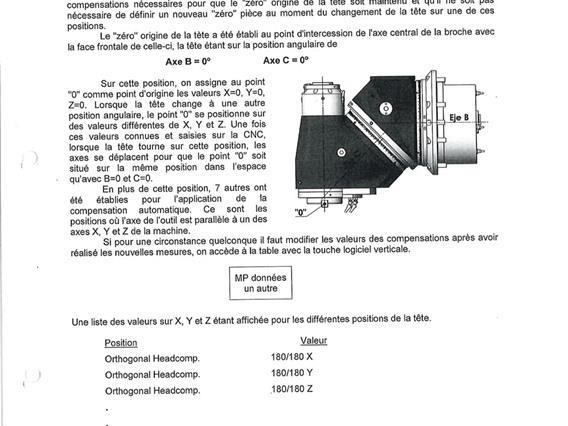

CNC universal milling head, indexing every 2 x 2,5°
Renishaw measuring system
central lubrication system
Toolchanger with 40 positions
T-slot tables Stolle included 7000 x 1500 mm
Chipconveyor
- Tipo/Modello: FBF-S 6000 X: 6000 - Y: 1200 - Z: 1500 mm
- Numero di magazzino: B.04 9744
- Categoria: [B] Fresatrici
- Sottocategoria: [B.04] Fresatrice a banco con colonna mobile e CNC
- Il marchio: MTE
Numero di magazzino: B.04 9744
