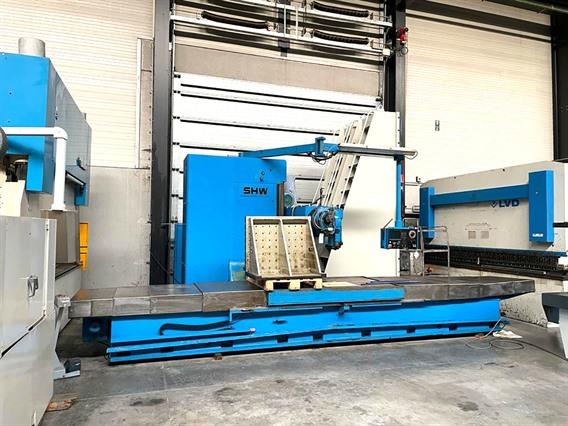

Fresatrici a banco mobile e CNC SHW UF 4 CNC X:3000 - Y:1250 - Z:1400 mm

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Longitudinal travel X-axe3000 mm
Cross travel Y-axe1250 mm
Travel Z-axe1400 mm
Dimensions clamping space- table2000 x 1200 mm
Power on spindle10 kW
Type of millingheaduniversal
Admission in millinghead (ISO)ISO 50
Universal (2x360°)yes
Max quill travel Z'125 mm
Max speedrange14 > 1400 rpm
Control Heidenhain TNC124
Length 7000 mm
Depth3500 mm
Height3100 mm
Weight17 ton

Informazioni supplementari

capacità di carico sul tavolo: 40 tonnellate
Tipo/Modello: UF 4 CNC X:3000 - Y:1250 - Z:1400 mm
Numero di magazzino: B.03 2725
Categoria: [B] Fresatrici
Sottocategoria: [B.03] Fresatrici a banco mobile e CNC
Il marchio: SHW

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: B.03 2725

SHW UF 4 CNC X:3000 - Y:1250 - Z:1400 mm

Scaricare tutte le foto in ZIP
