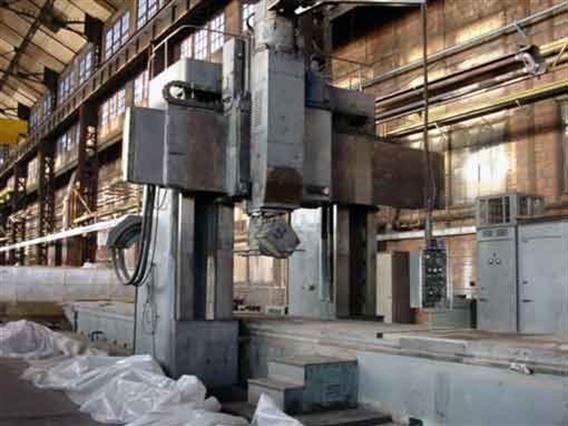

Fresatrici a banco mobile e CNC Stanko-Uljanovsk UFO 649
Informazione tecniche
- Longitudinal travel X-axe10000 mm (2tables together)
- Cross travel Y-axe2400 mm
- Travel Z-axeZ1:1450 mm + Z2:630mm
- Dimensions clamping space- table1250 x 9200 mm
- Max height workpiece1600 mm
- Power on spindle42 kW/moment 540kpn
- Type of millingheadVertical + extra's
- Admission in millinghead (ISO)ISO 60
- Max quill travel Z'Z2:630 mm
- Admission in boring head (ISO)ISO 60
- Max speedrange80 - 630 rpm
- Length 22850 mm
- Depth5200 mm
- Height6000 mm
- Weight90000 kg
Informazioni supplementari
- Fresatrice a portale con tavola mobile. Movimento altezza Z1 (ponte): 1450 mm Movimento altezza Z2 (testa di fresatura Ram): 630 mm Movimento X: 2 Tavoli accoppiati: 10000 mm Tavolo individuale: 4800 mm Peso massimo sul tavolo: 25 tonnellate Inclusa 1 testa di fresatura Winkel 1 x 90° - 28 kW - ISO 50 Inclusa 1 testa di fresatura universale: 2 x 180° - ISO 50 - 13 kW Inclusa 1 testa di fresatura Winkel estesa 2 x 360° - ISO 50 - 13 kW Estensione mandrino: 650 mm
- Tipo/Modello: UFO 649
- Numero di magazzino: B.03 4271
- Categoria: [B] Fresatrici
- Sottocategoria: [B.03] Fresatrici a banco mobile e CNC
- Il marchio: Stanko-Uljanovsk
Numero di magazzino: B.03 4271
