Fresatrici a banco mobile e CNC Zayer X: 2700 - Y: 1200 - Z: 1000 mm CNC
Informazione tecniche
- Longitudinal travel X-axe2700 mm
- Cross travel Y-axe1200 mm
- Travel Z-axe1000 mm
- Dimensions clamping space- table3000 x 1000 mm
- Power on spindle26 kW
- Admission in millinghead (ISO)ISO 50
- Max speedrange1800 rpm

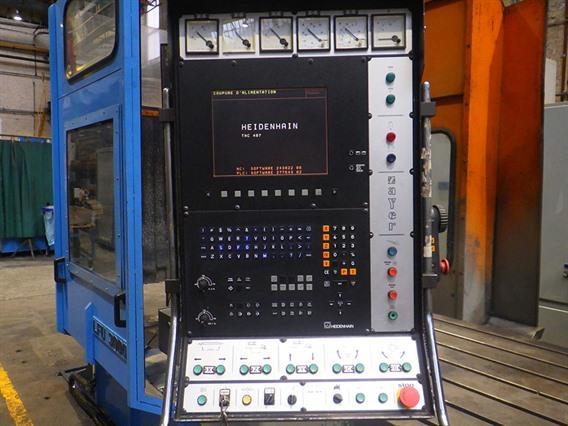

- ControlHeidenhain TNC 407
- Power needed (KVA)68 kVa
- Length 7357 mm
- Depth3400 mm
- Height3107 mm
- Weight15,5 ton

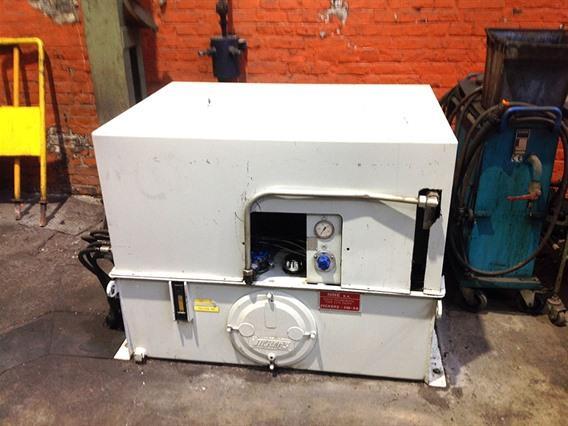

- Cooling systemyes
Informazioni supplementari
- Tipo: LFU 3000
Fresatura simultanea a 5 assi
Testa di fresatura CNC con indicizzazione ortogonale
raffreddamento tramite mandrino
cambio utensile a 30 posizioni

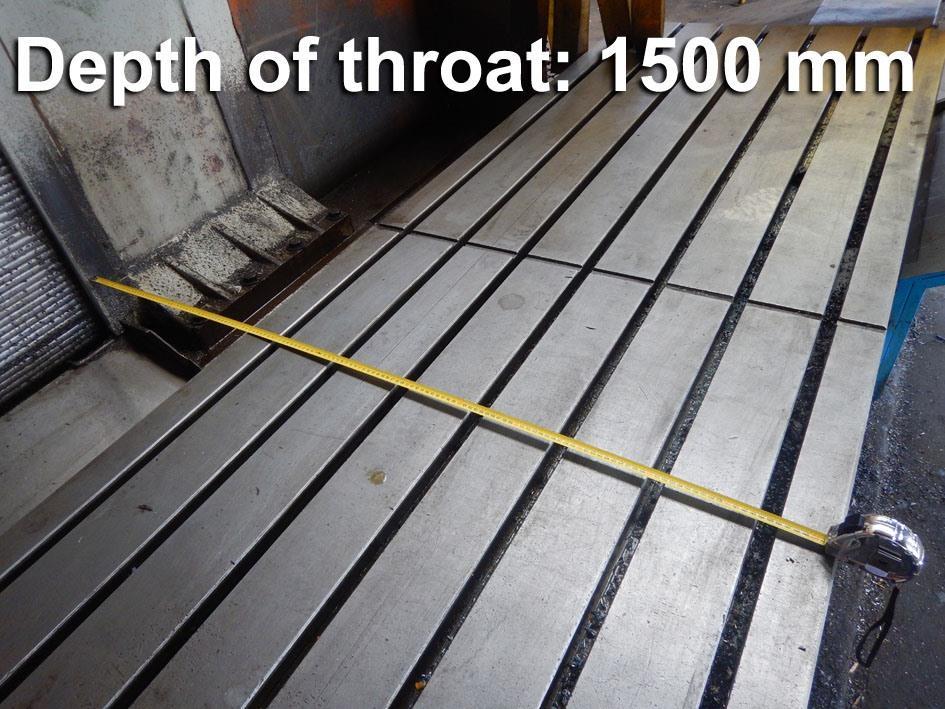

Profondità della gola: 1500 mm
- Tipo/Modello: X: 2700 - Y: 1200 - Z: 1000 mm CNC
- Numero di magazzino: B.03 10951
- Categoria: [B] Fresatrici
- Sottocategoria: [B.03] Fresatrici a banco mobile e CNC
- Il marchio: Zayer
Numero di magazzino: B.03 10951
