Complete Production plant for making seamless rolled rings
Informazioni supplementari

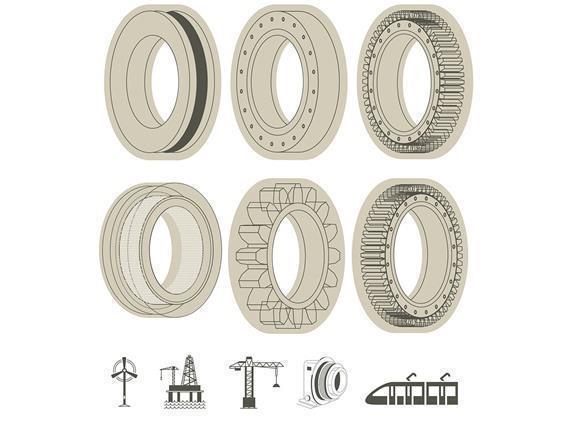

- Applications for such rings: transmissions
/ slewing rings / flanges / bearings / gears / couplings / railway vehicles /
wind turbines
Workforce: 90
production capacity: +- 30 000 ton/year

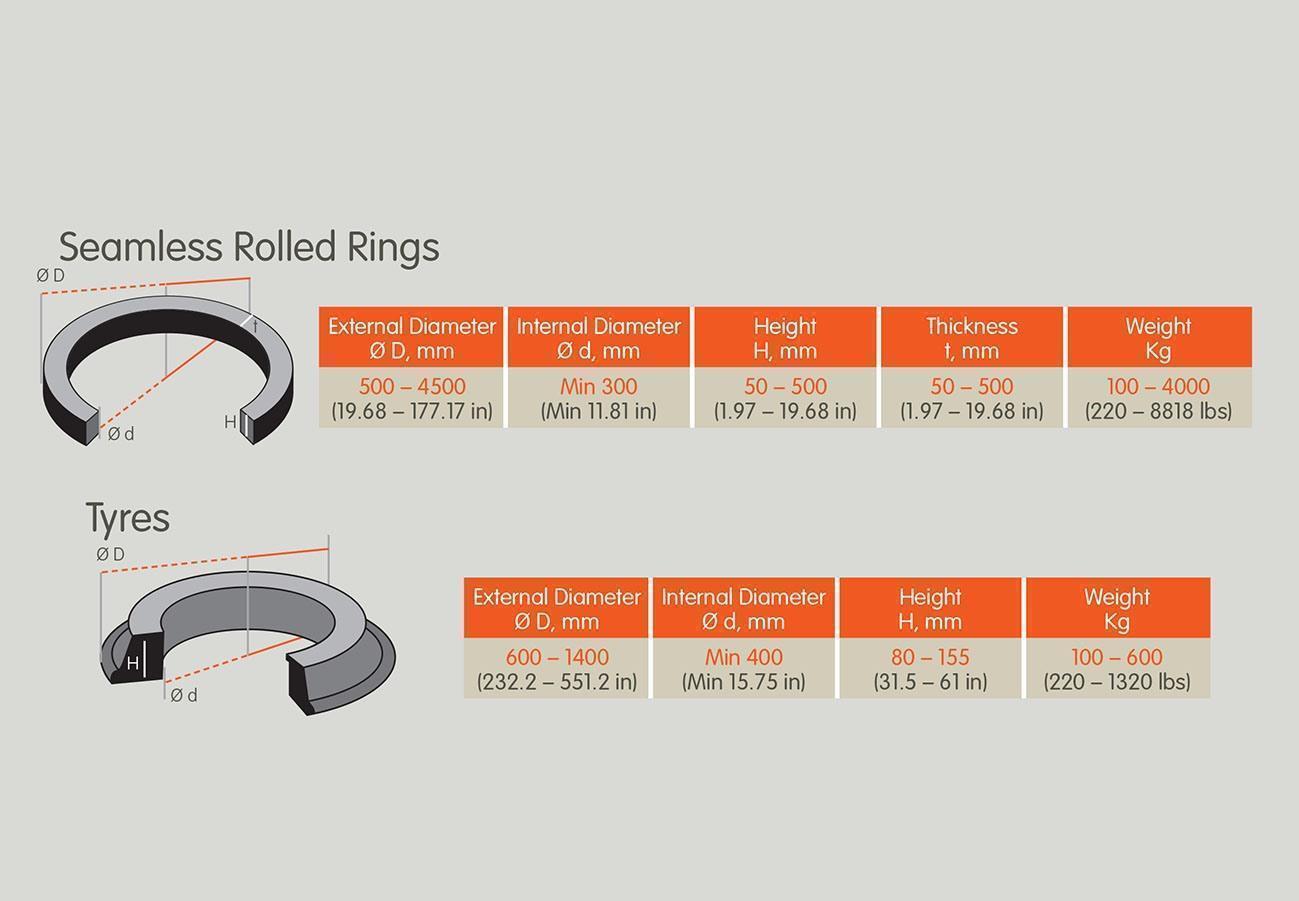

Min/max outside dia: 500 > 4500
mm
Min/max thickness: 50 > 500 mm
Min/max height: 50 > 600 mm
Min/max weight: 100 > 4500 kg
Production process:
1 – sawing of bars/ingots with CNC bandsaw
2 – heating 1250° with forging furnace
3 – upsetting with 4000 ton forging press
4 – ring rolling
5 – heat treatment
6 – machining
Equipment consists out of:
6 heavy duty Friggi & Kasto CNC bandsawing machines
6 forging furnaces
4000 ton SMS forging press
SMS Ring rolling machine
Glama & Dangodienenthal forging manipulators
11 furnaces for different quenching media (air, water, oil, polymer)
- Tipo/Modello: for making seamless rolled rings
- Numero di magazzino: Z.02 13127
- Categoria: [Z] Impianti-fabbriche completi / Veicoli (trasporto), Gru a portale, Bracci / Compressori e generatori / soffiatori aria calda
- Sottocategoria: [Z.02] Industrie/Impianti e stabilimenti completi in vendita
- Il marchio: Complete Production plant
