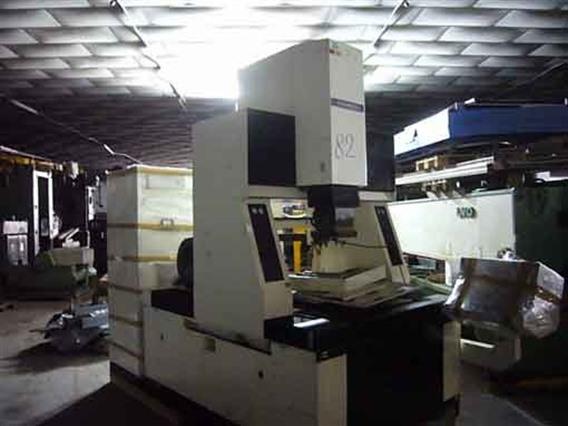

Macchine per elettroerosione a tuffo Ingersoll IG 1000

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Tabledimensions / T slots 900 x 650 mm
Longitidinal displacement X-axes680 mm
Transversal displacement Y -axes790 mm
Vertical displacement Z-axes700 mm
Max weight on table2000 kg
Length L -- R2240 mm
Width Fw -- Bw3100 mm
Height2840 mm
Weight5500 kg
Generator : modelM60 DC
Power380 V- 50Hz

Informazioni supplementari

Generator: M60 DC axis Hirschmann
CNC: Erologic control PLT IV
Tipo/Modello: IG 1000
Numero di magazzino: X.01 3819
Categoria: [X] Macchine a erosione, elettrochimica e ultrasonica
Sottocategoria: [X.01] Macchine per elettroerosione a tuffo
Il marchio: Ingersoll

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: X.01 3819

Scaricare tutte le foto in ZIP
