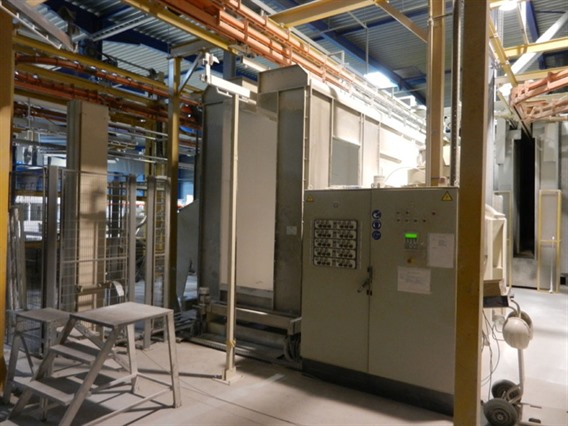

> Sames auto powdercoat installation (25 kVa)
> max weight on rails: 500 kg
> 1 measuring robot: establishes the height of each piece
> 2 powdercoating robots: each with 5 pistols
> Visa manual powder coat with Gema handpistols
Anaphoresis floorplan:
1 - loading & unloading station
2 - jet pre-degreasing tank
3 - degreasing tank
4 - rinse tank 1
5 - rinse tank 2
6 - phosphating tank
7 - rinse tank 3
8 - rinse tank 4
9 - transfer carriage swing
10 - transfer carriage fine line
11 - transfer carriage swing
12 - electrophoresis painting station
12a - flux pumps
12b - catholyte group
12c - painting restoration
12d - DC generator
12e - cooling group
13 - UF rinse tank 1
14 - UF rinse tank 2
15 - jet UF rinse tank
16 - EDP oven
17 - Sames auto powder coating
18 - Visa manual powder coating
19 - powder coat oven
20a - control group 1
20b - control group 2
20c - control group 3
20d - control group 4
21 - recyling demineralizer
