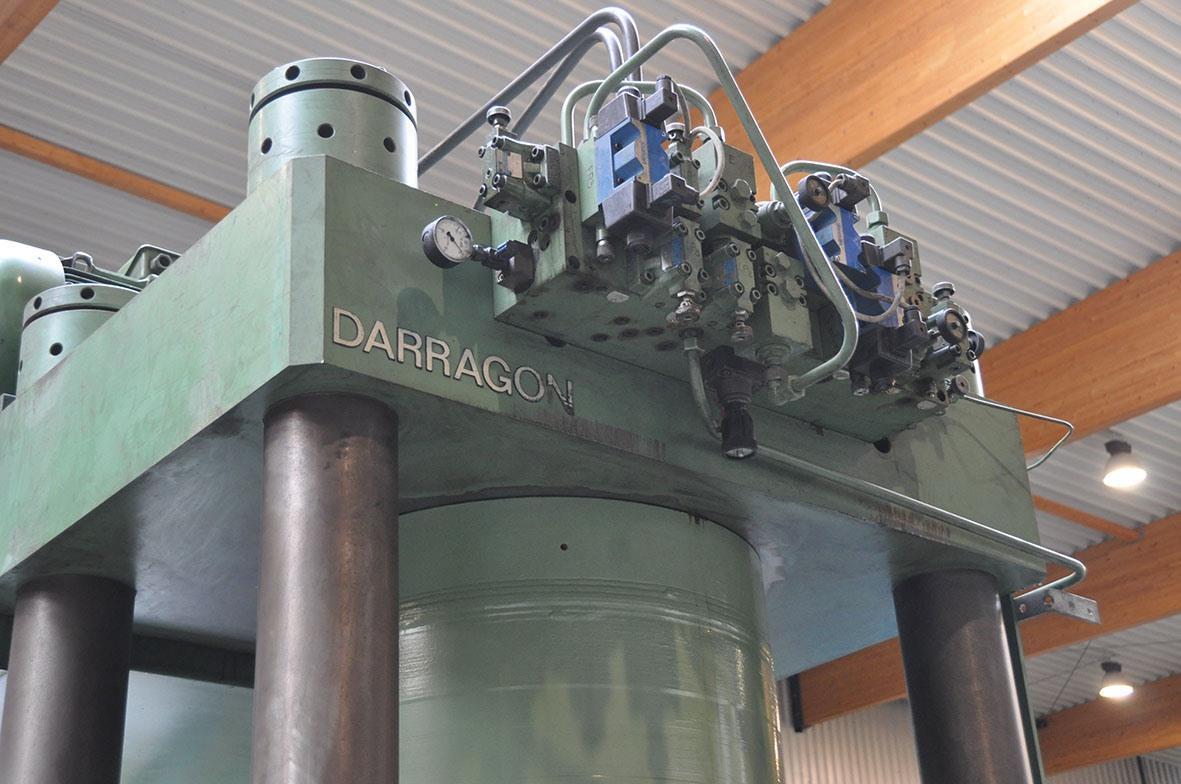

Presse ad azione singola a 4 colonne Darragon 600 ton heated
Informazione tecniche
- Capacity600 ton
- Passage between uprights1020 mm
- Max ram adjustment400 mm
- Distance between table -- ram400 mm
- Table area1000 x 1000 mm
- Length L -- R1590 mm
- Depth Fw -- Bw1150 mm
- Height3700 mm
Informazioni supplementari
Press which can be used for manufacturing seals / (resin) composite parts / compression molding / circular sawblades / abrasive products / pressing from (metal)powder to parts / ...
with heated table + 2 watercooled tables
max 220 - 240° C
Press has been developed to be able to remain under pressure for 24 hours!
Possible to program:
- different temperatures
- holding time of press under pressure
- multiple cycles
Capacity: 600 ton
Passage between uprights: 1020 mm
Stroke: 400 mm
Distance between table -- ram: 400 mm
Table: 1000 x 1000 mm
Length: 1590 mm
Depth: 1150 mm
Height: 3700 mm
Compression press / Grinding wheel press / Vulcanizing press / Elastomer press
Kompressionspresse / Schleifscheiben Presse / Vulkanisierpresse / Elastomer Presse
- Tipo/Modello: 600 ton heated
- Numero di magazzino: M.06 12785
- Categoria: [M] Presse idrauliche
- Sottocategoria: [M.06] Presse ad azione singola a 4 colonne
- Il marchio: Darragon
Numero di magazzino: M.06 12785
