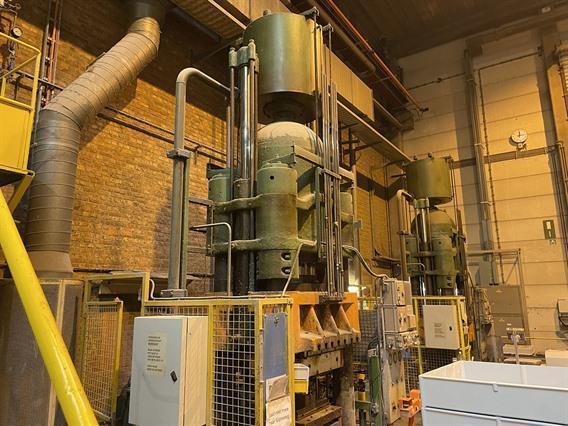

HL 1000 ton 4 column press

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity1000 ton
Passage between uprights1000 mm
Max ram adjustment800 mm
Distance between table -- ram1400 mm
Table area1200 x 1000 mm
Electric motor (power)55 kW
Length L -- R1500 mm
Depth Fw -- Bw1500 mm
Height5500 mm
Weight25 ton

Informazioni supplementari

4 column hydraulic press
high closing speed
ideal for composite projects
press can remain under pressure for a long period of time
one main hydraulic single acting piston (diameter 660 mm)
two smaller pistons to retract the stamp
heating can used as an option (on/off)
is installed on top of ground!
hole in table for counterpressure (stroke 200 mm)
Rexroth hydraulic unit 300 bar operating pressure
Tipo/Modello: 1000 ton 4 column press
Numero di magazzino: M.06 14013
Categoria: [M] Presse idrauliche
Sottocategoria: [M.06] Presse ad azione singola a 4 colonne
Il marchio: HL

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: M.06 14013

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
