HL 1000 ton 4 column press
Informazione tecniche
- Capacity1000 ton
- Passage between uprights1000 mm
- Max ram adjustment800 mm

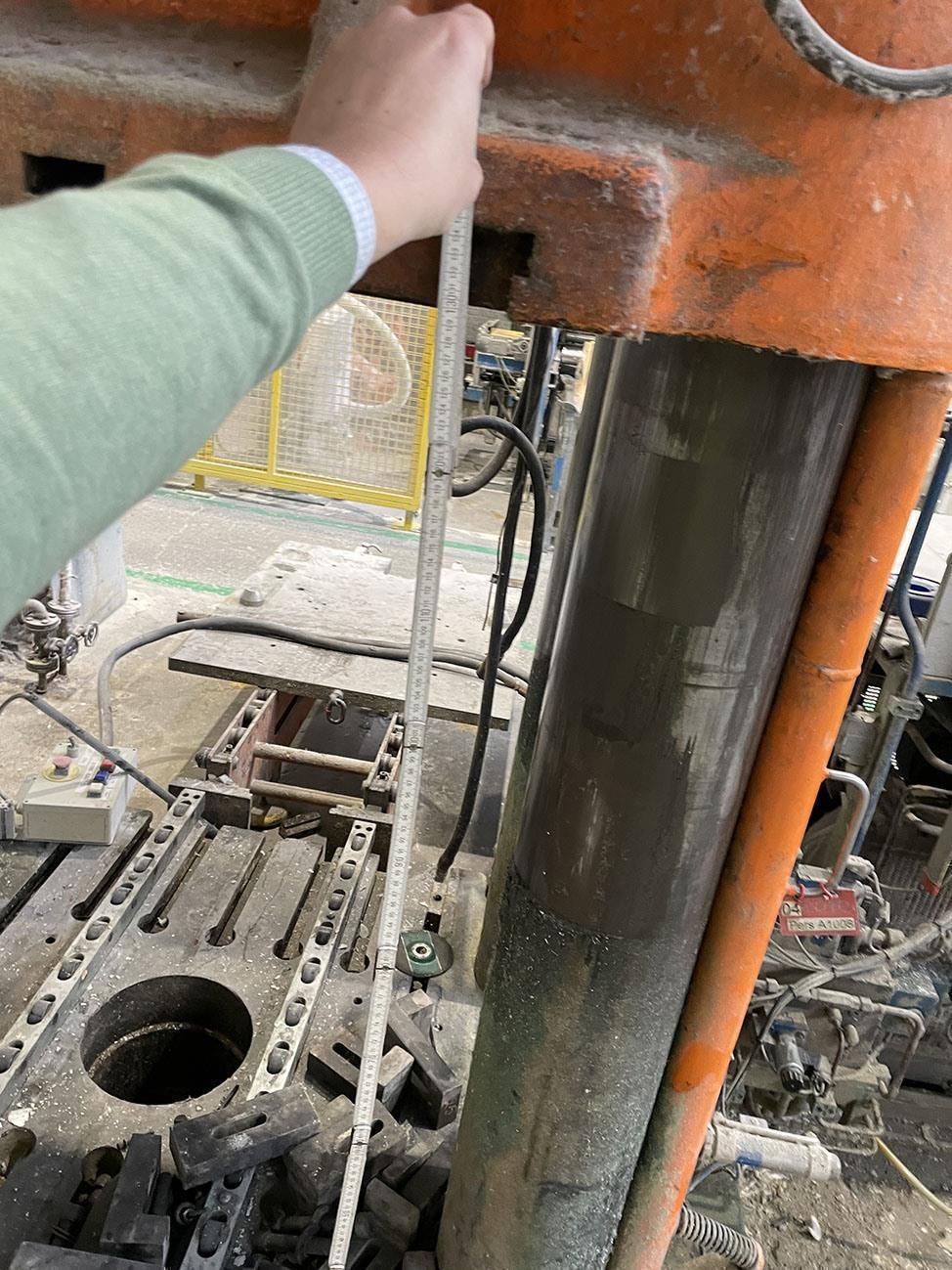

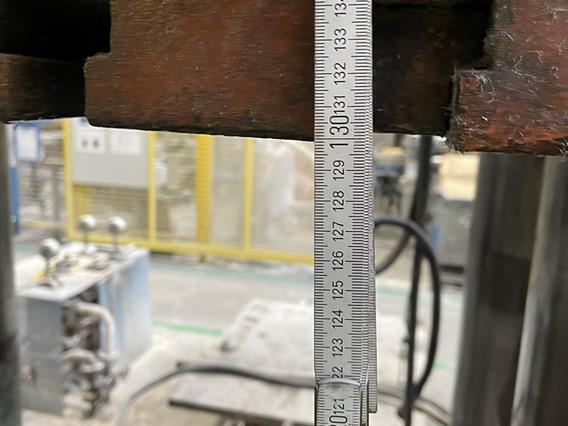

- Distance between table -- ram1400 mm
- Table area1200 x 1000 mm
- Electric motor (power)55 kW
- Length L -- R1500 mm
- Depth Fw -- Bw1500 mm
- Height5500 mm
- Weight25 ton
Informazioni supplementari

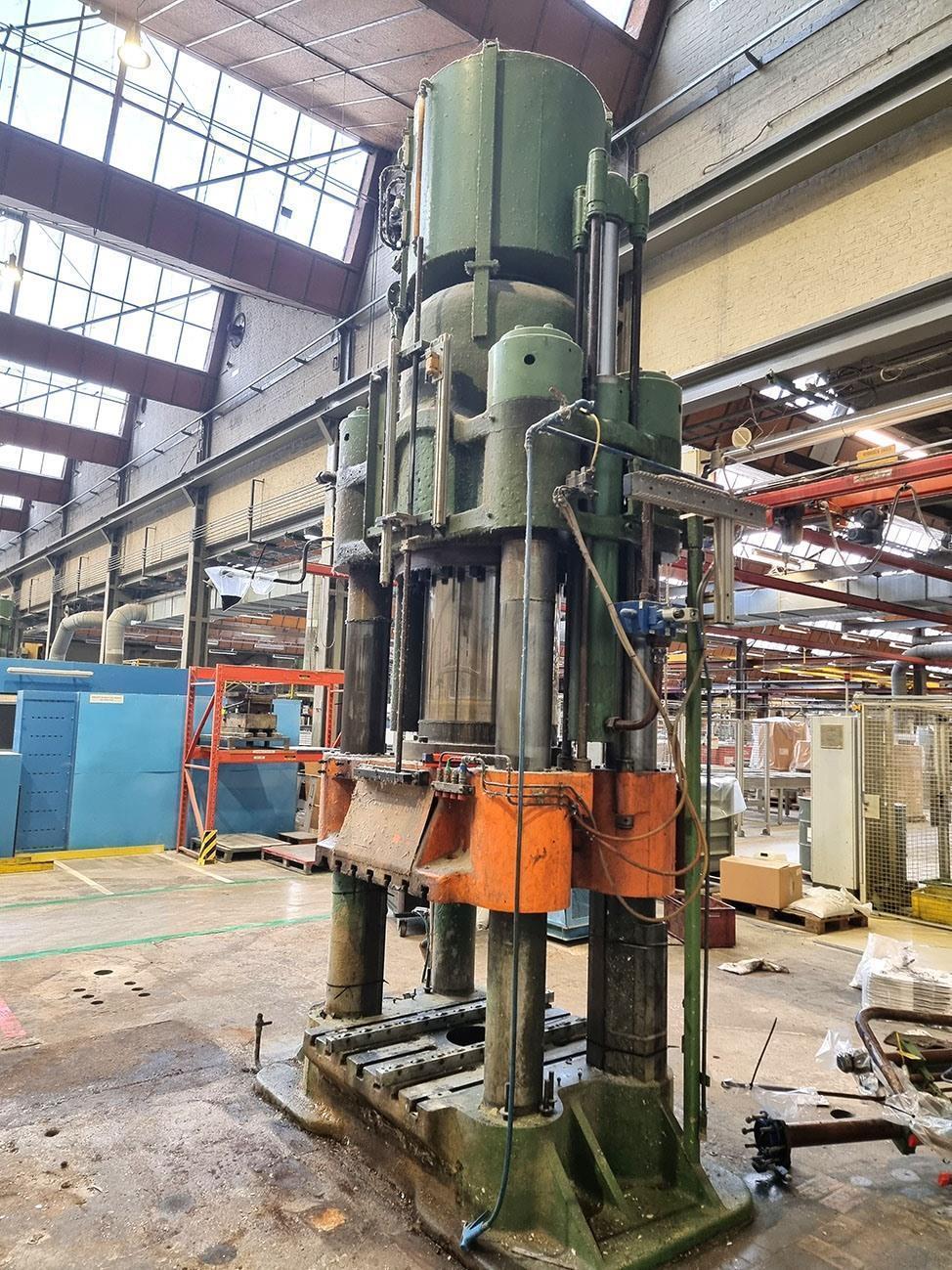

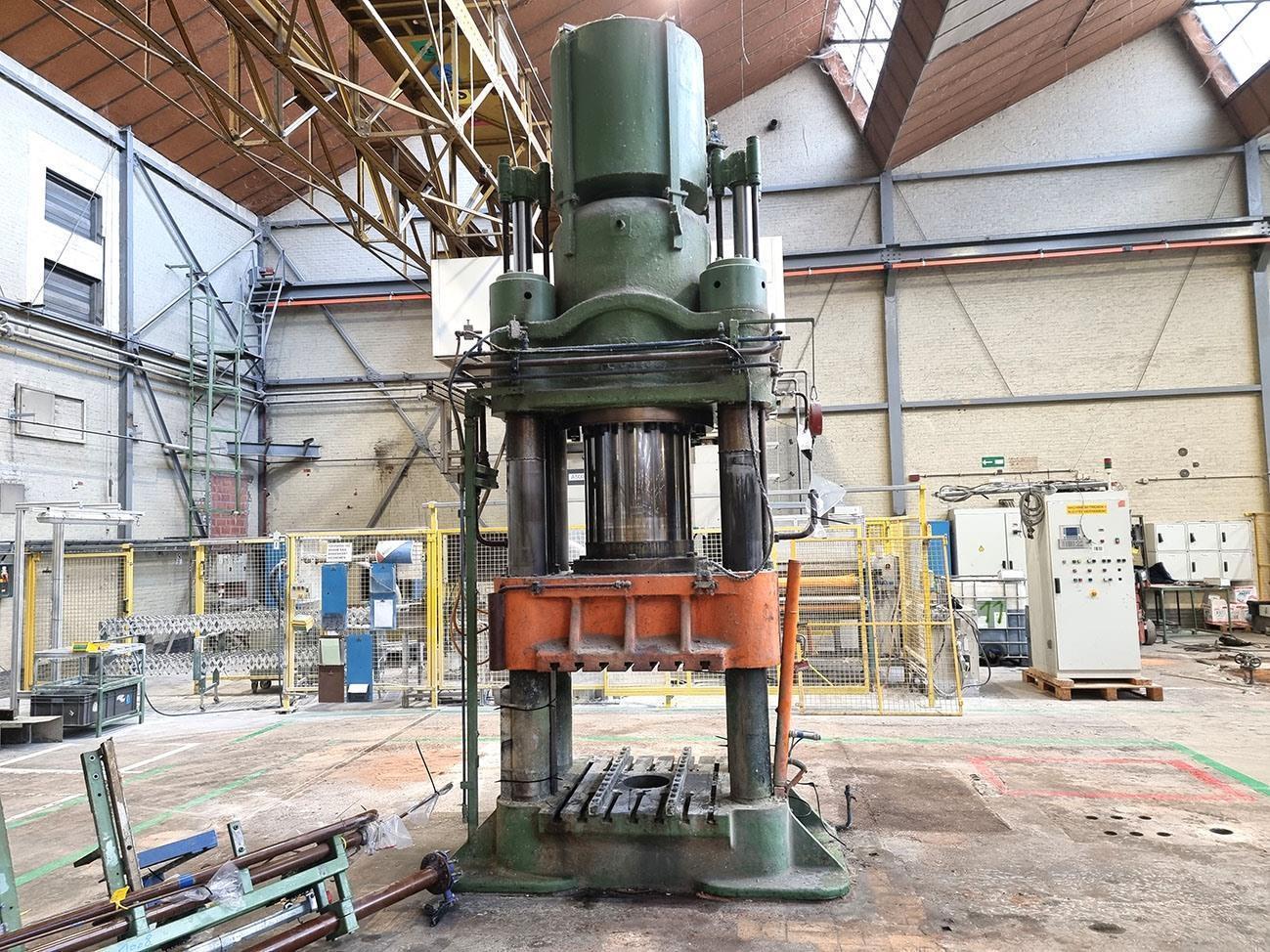

- 4 column hydraulic press
high closing speed
ideal for composite projects
press can remain under pressure for a long period of time

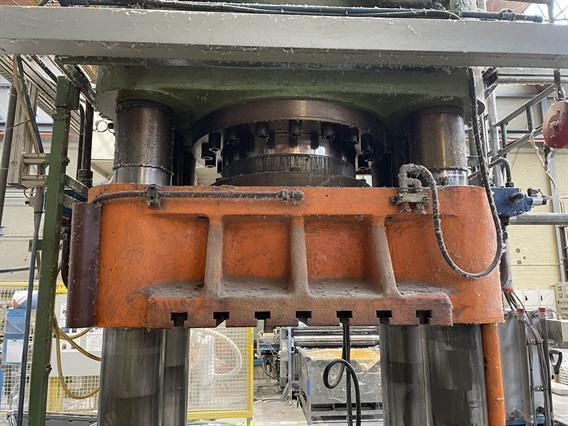

one main hydraulic single acting piston (diameter 660 mm)
two smaller pistons to retract the stamp
heating can used as an option (on/off)
is installed on top of ground!
hole in table for counterpressure (stroke 200 mm)
Rexroth hydraulic unit 300 bar operating pressure
Capacity 1000 ton
Passage between uprights 1000 mm
Max ram adjustment 800 mm
Distance between table -- ram 1400 mm
Table area 1200 x 1000 mm
Electric motor (power) 55 kW
Length 1500 mm
Depth 1500 mm
Height 5500 mm
Weight 25 ton
- Tipo/Modello: 1000 ton 4 column press
- Numero di magazzino: M.06 14018
- Categoria: [M] Presse idrauliche
- Sottocategoria: [M.06] Presse ad azione singola a 4 colonne
- Il marchio: HL
Numero di magazzino: M.06 14018
