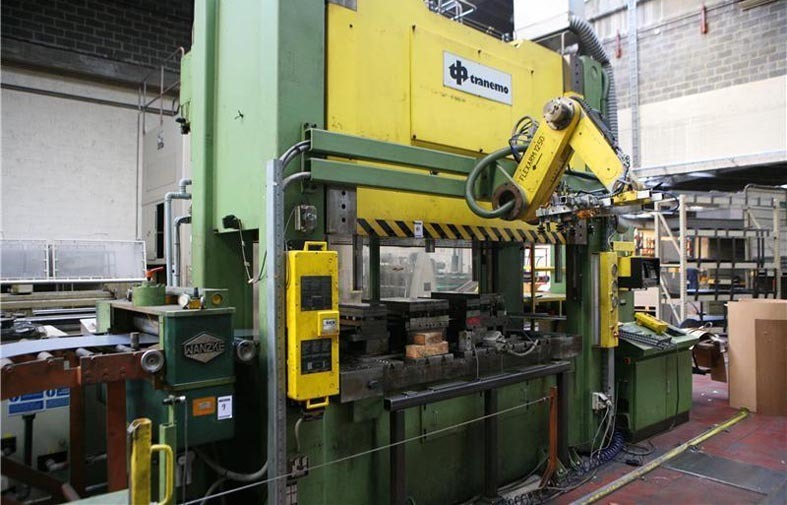

Presse ad azione singola a 4 colonne Tranemo DPA 250-25 CNC
Informazione tecniche
- Capacity250 ton
- Passage between uprights2500 mm
- Max ram adjustment500 mm
- Drawning speed354 mm/sec
- Distance between table -- ram800 mm
- Table area2500 x 1000 mm
- Table height fixed (1) -- sliding (2)1055 mm
- Ram area2500 x 1000 mm
- Electric motor (power)45 kW
- Length L -- R4200 mm
- Depth Fw -- Bw2600 mm
- Height4000 mm
- Weight28 ton
Informazioni supplementari
- 2 axis
speed at 250 ton: 15 strokes/min
speed at 88 ton: 36 strokes/min
between columns long side: 2500 mm
between columns short side: 800 mm
This Tranemo features:
- automatic hydraulic clamping system for the tooling
- table with T-slots
- hydraulic cutting stroke damper
- double acting triple-cylinder in the press ram
- two flexarm 1250 robots for (un)loading
- Tipo/Modello: DPA 250-25 CNC
- Numero di magazzino: M.06 6495
- Categoria: [M] Presse idrauliche
- Sottocategoria: [M.06] Presse ad azione singola a 4 colonne
- Il marchio: Tranemo
Numero di magazzino: M.06 6495
