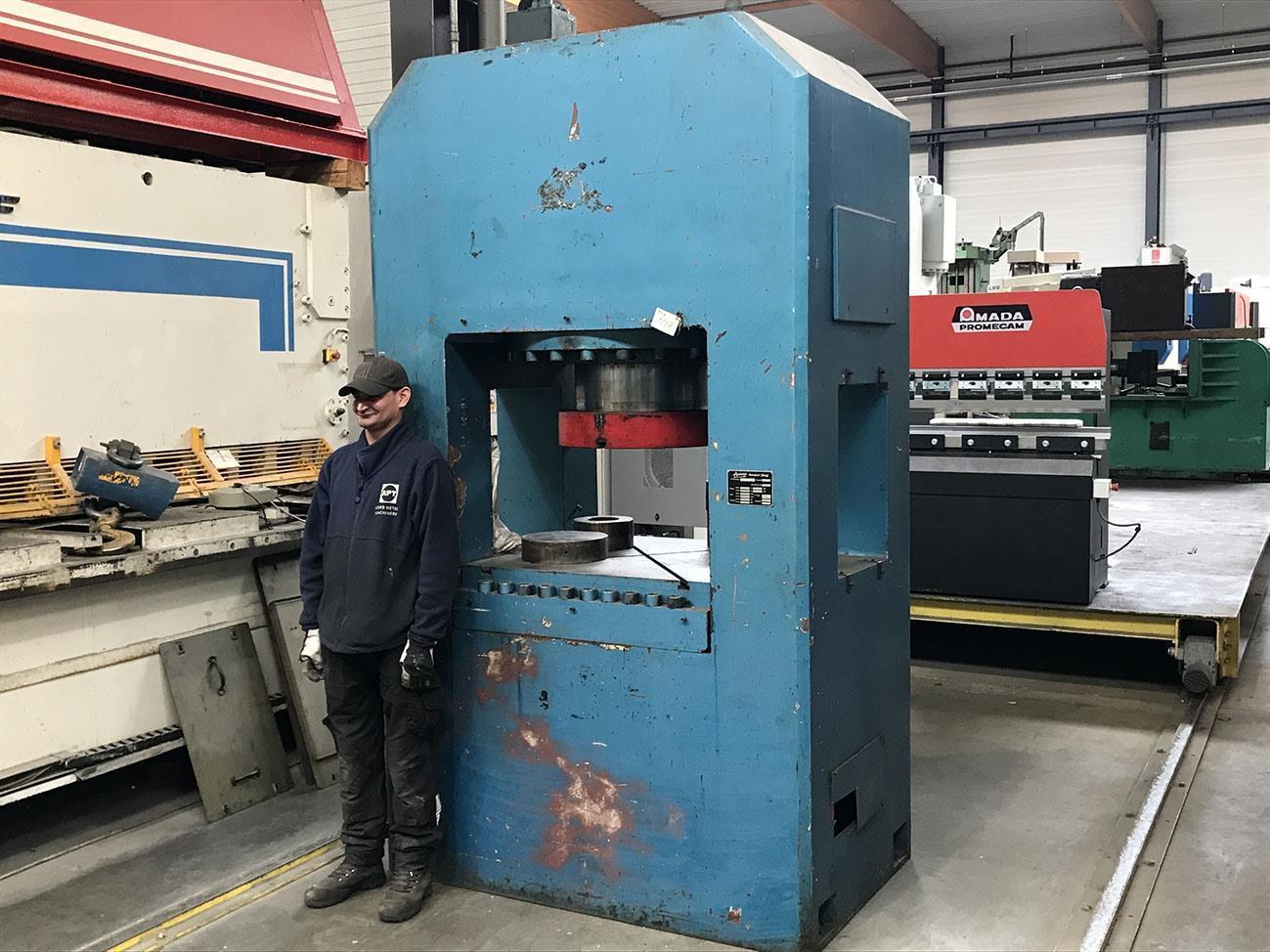

Presse con telaio a H Hymag HDP 1000 Ton

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity1000 T
Max ram adjustment500 mm
Passage between uprights980 -- 480
Max distance between table - ram550
Dimensions of the table950 x 850 mm
Tableheight fixed - sliding(1)
dimensions stampdia 600 mm
Electric motor (power)10 kw
Length1600 mm
Depth1000 m
Height2400 mm
Weight15560 kg

Informazioni supplementari

Pressing Cylinder Ø 500 mm
Thickness table:220 mm

Drive for double steppump low/high pressure n = 3Kw

Speed by low pressure V1 = 1,6 mm/sec

Speed by high pressure V2 = 0,15 mm/sec

Speed return Vr = 5 mm/sec
Tipo/Modello: HDP 1000 Ton
Numero di magazzino: M.04 1218
Categoria: [M] Presse idrauliche
Sottocategoria: [M.04] Presse con telaio a H
Il marchio: Hymag
