Presse con telaio a H LVD 400 ton

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity400 ton
Max ram adjustment1550 mm
Drawningspeed30 mm/sec
Workingspeed2 mm/sec
Returningspeed50 mm/sec
Passage between uprights3900 mm
Max distance between table - ram1550 mm
Dimensions of the table7000 x 3200 mm
Electric motor (power)11 kW
Length8500 mm
Depth5900 mm
Height4900 mm
Weight85 ton

Informazioni supplementari

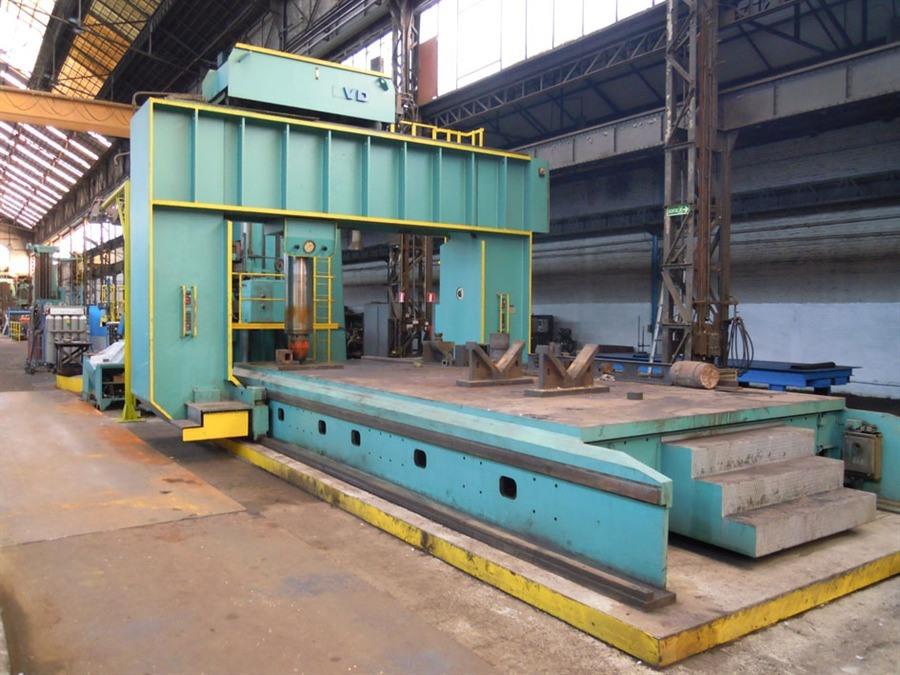

Gantry straightening press 400 ton

>> For straightening shafts, steels castings, rolled products, open-die forgings, flat steel but also pressing in/out bearings, bushes, shrink rings,...

14 individual counter pressure cylinders in the table
- 3 ton cap per cilinder

- 100 mm stroke per cilinder
- 300 kg/cm²
Tipo/Modello: 400 ton
Numero di magazzino: M.04 8937
Categoria: [M] Presse idrauliche
Sottocategoria: [M.04] Presse con telaio a H
Il marchio: LVD

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: M.04 8937
