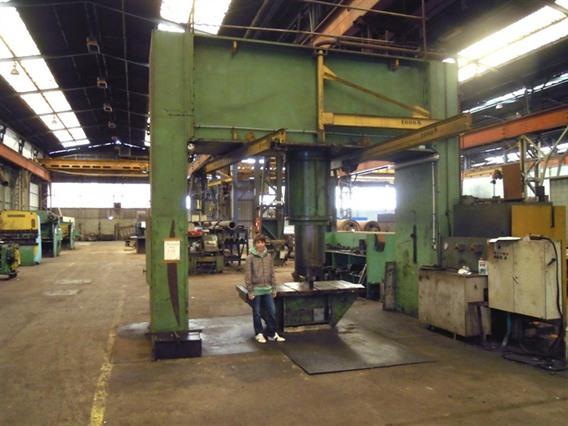

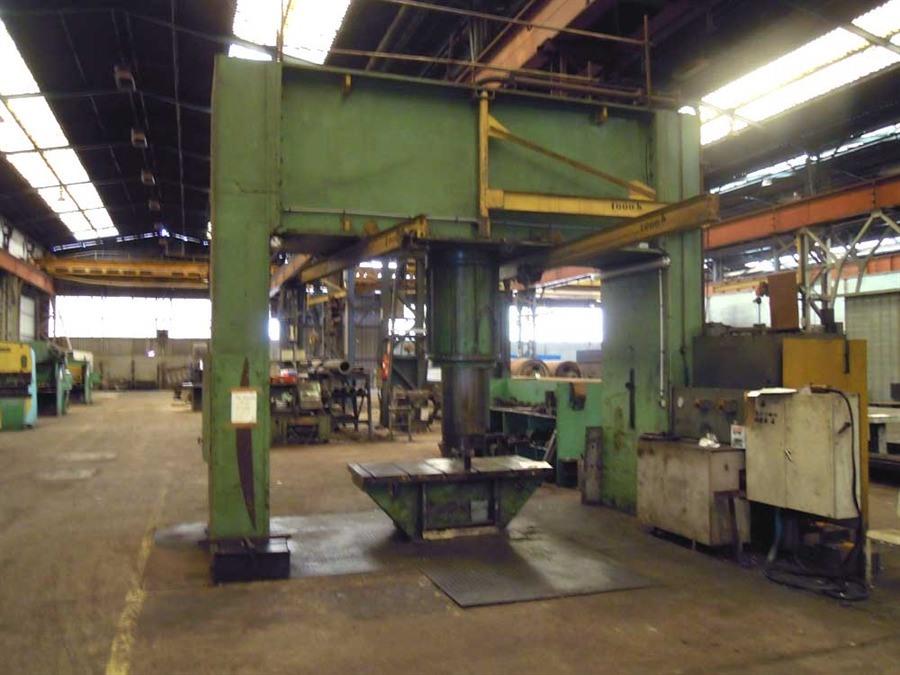

LVD 600 ton Dish end forming press

Informazione tecniche

  • Capacity600 Ton
  • Max ram adjustment600 mm
  • Drawningspeed55 mm/sec
  • Workingspeed5 à 10 mm/sec
  • Returningspeed130 mm/sec
  • Passage between uprights4200 mm
  • Max distance between table - ram1600 mm
  • Dimensions of the table2000 x 1000 mm
  • Electric motor (power)45 pk
  • Weight40000 kg

Informazioni supplementari

  • This portalpress is suitable for the deformation/deforming of steel plates. For the width and thickness of the plates the general rule applies: 10 ton per mm platethickness.


    Has been fully reconditionned
    Cap: 600 Ton
    Max opening: 1600 mm
    stroke: 600 mm
    Table: 2000 x 1000 mm
    Between coloms: 4200 mm
    Closing speed: 55 mm/sec
    working speed: 10 mm/sec
    return speed: 130 mm/sec



    plate roll press - plate roller press - Plattenroll Presse - strechting - bending - joggling - flanging - Kesselboden - Fond elliptique / Fonds elliptiques / Dish-end forming press / Tankbödenherstellung / Kümpelpressen / Bördelmaschinen / Bodenrand-Sickenmaschinen



  • Tipo/Modello: Dish end forming press
  • Numero di magazzino: M.04 6337
  • Categoria: [M] Presse idrauliche
  • Sottocategoria: [M.04] Presse con telaio a H
  • Il marchio: LVD 600 ton

Numero di magazzino: M.04 6337
