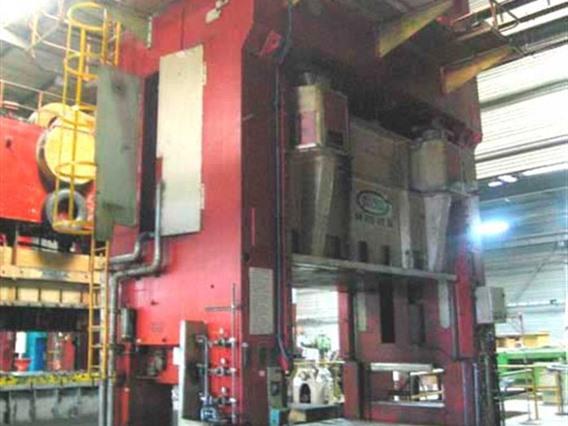

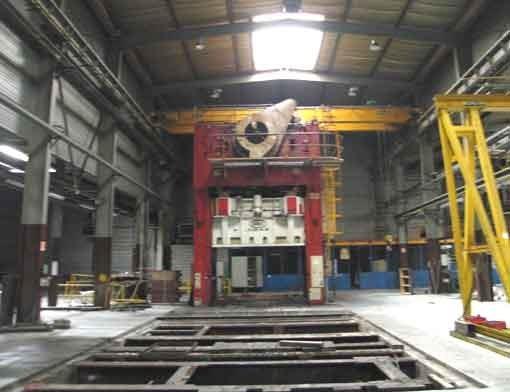

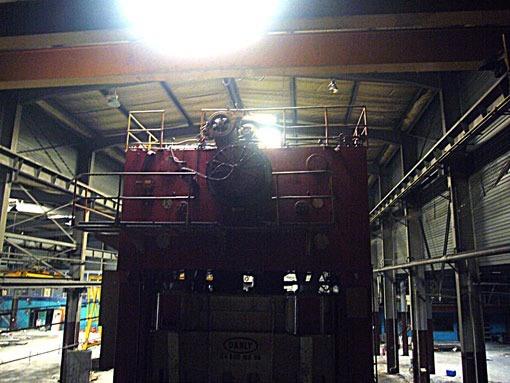

Presse eccentriche telaio a H Danly D4-600-162-96
Informazione tecniche
- Capacity940 T
- Max adjustable stroke508 mm
- Workingspeed6 - 12 /min
- Passage between uprights1960 mm
- Distance between table -- ram2286 mm
- Dimension of the table4500 x 2700mm
- Weight204 T
Informazioni supplementari
- - capacity of inner slide : 600 T - capacity of blankholder: 350 T - stroke of inner slide: 1016 mm - stroke of blankholder : 863.6 mm - adj.of inner slide ( motor) : 508 mm - adj.of blankholder ( motor) : 508 mm - shut height of inner slide : 2540 mm - shut height of blankholder : 2286 mm
- Tipo/Modello: D4-600-162-96
- Numero di magazzino: N.06 2702
- Categoria: [N] Presse meccaniche
- Sottocategoria: [N.06] Presse eccentriche telaio a H
- Il marchio: Danly
