Haco ERM 135 ton x 4100 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity135 ton x 4100 mm

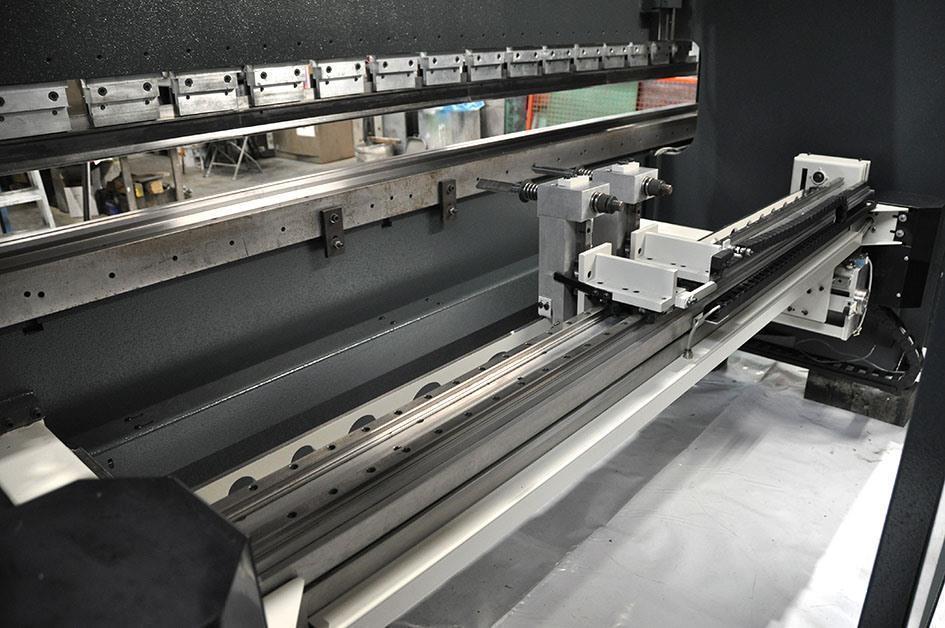

BackgaugeCNC

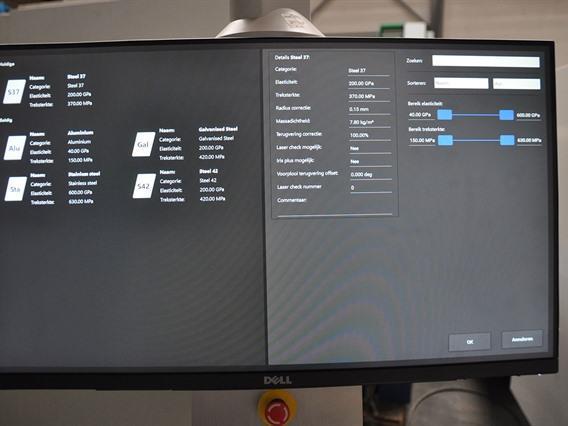

Control2D touch
Passage between uprights3150 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat250 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed100 mm/sec
Electric motor (power)15 kW
Length4400 mm
Depth1700 mm
Height2500 mm
Weight10 ton

Informazioni supplementari

7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V
Systemtooling
X-R-Z version with assymmetric fingerwidth
Fiessler BendGuard
Tipo/Modello: 135 ton x 4100 mm CNC
Numero di magazzino: O.01 12601
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Haco ERM

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 12601

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
