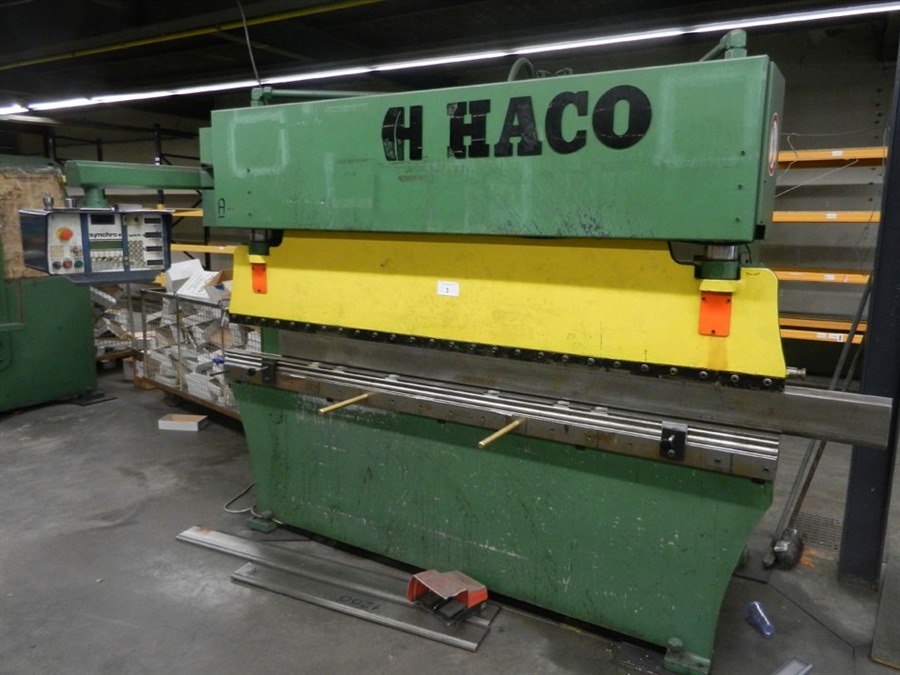

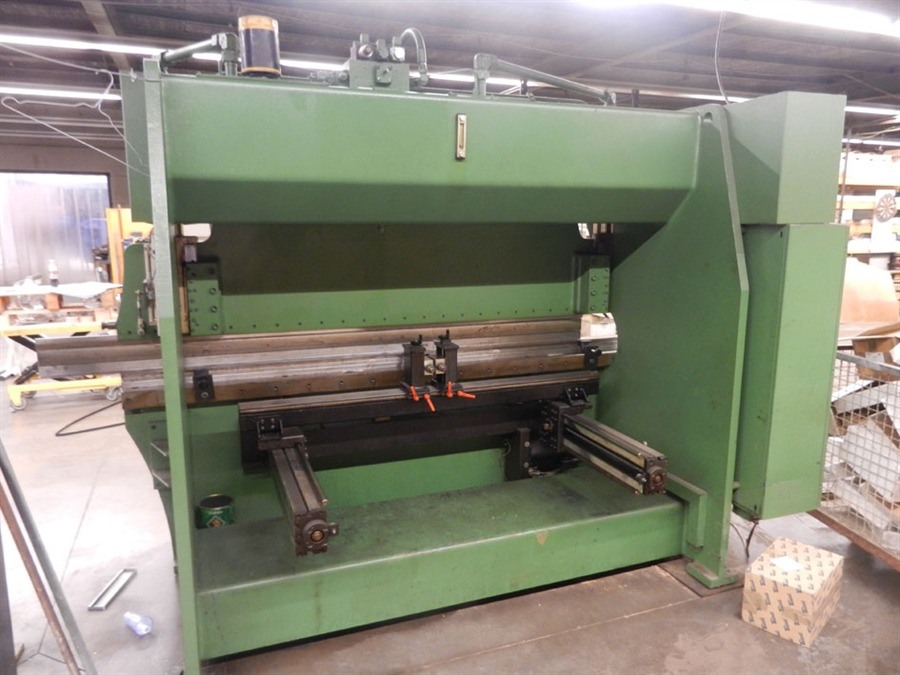

Haco PPES 60 ton x 2600 mm CNC
Informazione tecniche
- Capacity60 ton x 2600 mm
- BackgaugeCNC
- ControlSynchro+
- Passage between uprights2100 mm
- Max stroke100 mm
- Max distance between table -- ram280 mm
- Depth of throat200 mm
- Table width135 mm
- Locking speed80 mm/sec
- Working speed11 mm/sec
- Returning speed70 mm/sec
- Electric motor (power)5,6 kW
- Power needed380 V
- Length2780 mm
- Depth120 mm
- Height2240 mm
- Weight3500 kg
- ACCESSORIESyes
Informazioni supplementari
Numero di magazzino: O.01 7340
