LVD PPEB 80T x 2500 mm Cadman CNC

Prodotto aggiunto al suo preferiti

Informazione tecniche

Capacity80 ton x 2500 mm
Backgauge(3) CNC
ControlCadman
Passage between uprights2050 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat400 mm
Table width150 mm
Locking speed130 mm/sec
Working speed11 mm/sec
Returning speed115 mm/sec
Electric motor (power)7,5 kW
Length4075 mm
Depth2561 mm
Height2705 mm
Weight6200 kg
ACCESSORIESyes

Informazioni supplementari

6 axes: Y1 - Y2 - X - R - Z1 - Z2
manual LVD upper clamping
lower Uni-V die clamping

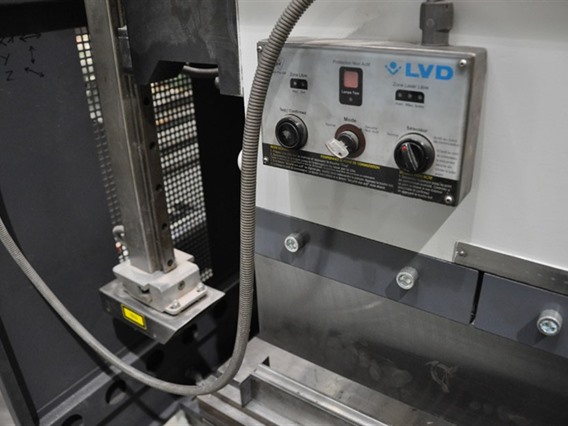

LaserSafe security

with additional set tools
Tipo/Modello: 80T x 2500 mm Cadman CNC
Numero di magazzino: O.01 7429
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: LVD PPEB
