LVD PPEB Turbo 220 ton x 4200 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity220 ton x 4200 mm

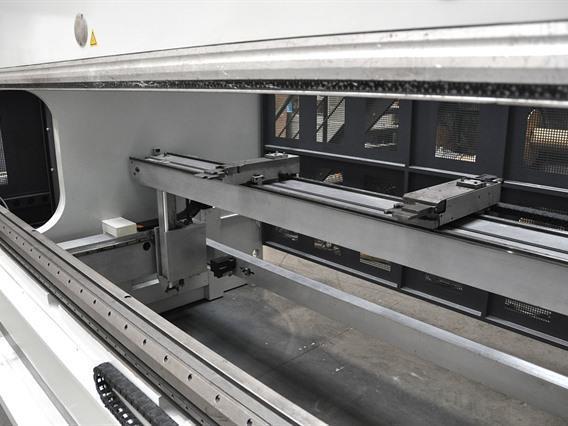

BackgaugeCNC

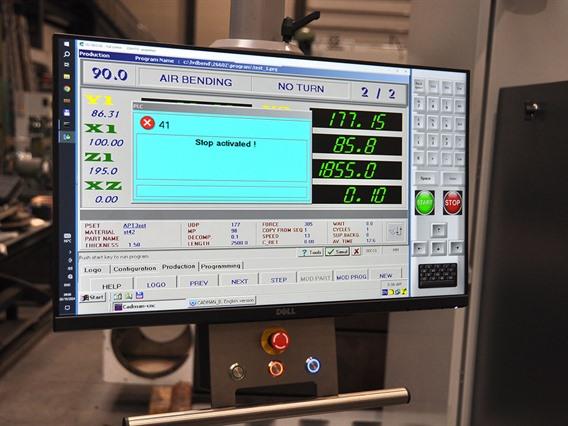

ControlCadman B + Touch
Passage between uprights3820 mm
Max stroke350 mm
Max distance between table -- ram590 mm
Depth of throat405 mm
Table width120 mm
Locking speed120 mm/sec
Working speed20 mm/sec
Returning speed200 mm/sec
Electric motor (power)42 kW
Length6320 mm
Depth2850 mm
Height3600 mm
Weight20.6 ton

Informazioni supplementari

8 axes: Y1 / Y2 / X / R / Z1 / Z2 / X' / V

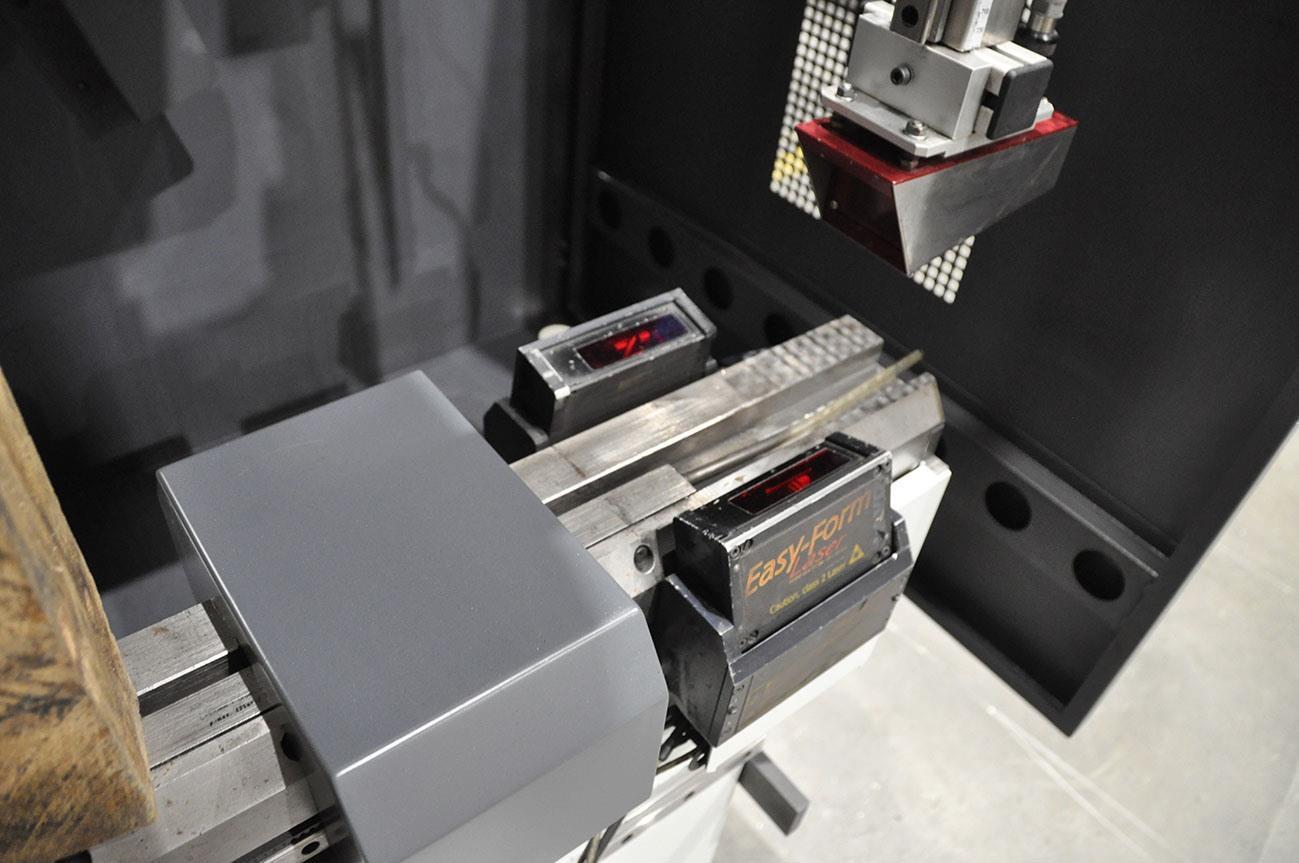

with Easy Form
with CNC bombation
with Lazer Safe protection

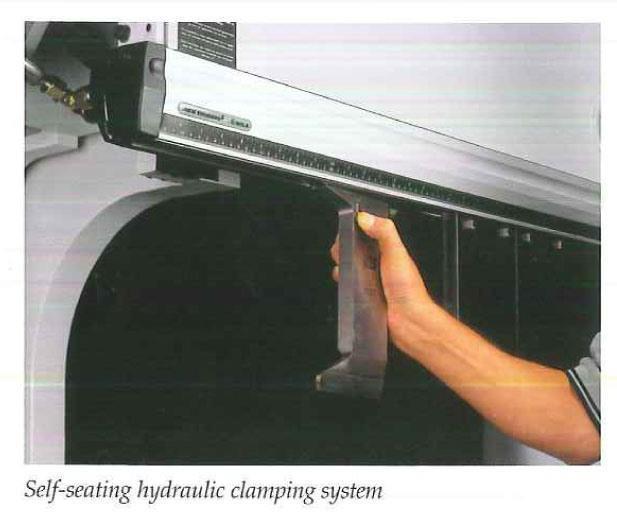

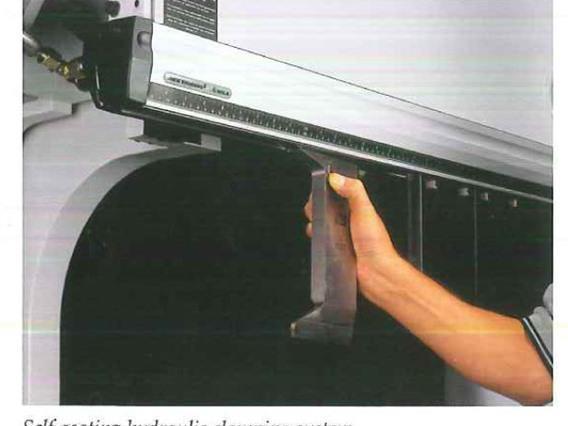

with Willa hydraulic clamping
with 2 plate supports
Tipo/Modello: Turbo 220 ton x 4200 mm CNC
Numero di magazzino: O.01 13932
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: LVD PPEB
