LVD PPI 135 ton x 4100 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity135 ton x 4100 mm

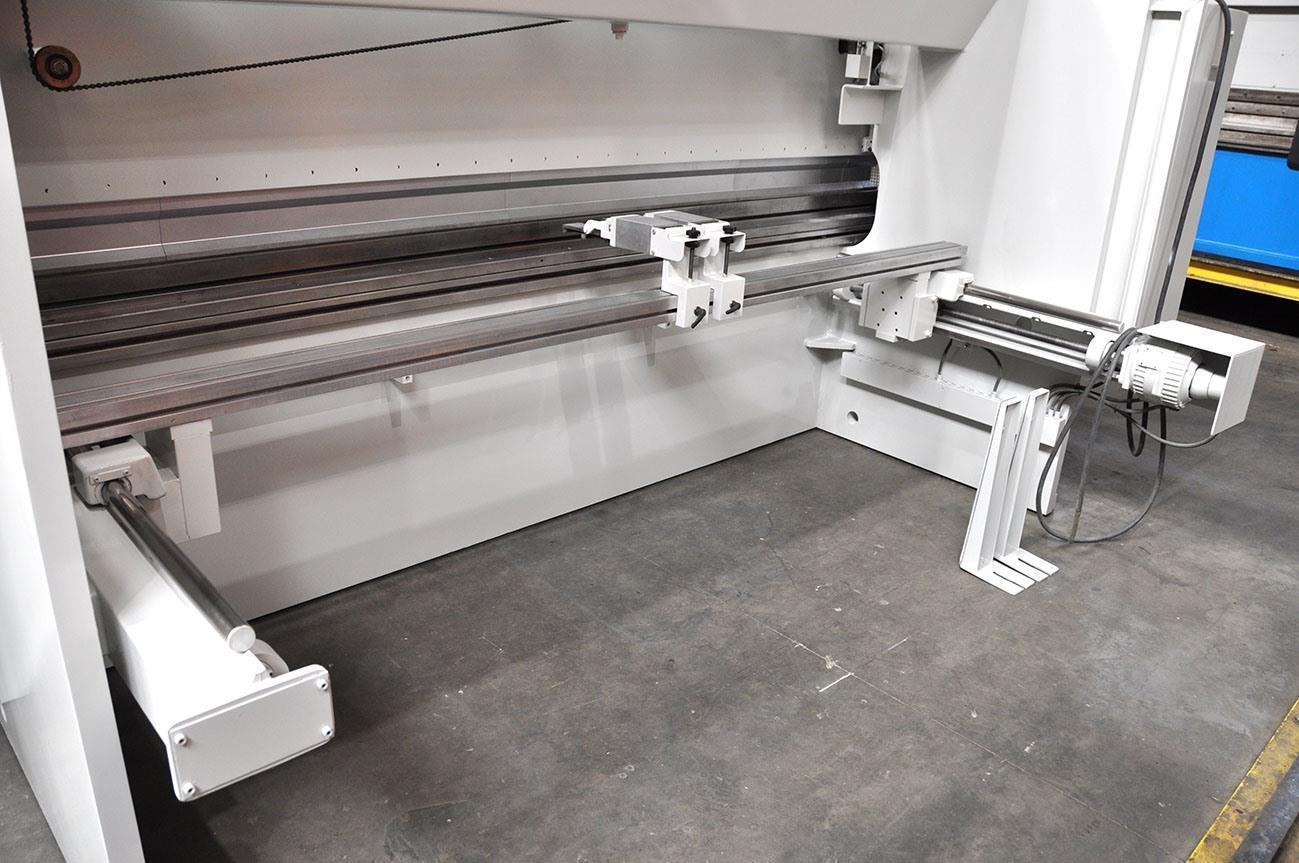

BackgaugeCNC

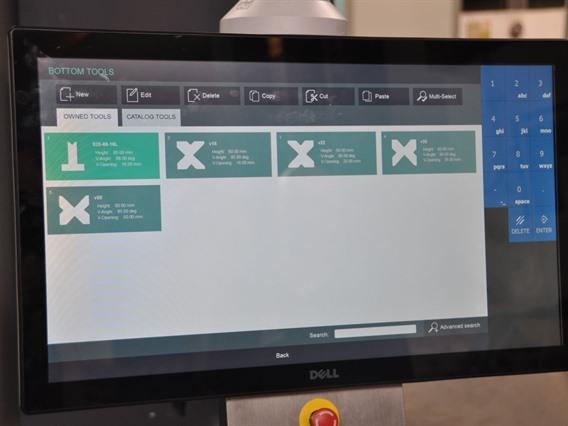

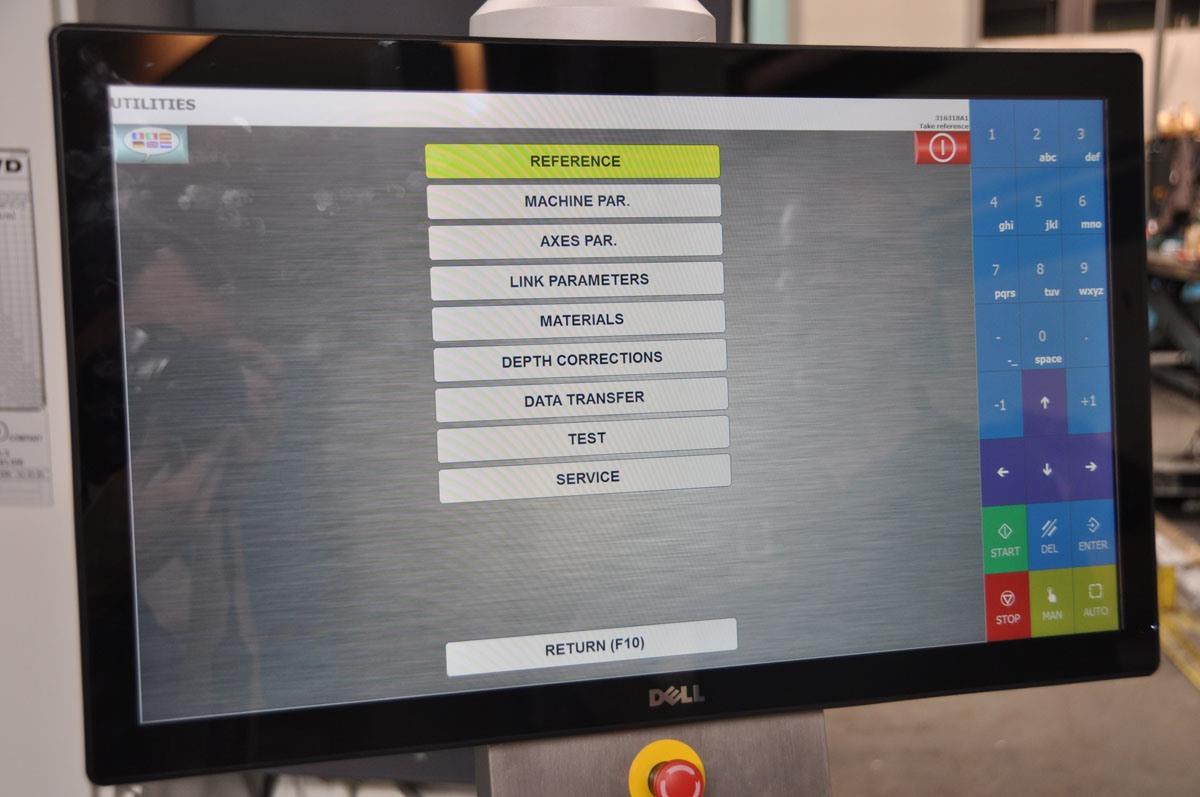

Control2D Touch
Passage between uprights3150 mm
Max stroke130 mm
Max distance between table -- ram310 mm
Depth of throat200 mm
Table width180 mm
Locking speed100 mm/sec
Working speed7 mm/sec
Returning speed60 mm/sec
Electric motor (power)11 kW
Length4200 mm
Depth2000 mm
Height2500 mm
Weight10 ton

Informazioni supplementari

3 axes: Y1 / Y2 / X
Manual bombation
Tipo/Modello: 135 ton x 4100 mm CNC
Numero di magazzino: O.01 14000
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: LVD PPI
