Safan E-brake SMK 40 ton x 2050 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity40 ton x 2050 mm
BackgaugeCNC
ControlTS
Passage between uprights2050 mm
Max stroke115 mm
Max distance between table -- ram515 mm
Locking speed90 mm/sec
Working speed20 mm/sec
Returning speed90 mm/sec
Electric motor (power)13,5 kW
Length2900 mm
Depth1850 mm
Height2620 mm
Weight3150 kg

Informazioni supplementari

3 axes: Y1 / Y2 / X

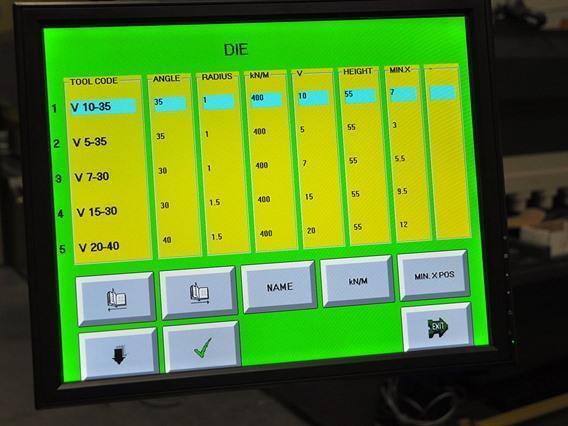

touchscreen control
Willa upper tooling
Tipo/Modello: E-brake SMK 40 ton x 2050 mm CNC
Numero di magazzino: O.01 14034
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Safan

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 14034

Scaricare tutte le foto in ZIP
