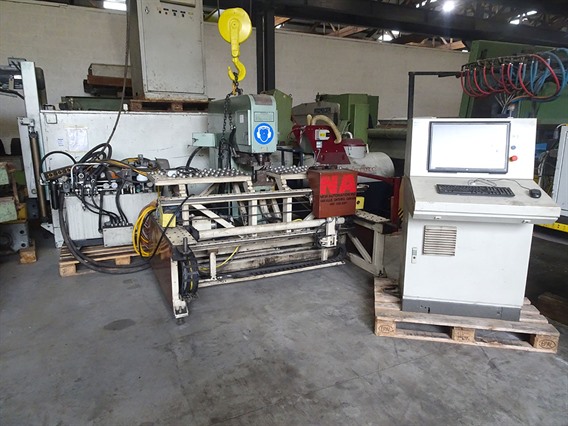

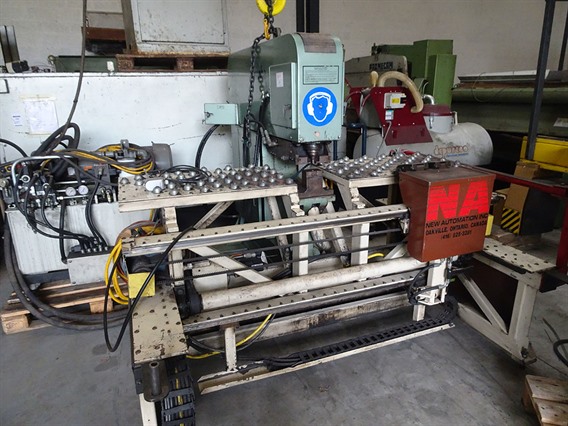

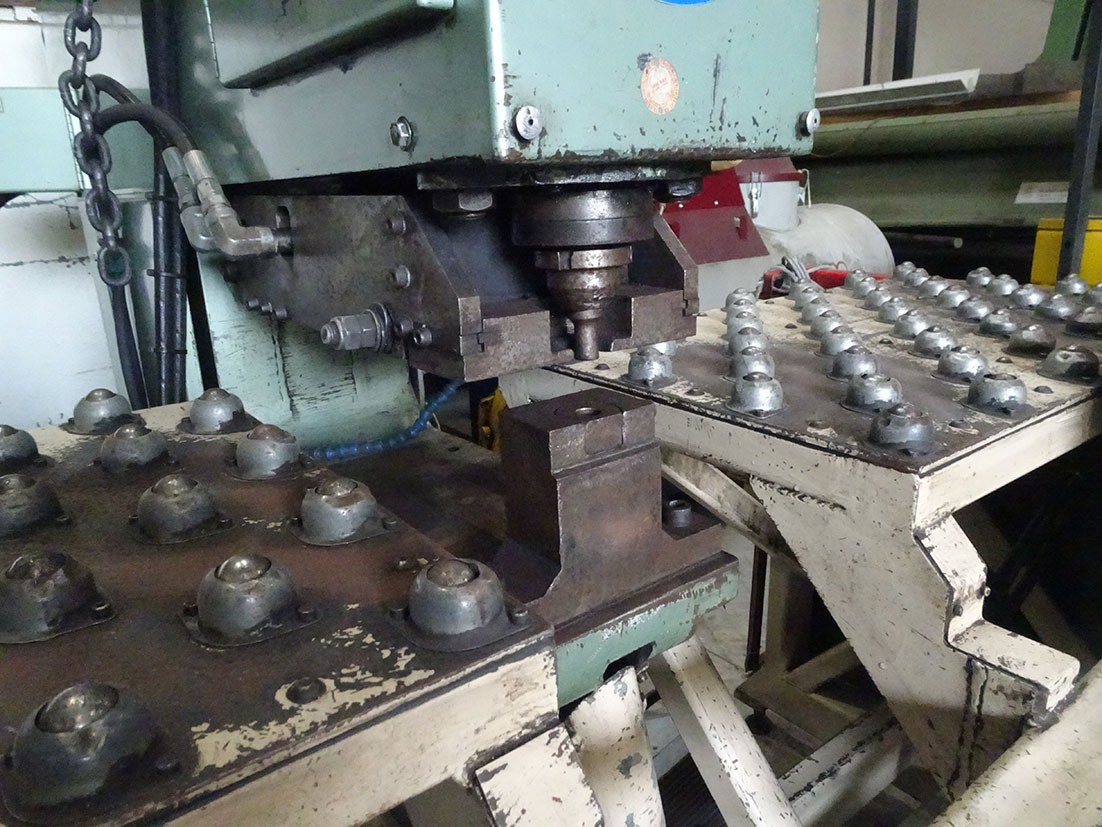

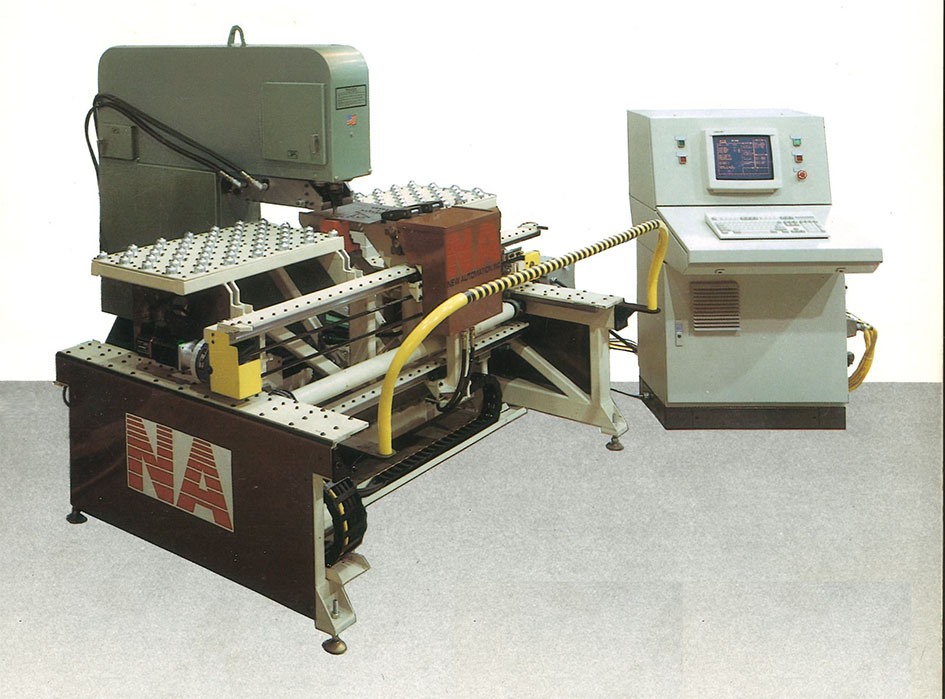

Punzonatrice universale Piranha SEP 120 ton CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Punchingcapacity120 ton
Dia x sheetthicknessØ 37 in 25 mm
Max course50 mm
Depth of throat546 mm
Max hole dia.Ø 125 mm
Electric motor (power)10 hp
Length 1520 mm
Depth 1210 mm
Height1828 mm
Weight1900 kg

Informazioni supplementari

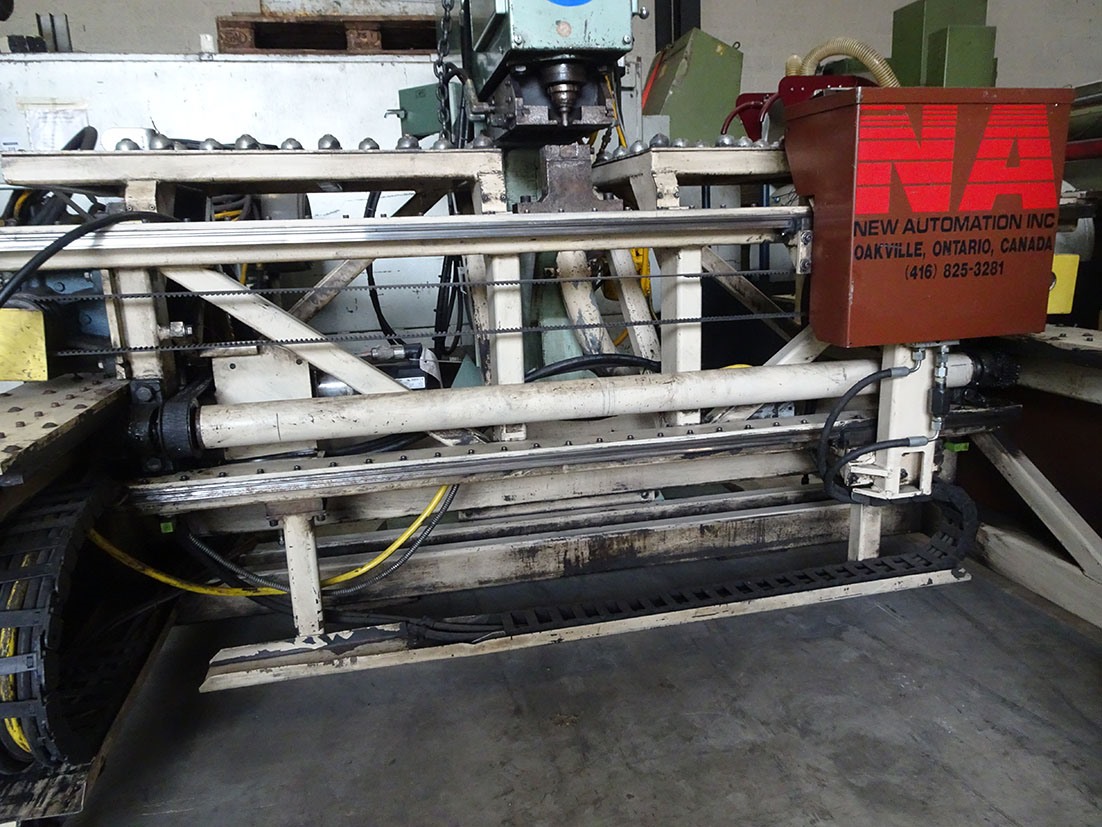

Single end punch press with 2 axis positioning table:
X-travel: 1500 mm
Y-travel: 525 mm
Tipo/Modello: SEP 120 ton CNC
Numero di magazzino: P.13 10832
Categoria: [P] Cesoie, punzonatrici universali, linee di taglio trasversale e longitudinale, Lockformer e segatrici a nastro
Sottocategoria: [P.13] Punzonatrice universale
Il marchio: Piranha

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: P.13 10832

Scaricare tutte le foto in ZIP
