Voith rollgrinder Ø 2000 x 9000 mm

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Center Distance9000 mm
Max diaØ 2000 mm
Number of rotations grindingwheel50 > 2000 rpm
Dia grindingwheel750 mm
ACCESSORIESyes

Informazioni supplementari

Rollgrinder Ø 2000 x 9000 mm

Can be used for grinding steel, stainless steel rolls & rubber rolls for printing industry and industrial applications
This mahine also has the capability of grinding rolls concave & convex!
Max roll weight: 45 ton
Max roll length: 9000 mm
Max grinding length: 6000 mm
Power on spindle for grinding: 30 kW
Power for turning the workpiece: 45 kW
Equipped with cooling + filter when grinding steel rolls
Equipped with extraction filter when grinding rubber rolls
Equipped with system for grinding the wheel with a diamond tool.

Including:

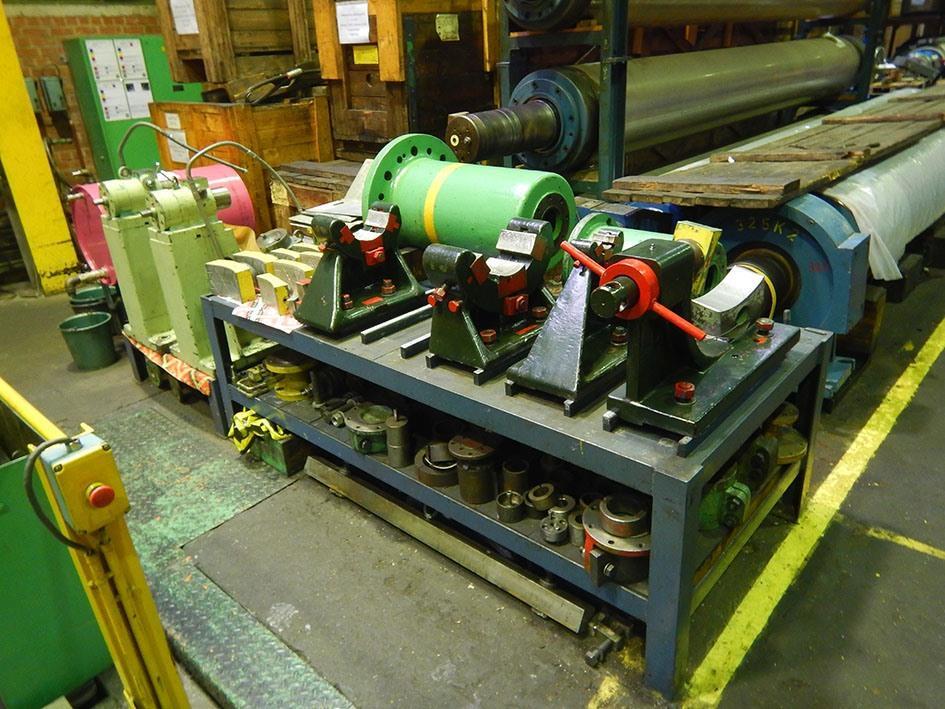

- many support blocs for different sized rolls

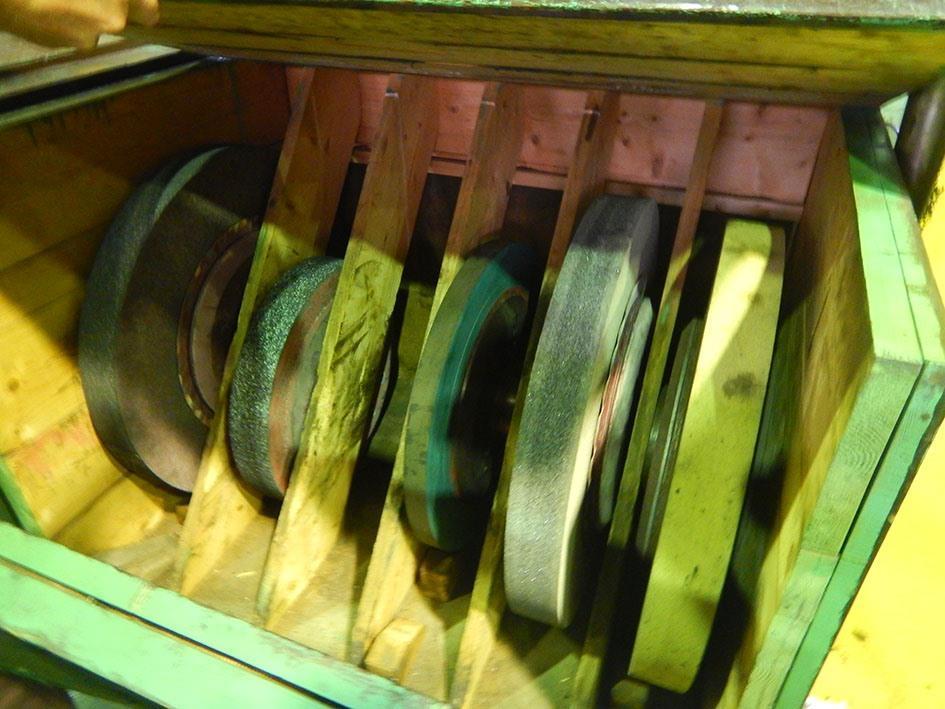

- many grinding stones for different materials of rolls
- Mess-matic measuring equipment for checking roll shape

Walzenschleifmaschine - rouleaux en caoutchouc - roller coating - graphic roller - industrial roller
Tipo/Modello: rollgrinder Ø 2000 x 9000 mm
Numero di magazzino: G.03 10902
Categoria: [G] Rettificatrici
Sottocategoria: [G.03] Rettificatrici cilindriche
Il marchio: Voith

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: G.03 10902

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
