Trumpf - Kuka YAG laser beam welding - Robot
Prodotto outlet
Informazione tecniche
- ControlKRC2
- Number of axes6 axes

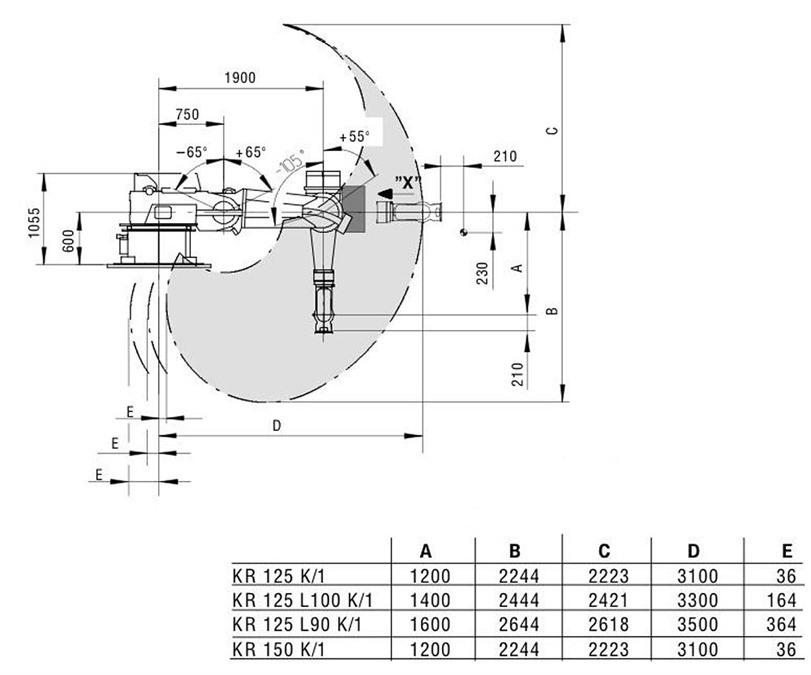

- WorkareaRadius 3000 mm
Informazioni supplementari
- THE ROBOT LASERWELDING
---Exist of---

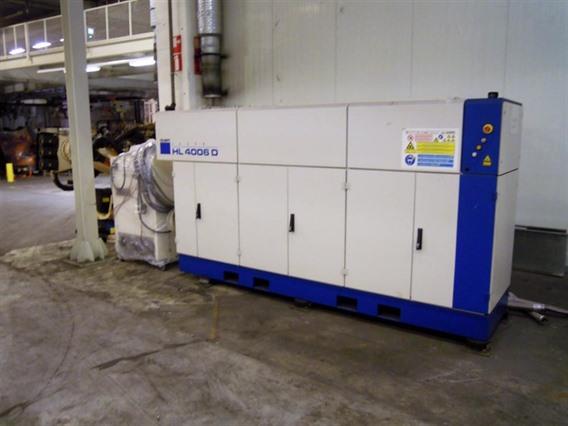

1. - Trumpf HL 4006 YAH-laser.
- Resonator max.cap: 4000W

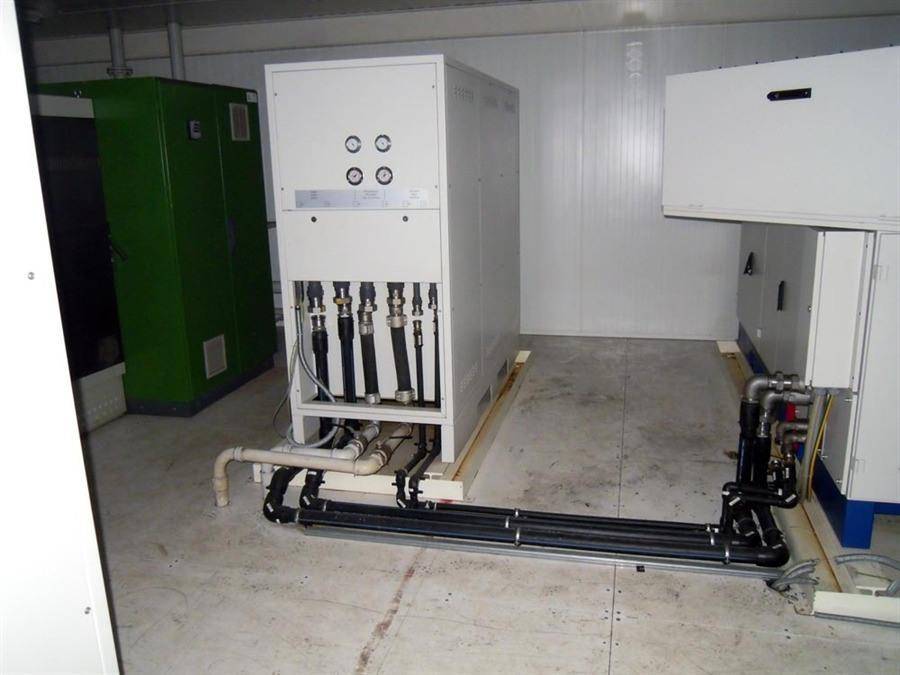

2. - Chiller Riedl for Resonator and Cooling

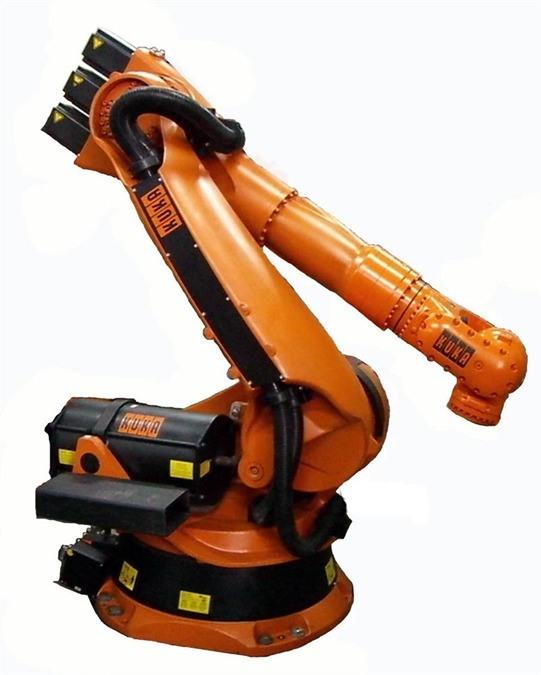

3. - Kuka Robot: type KR 150

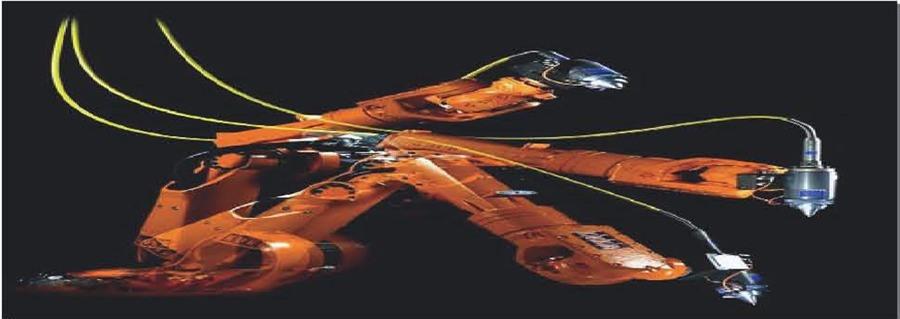

- 6 AXES with HighYAG laserwelding / cutting head

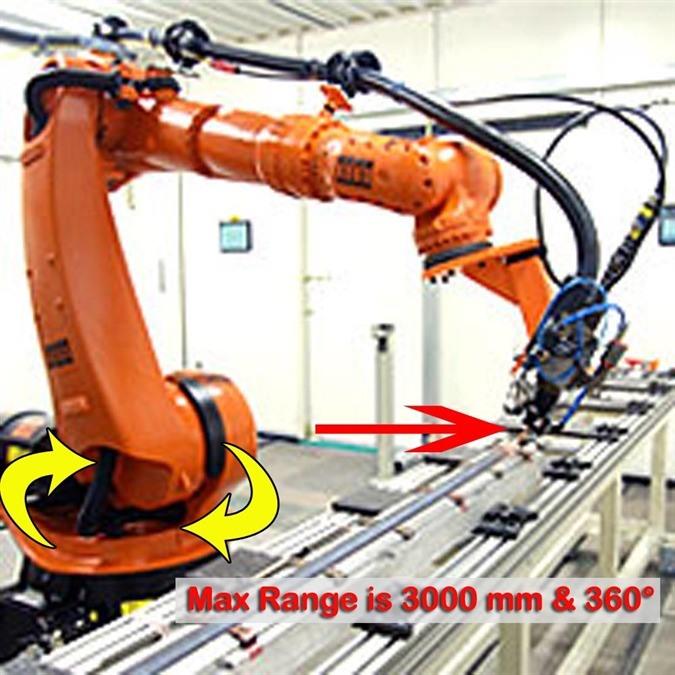

- Max workrange 3000 mm equipped with HIGHYAG laser welding cutting head.
4. - SEF-Roboter VRS 2
- Controlbox with handcontrol/joystick for KUKA-Robot
5. - 30 meter optical Fiber cable with connections for copeling resonator mounted on the YAG Robot-laserhead
6. - Optional 7th axis transversal movement of the robot 2000mm available
Example of the welding speed: steelplate 0.7 x 0.7mm = 100 mm/sec.
7. - The trumpf resonator feeds the laser by glassfiber cable up to 30m lenght max.
In use 2004, nearly new condition.
(original new price: +700000€ laserwelding + robot)
- Tipo/Modello: YAG laser beam welding - Robot
- Numero di magazzino: V.03 6282
- Categoria: [V] Rotatori, manipolatori, gru e posizionatore di saldatura
- Sottocategoria: [V.03] Robot di saldatura
- Il marchio: Trumpf - Kuka
Numero di magazzino: V.03 6282
