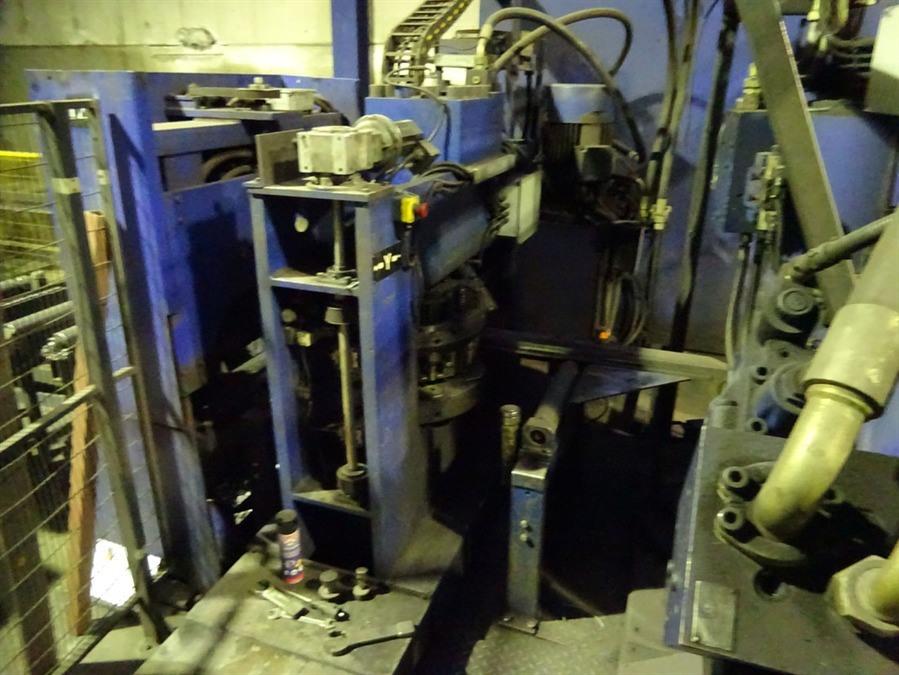

Ficep F504/8 PS CNC punching & cutting

Prodotto aggiunto al suo preferiti

Informazioni supplementari

Type F504/8 PS
For corner steel and flat steel

Fenice CNC control

Hydraulic Punchunit 110 ton

- 8 punchpositions

- max thickness: 25 mm

- max dia: 46 mm

- stroke: 45 mm

Hydraulic Shearingunit 220 ton for flat steel

- stroke: 90 mm

- max thickness: 25 mm

- max miter cut: left and right 45°

- max width 90°: 510 mm

- max width 45°: 350 mm

- shear width: 610 mm

Hydraulic Shearingunit 220 ton for corner steel

- corner steel: 50x50x5 mm / 150x150x16 mm

- max angle: 2,5°

Power: 47 kW

12 meter feed in table

Weight of machine without tables: 13 ton
Tipo/Modello: CNC punching & cutting
Numero di magazzino: O.19 9204
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.19] Stampatrici e fustellatrici lamiere sottili
Il marchio: Ficep F504/8 PS

Numero di magazzino: O.19 9204
