Stampatrici e fustellatrici lamiere sottili Finnpower TP 2625 IF 2

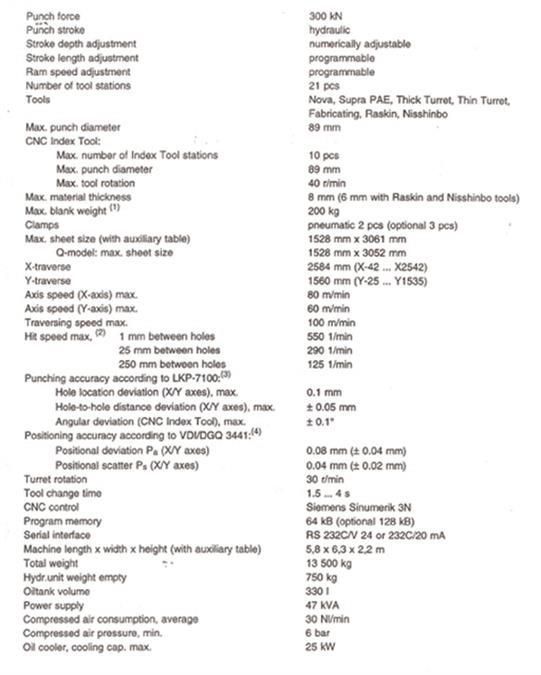

Informazione tecniche
- Punching pressure300 kN
- Max sheet thickness by punching + nibbling6 mm
- Max punching dia89 mm
- Max weight workpiece200 kg
- Working range on cross-side (X-axes)2584 mm
- Working range along (Y-axes)1560 mm
- Positioning speed along X-axesmax 80 m/min
- Positioning speed along Y-axesmax 60 m/min
- ControlSimens Sinumerik 3N

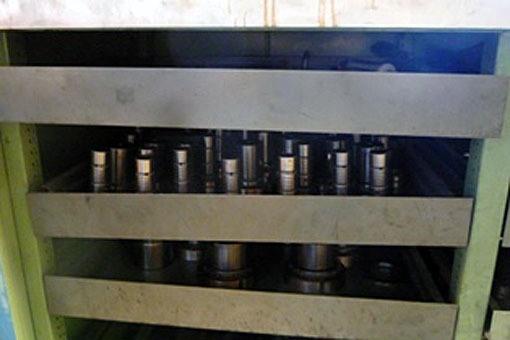

- Number of toolpositioners21 stations
- Changingtime1,5 - 4 s
- Power needed47 kW power supply
- Length5800 mm
- Depth6300 mm
- Height2200 mm
- Weight13 500 kg
