Esab Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter
Informazione tecniche
- Type of LaserTLF 4000 Turbo
- Power4000 Watt

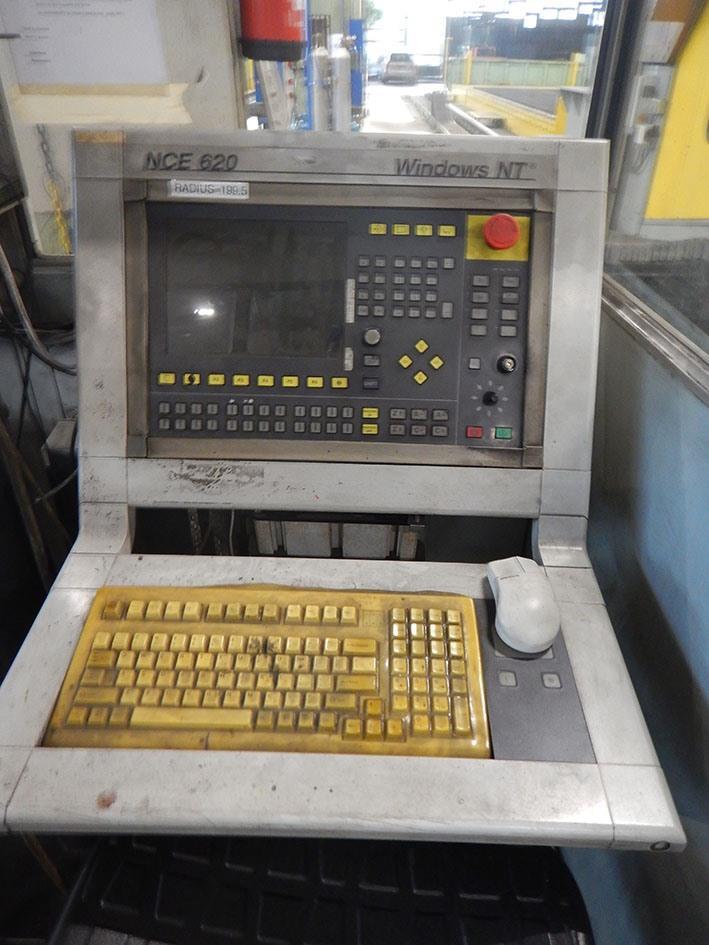

- ControlEsab NCE 620 + Trumpf Tasc
- Longitudinal travel X-axis24 000 mm
- Cross travel Y-axis7000 mm
- Hight travel Z-axis260 mm
- Max cuttingthickness in steel20 mm
- Max cuttingthickness in Inox15 mm
- Courant needed3x 400V
Informazioni supplementari
- Type: Alpharex AXC 7000
Trumpf TLF 4000 Turbo
Cutting head can swivel and can make bevel cuts!!
including Columbus software with all options

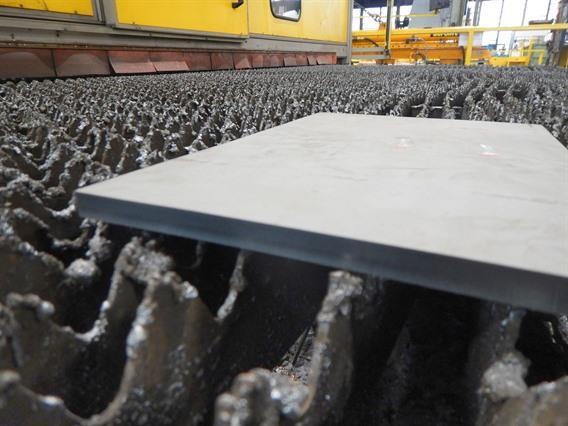

Ezeclean cutting tables with integrated dust extraction
Pro-Las laser guard system = allows for operating times of up to 8 hours without the need of permanent supervision
- Trackwidth: 7000 mm
- Cuttingwidth: 6300 mm
- Height travel of cutting head: max 260 mm
- 9 cutting tables of 6300 x 2500 mm
- Video camera for monitoring cuttinghead
Laser cutting head for vertical and bevel cutting on flat plates in horizontal position

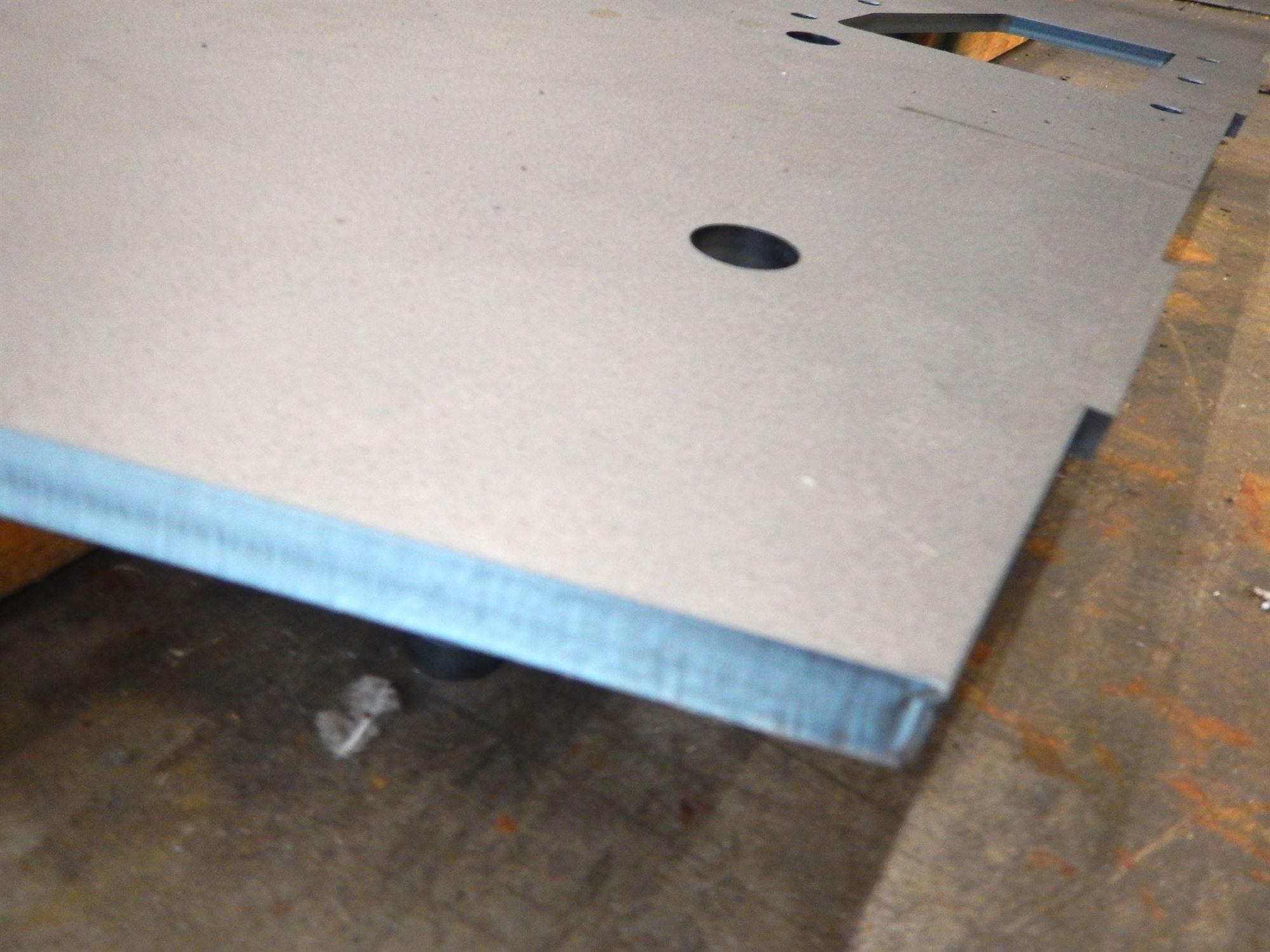

Up to 20° bevel angle laser quality cuts are possible, with larger bevel angles serrations and burrs must be expected
Max vertical cutting steel: 20 mm
Max vertical cutting stainless steel: 12 mm
Max vertical cutting alu: 8 mm
Max bevel cutting steel: 15 mm
Max bevel cutting stainless steel: 10 mm
Max bevel cutting alu: 6 mm
Columbus software:
> Basic module comprises various functions which enable the convenient generation of machine programs from part information.
> Including the modules integrated Cad-system, 65 standard shapes and DXF-convertor
> Marking tool module
> Bevel unit module
> Data management module, for the organization and administration of the parts to be processed
> Date information module, calculation of layouts
> Plate management module
> Automatic nesting module, fully auto nesting of any kind of contour
- Tipo/Modello: Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter
- Numero di magazzino: O.12 11132
- Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
- Sottocategoria: [O.12] Tagliatrici laser
- Il marchio: Esab
Numero di magazzino: O.12 11132
