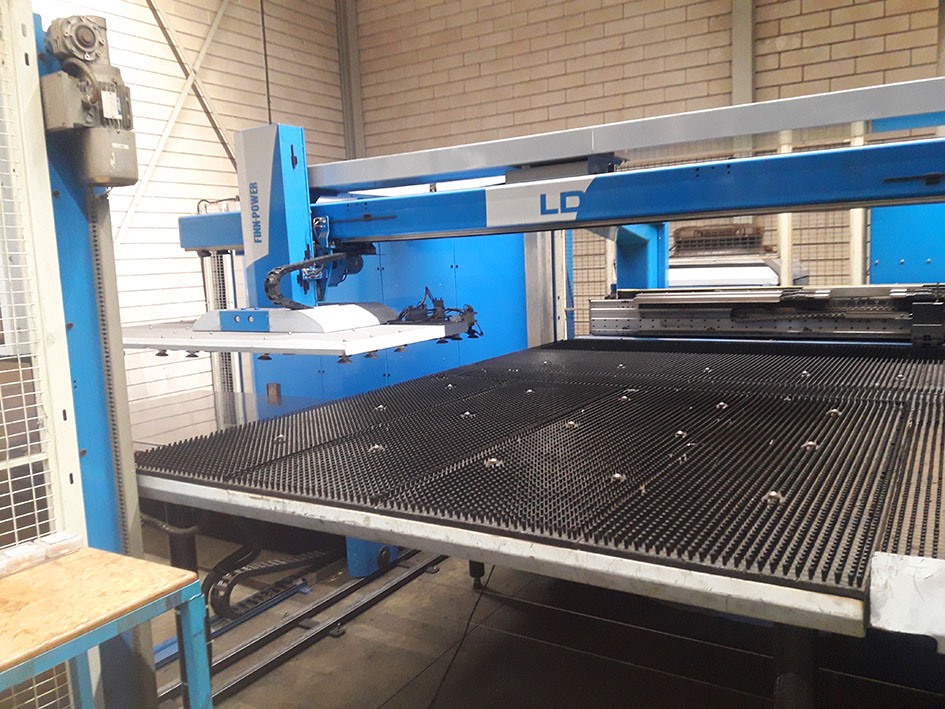

Finn Power Laser Center LC6
Informazione tecniche
- Workpiece dimensions3000 x 1500 x 8 mm
- Type of LaserRofin
- Power2500 Watt
- ControlSiemens Sinumerik 840D
- Motor Power27 kW
- Weight29 ton
Informazioni supplementari
- Automated laser cutting with integrated sorting and packing. LC6 integrates laser operation and part handling for fabricating high-quality components. Fast, accurate sheet positioning and the integrated Rofin Sinar 2,500 Watt diffusion cooled CO SLAB.
5 axis gantry robot for material loading,
part sorting and stacking
brush tables for smoother sheet transfer
programmable clamp setting for virtually
no dead zone
3 metre X axis with rack and pinion and
1.5 meter Y axis with double ball screw for
sheets up to 8 mm / 200 kg
2.5 kW SLAB laser
high beam quality
low maintenance requirements
autofocus cutting head
2 trap doors 300 mm x 400 mm and
800 mm x 800 mm
9 address small part sorting device
automatic laser scrap sorting
skeleton unloading
highly compact system layout with complete access from front side
- Tipo/Modello: Laser Center LC6
- Numero di magazzino: O.12 10971
- Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
- Sottocategoria: [O.12] Tagliatrici laser
- Il marchio: Finn Power
