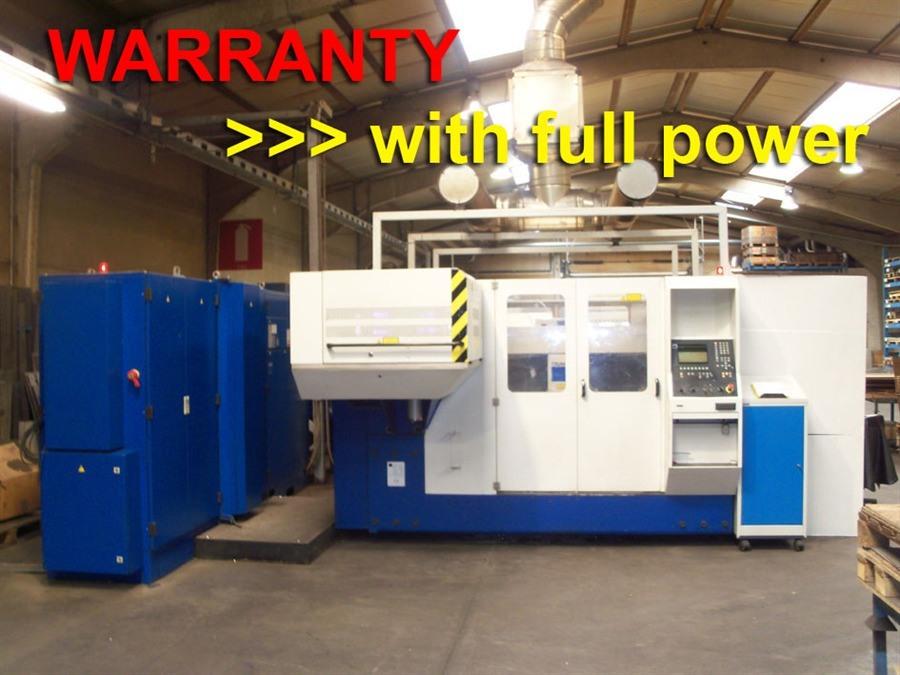

Trumpf TCL L3030 L3030 CNC

Prodotto aggiunto al suo preferiti

Informazione tecniche

Workpiece dimensions3000 x 1500 mm
Type of LaserTLF 3000
Power3000 W

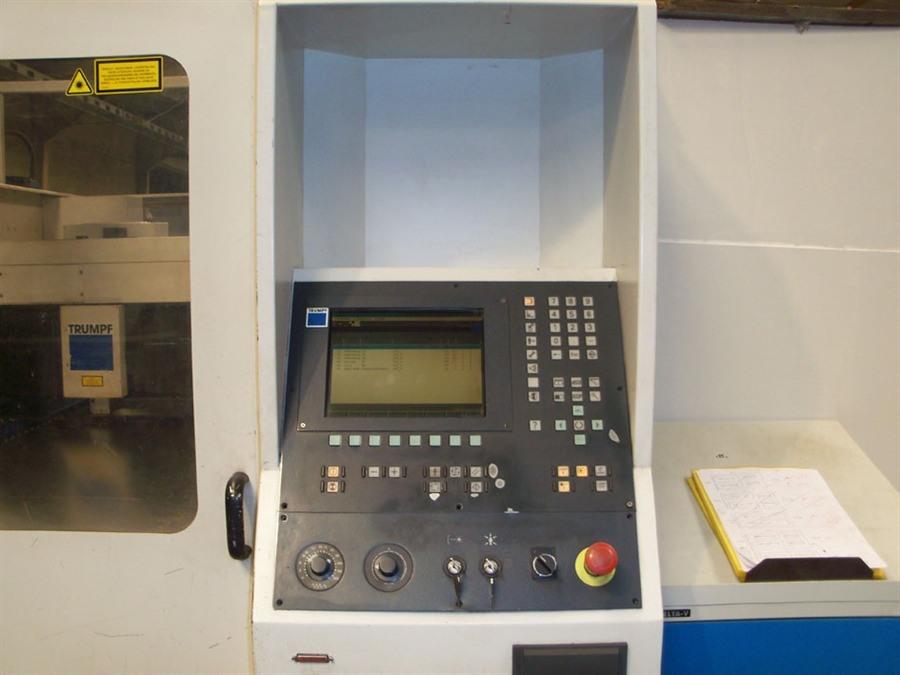

ControlSiemens Sinumerik 840D
Longitudinal travel X-axis3000 mm
Cross travel Y-axis1500 mm
Hight travel Z-axis115 mm
Max cuttingspeed84m/min
Max cuttingthickness in steel15 mm
Max cuttingthickness in Inox2 mm
Motor Power27-52 kW / 67 kVa
Length9800 mm
Depth4600 mm
Hight2000 mm
Weight11,5 ton

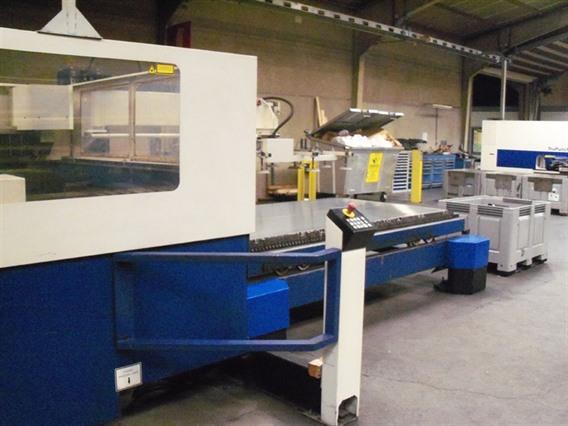

Shuttle tableyes
Loading Systemno

Informazioni supplementari

laser cutting hours: 24 000
scource fully renewed in 2004 (with magnetic bearings)

excluding loading station

available january 2013 - with full power warranty
Tipo/Modello: L3030 CNC
Numero di magazzino: O.12 7543
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.12] Tagliatrici laser
Il marchio: Trumpf TCL L3030

Numero di magazzino: O.12 7543
