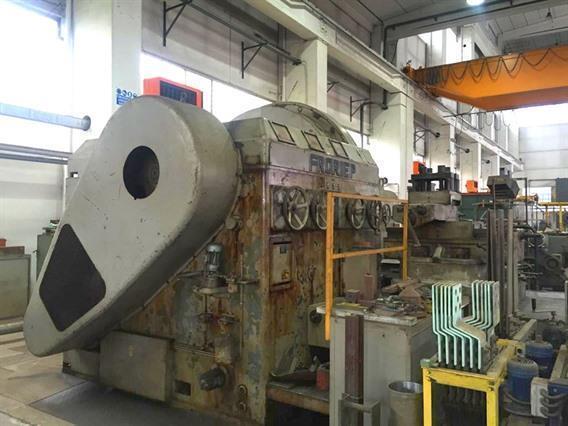

Torni centrali Froriep DS 2000-13/IV - Ø 4000 x 13 000 mm
Informazione tecniche
- Distance between centers13 000 mm
- Swing over bed4000 mm
- Swing over cross-slide2220 mm
- Diametre of main spindle bore95 mm
- Power on main spindle70 kW
- Weight140 ton
- Max weight between centers100 ton
Informazioni supplementari
- Special lathe for turning turbine shafts / large pulleys / large rotors / large pistons
Type: DS 2000-13/IV
Lathe is equipped with 2 cross-slides:
- one is mounted on a chassis bed installed next to the main chassis of the lathe
- one is mounted on an upper chassis bed on top of the main chassis of the lathe
- the upper chassis bed is also movable on top of the main chassis of the lathe
Max length of workpiece on main chassis: 13 meter
Max length of workpiece on top of upper chassis bed: 6,5 meter
Max swing in gap using main cross-slide: 4000 mm
Max swing over bed using using secondary cross-slide: 2700 mm
Max swing over cross-slide: 2220 mm
- Tipo/Modello: DS 2000-13/IV - Ø 4000 x 13 000 mm
- Numero di magazzino: A.01 12798
- Categoria: [A] Torni
- Sottocategoria: [A.01] Torni centrali
- Il marchio: Froriep
Numero di magazzino: A.01 12798
