Citizen Miyano LL-21 twin spindle - twin turret
Informazione tecniche
- Swing over bed410 mm
- Swing over cross-slide270 mm
- Distance centre tot centre900 mm
- Max longitudinal travel Z-axis325 mm
- Max cross travel X-axis200 mm
- Spindle coneA2-6
- Dia of spindle bore51 mm
- Power on the spindle11 kWt
- Number of speeds150 - 4000 rpm

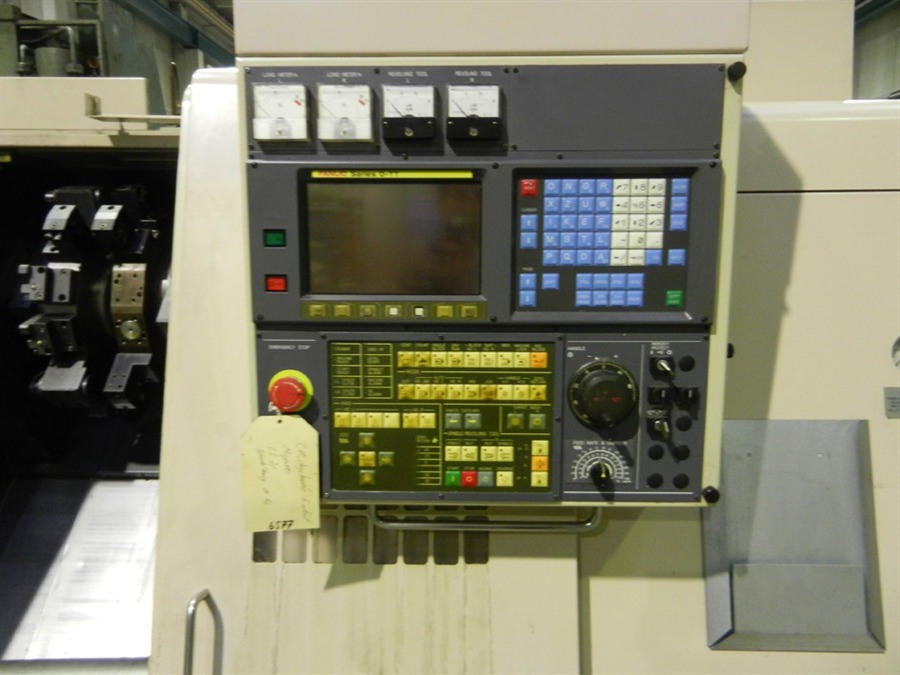

- CommandFanuc OTT
- Total power needed32 kWt - 56 kVa
- Length3450 mm
- Width2060 mm
- Height2000 mm
- Weight8000 kg

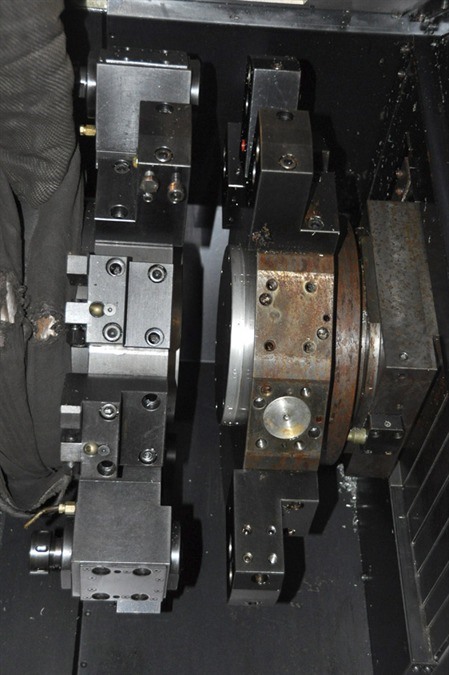

- Toolchanger2x
- Number of tools2x 12 driven tools
- - rotatingyes
Informazioni supplementari
Numero di magazzino: A.07 6987
