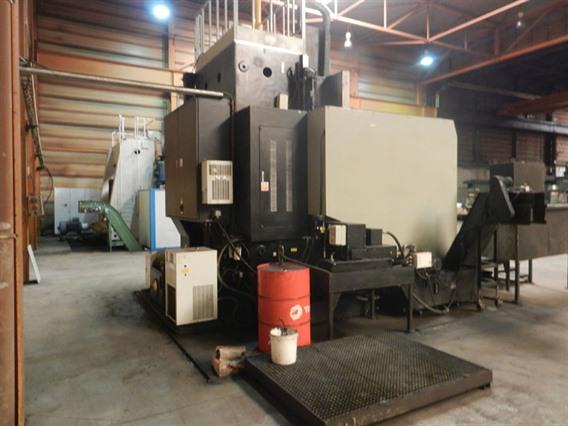

VTL dia 2100 x 1350 mm CNC
Informazione tecniche

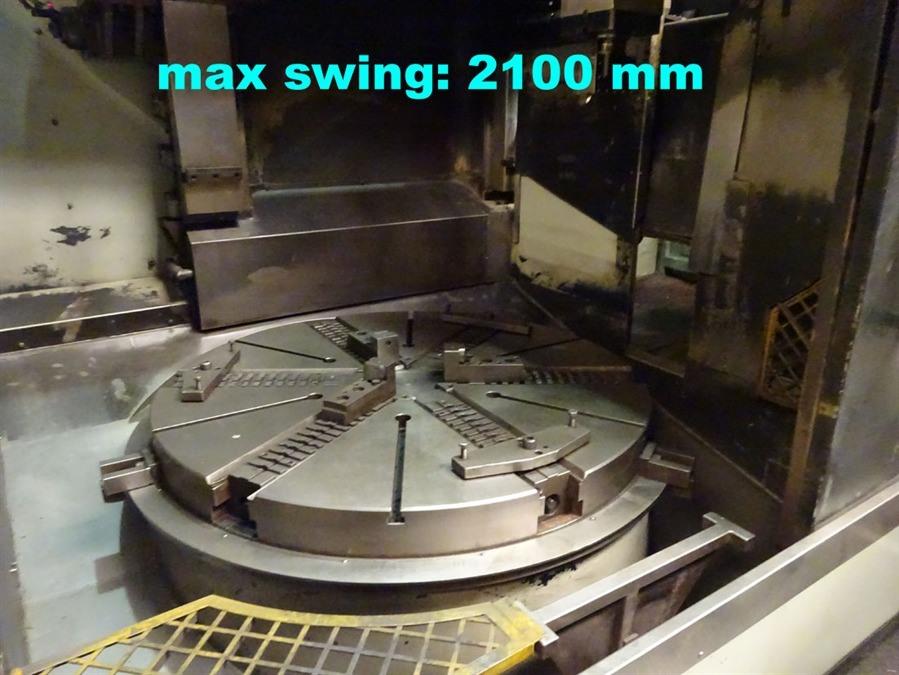

- Chuck dia.1600 mm
- Max turningdia -- passage2100 mm
- Power on the spindle45 kW
- CommandFanuc Oi
- Number of speeds2 > 256 rpm
- Power needed80 kVa
- Long 5050 mm
- Wide4500 mm
- Height3775 mm
- Weight36 ton
- Turretyes
- Qty Tools12x - BT50
Informazioni supplementari
Type VL-1600 ATC
Taiwan Quality!!!
X-travel: 1675 mm
Z-travel: 900 mm
Y-travel: 800 mm (in 100 mm increments)
max workpiece height: 1350 mm
max load on table: 8 ton
X feedrate: 12 000 mm/min
Z feedrate: 10 000 mm/min
cutting feedrate: 0,01 > 50 mm/rev
- chip conveyor
- 6 jaw hydraulic chuck
- auto balancing system
- airco for spindle gearbox
- atc magazine
- clamping system for crossrail
- oil/water separator
- hydraulic chuck dia 1200 mm
- high pressure cooling through spindle (20 bar)
- manual guide i for Fanuc Oi
- Tipo/Modello: dia 2100 x 1350 mm CNC
- Numero di magazzino: A.12 8478
- Categoria: [A] Torni
- Sottocategoria: [A.12] Torni verticali, tradizionali e CNC
- Il marchio: VTL
