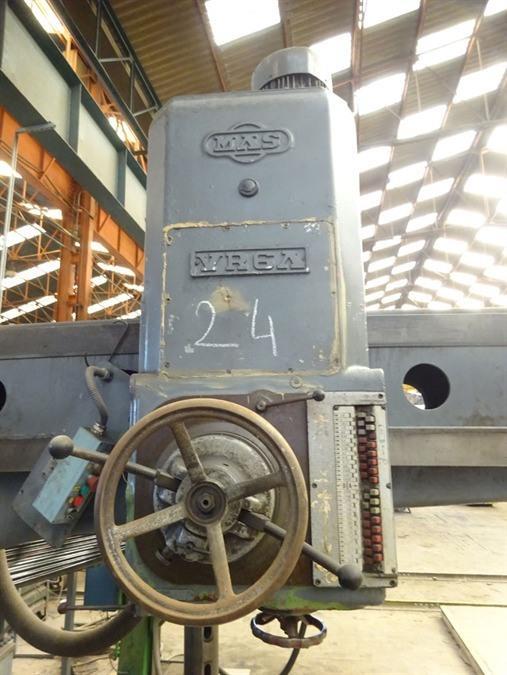

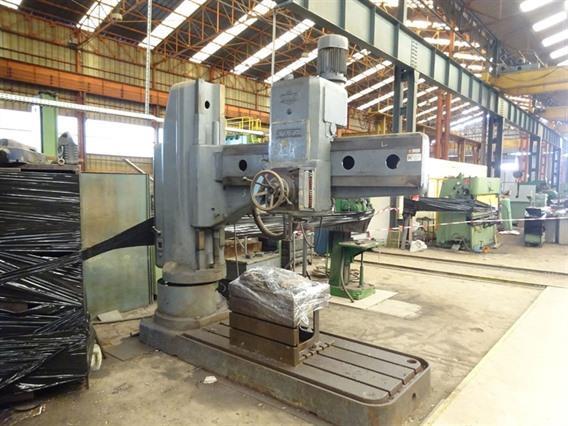

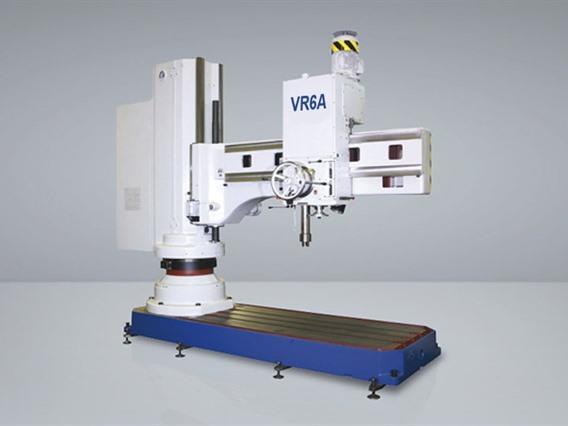

Trapani radiali Tos Mas VR6A Mk5

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Admission in drilling-spindle (morse)Mk5
Max drilling capacity60/80 mm
Base dimensions (1) Table dim (2) 2850 x 1100 mm
Longitudinal travel drilling-head (X-axis)1613 mm
Height-travel arm (Y-axis)950 mm
Min dist. round column--drillingsp (X-axis)440 mm
Max dist.round column -- drillingspindle2000 mm
Max drilling-depth380 mm
Speeds16-1400 rpm
Power on the spindle7,5 kW
Height3250 mm
Weight1300 mm
ACCESSORIES3900 mm
Cooling system5,8 ton

Informazioni supplementari

max distance between table and spindle: 1860 mm
Tipo/Modello: Mk5
Numero di magazzino: C.02 9251
Categoria: [C] Trapanatrici
Sottocategoria: [C.02] Trapani radiali
Il marchio: Tos Mas VR6A

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: C.02 9251

Scaricare tutte le foto in ZIP
