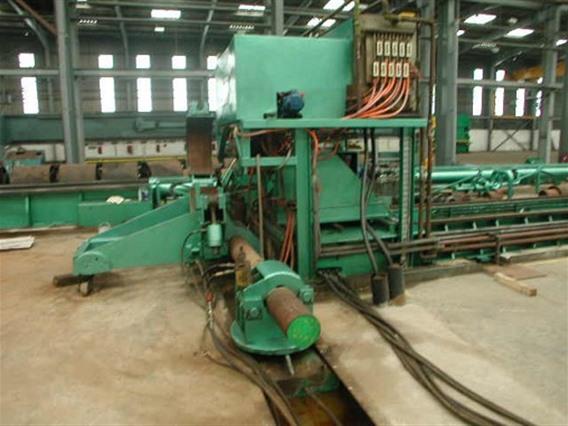

Gregson INDUCTIE-bend

Produkt dodany do ulubionych

Specyfikacja

Max pipe dia x sheetthickness760 x 24 mm
Max pipe dia with transformation850 mm
Min radius (arm n°1 -- arm n° 2)712 mm
Max radius (arm n°1 -- arm n° 2)7000 mm
Hydraulic power40 Ton
INDUCTION GENERATORRadyne3500TR1
Max thermal power350 kW
Thermal monitoringsinglepyrometer
Thermal recordingchart recorder
Thermal calibration3 monthly
Internal quenchingNo
L x W conveyor10 000 x1800
L X W bendingway-- x 1800 mm

Dodatkowe informacje

Also for profilebending ( diagonal profile = dia pipe) -- With 3rd roller max radius : 225 mm -- 10 moulds --Induction specifications see below
Typ/Model: INDUCTIE-bend
Stocknumber: Q.01a 2270 *04
Kategoria główna: [Q] Giętarki, Prostownice i Maszyny do pocieniania
Sub kategorii: [Q.01a] Inductie buisbuiginstallaties & Profielbuiginstallaties
Marka: Gregson

Stocknumber: Q.01a 2270 *04
