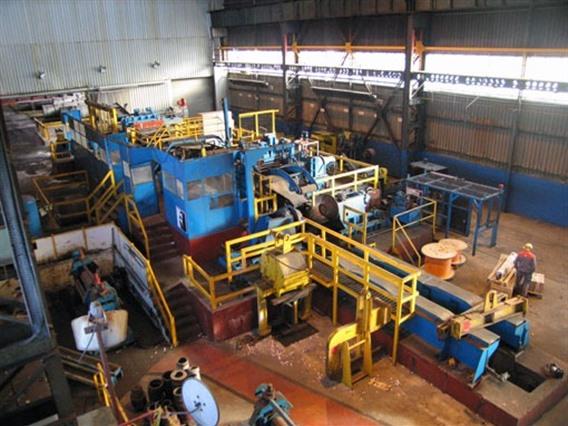

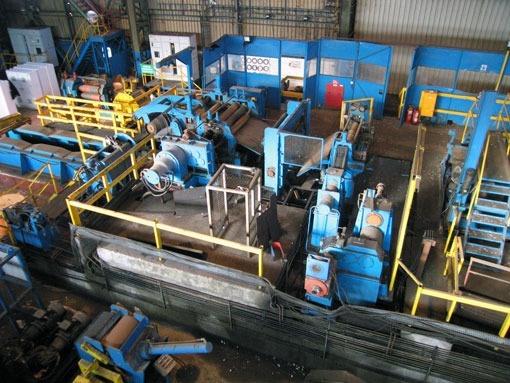

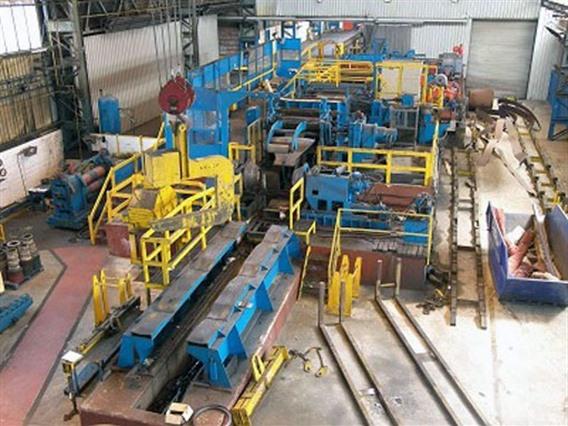

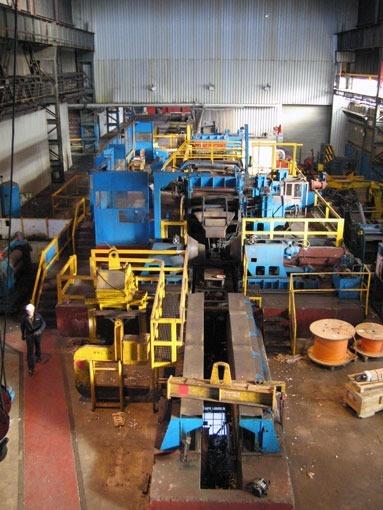

Durmech Heavy Duty Cold strip slitting line

Teknik Bilgiler

  • Max sheetwidth1500 mm
  • Sheetstrip thickness 10 mm (St 37)
  • Max weight coil25 Ton
  • Inner dia coilØ 500 mm
  • Min stripwidth60 mm
  • Speed (variable)75m/min
  • Total rated power150 HP (Recoiler)

Ek bilgi

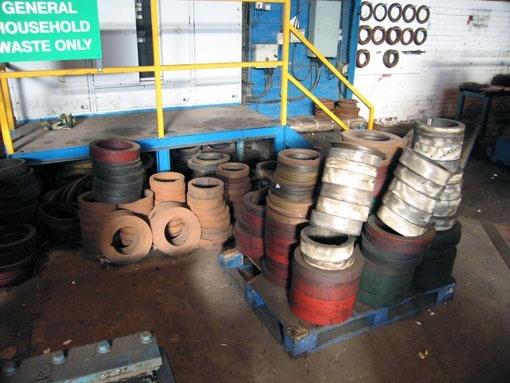

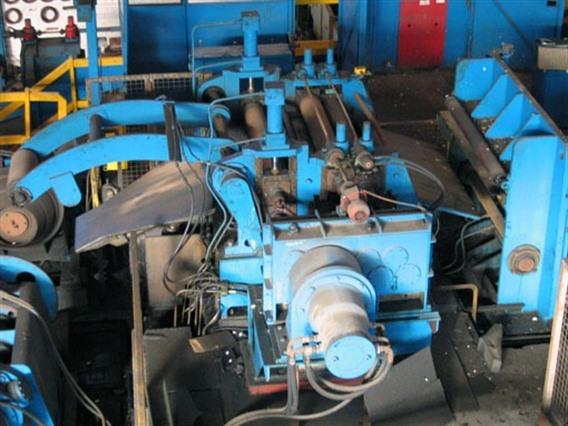

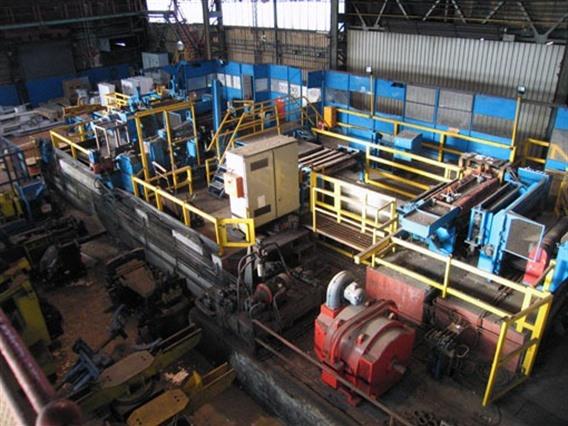

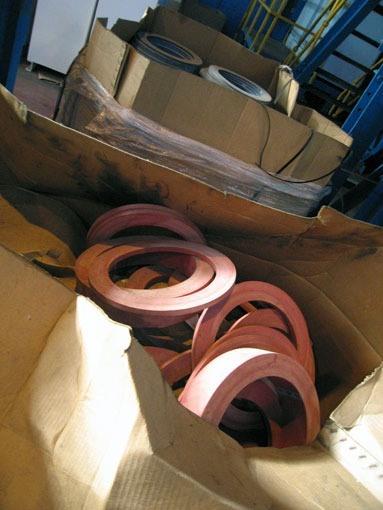

  • Cold strip slitting machine - Installed 1997 1500 mm x 10 mm max comprising (St 37) 3 position coil loading table with hydraulic coil transfer car Hydraulic twin cone decoiler with peeler and snubber roll Max coil weight 25 tonnes, 2000 mm max O.D. Feed and levelling roll stand (5 rolls Ø 200mm) DAC hydraulic shear (10 mm max) Slitting stand with feed rolls and slitter guides, 2 removable slitting stands (quick change) with driven arbors, shimless tooling system for 15 mm to 12.5 mm wide tools Max slitting speed 75m/min 2 scrap balers with twin cone coilers and scrap discharge conveyor (hydraulic opening) Loop pit or feed table, feed roller stand with cutting Shear 1500x10mm Hydraulic feed rolls and shear (10 mm) Two roll feed and hydraulic positioning table 20" recoiling mandrel with 150 HP drive (and spare motor), push off unit transfer car and unloading Capstan Hydraulic power pack Slithead: 30 kW (400V) Decoiler + Straightener ( hydraulic Driven): 50 kW (400V)

  • Tip/Model: Cold strip slitting line
  • Stok numarası: P.14 4329
  • Kategori: [P] metal plaka makası, üniversal metal yarma kesme makinesi, yarma, kilitleme ve testereleme
  • Alt kategori: [P.14] Afrolhaspel - slitlijn
  • Marka: Durmech Heavy Duty

Stok numarası: P.14 4329
