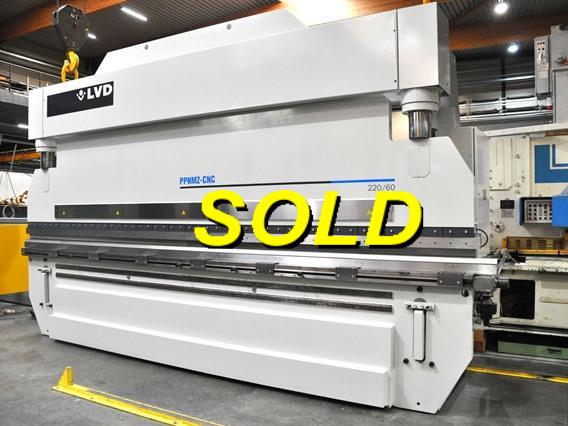

LVD PPNMZ - 220 ton x 6100 mm CNC

LVD PPNMZ 220 ton x 6100 mm CNC

Ürün favorilere eklendi

Teknik Bilgiler

Capacity x Max length220 ton x 6100 mm
BackgaugeCNC
Controltouchscreen graphic
Passage between uprights5050 mm
Max stroke250 mm
Max distance between table -- ram500 mm
Depth of throat300 mm
Table width 250 mm
Locking speed80 mm/sec
Working speed8 mm/sec
Returning speed45 mm/sec
Electric motor (power)15 kW
Length 6100 mm
Height3710 mm
Weight33,4 ton

Ek bilgi

5 axes: Y1 / Y2 / X / R / V
Bombation
Upper and lower hydraulic clamping
with standard set LVD tooling (knife 88° - one uni-V)
optional: eurotooling/amada

Cap: 6 mm x 6100 mm / 10 mm x 4100 mm
Tip/Model: 220 ton x 6100 mm CNC
Stok numarası: O.01 12844
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
Marka: LVD PPNMZ

Stok numarası: O.01 12844

Satılan

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
