Forest Line Flexiax 508 CNC X:1200 - Y:1200 - Z:1375mm
Teknik Bilgiler
- Max longitudinal travel X-axe1200 mm
- Max cross-travel Y-axe1200 mm
- Max travel Z-axe1375 mm
- Power on spindle22 kW
- Admission in millingheadISO 50
- Table size800 x 800 mm
- ControlSiemens 840C
- Length L -- R7100 mm
- Depth Fw -- Bw6000 mm
- Height3810 mm
- Number of tools80 positions
Ek bilgi

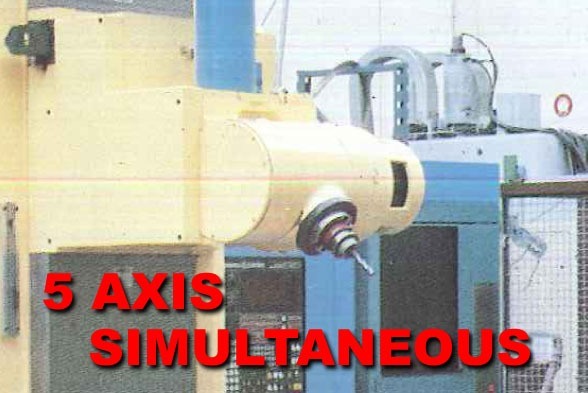

- 5 axes simultaneous

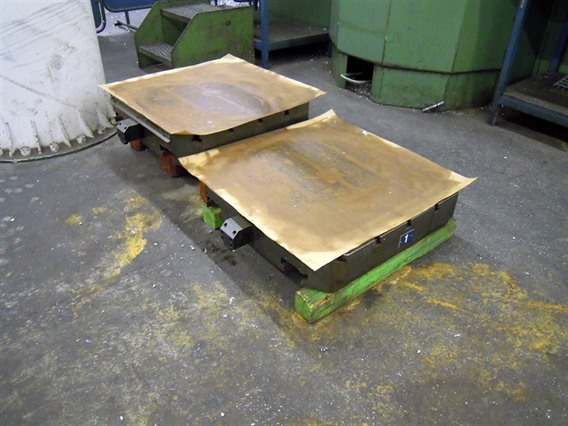

4 pallet changing system
+ Renishaw measuring system wireless
Indramat motors
Heidenhain rulers
Horizontal & Vertical
300 toolholders included with the machine
Click on the video below the thumbnails to see this type of milling head in action.
- Tip/Model: Flexiax 508 CNC X:1200 - Y:1200 - Z:1375mm
- Stok numarası: B.01 6436
- Kategori: [B] Freze makineleri
- Alt kategori: [B.01] Universele freesmachines conventioneel & CNC
- Marka: Forest Line
